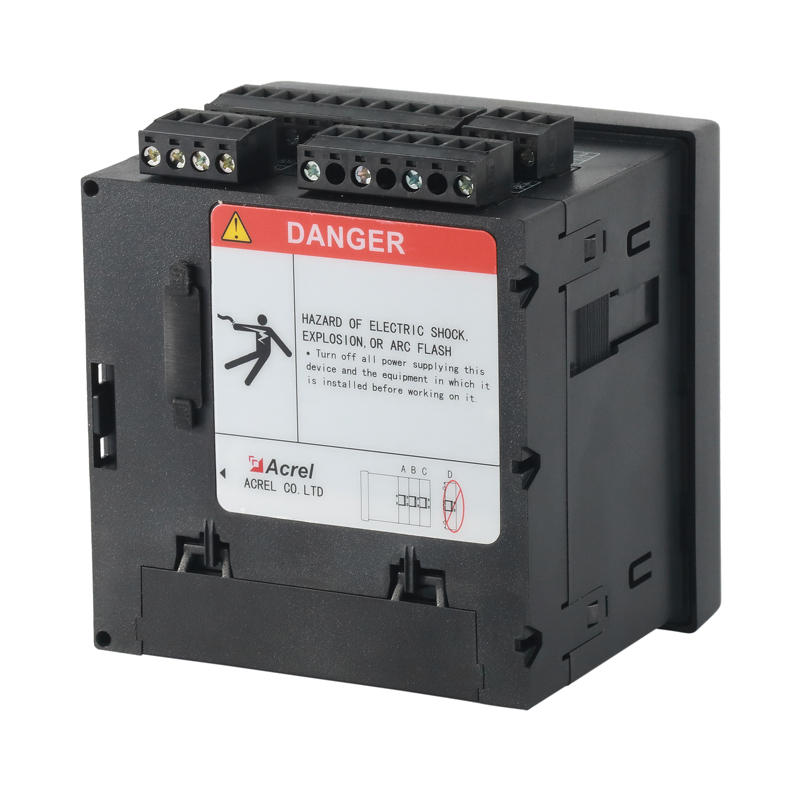

APM801 Three Phase High Accuracy Power Meter

Home  >  Products  >  Energy Management  >  APM801 Three Phase High Accuracy Power Meter

APM801 Three Phase High Accuracy Power Meter

APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.



8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Three-phase,U,I,kW, kWh, kVarh,  Hz, Cosφ
  • Four quadrant electrical energy
  • Real-time and maximum demand
  • Current voltage unbalance degree
  • Load current histogram display
  • A total of 66 kinds of alarm types, each type can record the most recent 16 alarm records, support extended records by TF card
  • 2DI+2DO
  • LCD display
  • Accuracy of Active power: 0.2s
  • RS485/Modbus
Panel Features






Wiring



Installation


Network Structure



Installation On-Site





  •
Package



MINIMUM PACKAGE





MINIMUM PACKAGE



Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.372Kg



WHOLE BOX PACKAGE



Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

14.5kG



PRODUCT HS CODE



 9028301400



Related Products
  • AKH-0.66/K-Φ Split Core Current Transformer For Cable
  • AMC72L-E4/KC Three-phase AC Multi-function Panel Energy Meter
  • AMC96L-E4/KC Three Phase AC Multi-function Panel Energy Meter
  • Acrel APM830 Three Phase Multi-function Panel Power Meter /Energy Analyzer
  •
  •
  •
  •
Data Sheet
Product Functions

Function

Function description

APM800
(class 0.5s)

APM801
(class 0.2s)

APM810
(class 0.5s)

APM830
(class 0.2s)

Parameters

All parameters

■

■

■

■

Four-quadrant energy

■

■

■

■

Multi-rate energy

□

□

□

■

Pulse output of energy

Active/reactive

■

■

■

■

Demand

Real-time and maximum demand of I, P, Q,S (with time)

■

■

■

■

Extreme value statistics

Extremum of I, UL-L, UL-N, P, Q, S, PF, F, THDi, THDu in this month and last month (with time)

 ■

 ■

 ■

 ■

Power quality

Unbalance of I,UL-L,UL-N

■

■

■

■

Voltage phase angle,current phase angle

■

■

■

■

Total and 2nd-63rd harmonic content of voltage and current

-

-

■

■

Voltage crest factor

-

-

■

■

Telephone waveform factor

-

-

■

■

Current K-factor

-

-

■

■

Positive sequence, negative sequence, zero sequence voltage and current

-

-

-

■

Fundamental voltage and current

-

-

-

■

Waveform

Waveform trace display

-

-

-

■

Fault waveform record

-

-

-

■

Alarm

A total of 66 kinds of alarm types, each type can record the most recent 16 alarm records,support extended records by TF card

 ■

 ■

 ■

 ■

Event

Record the most recent 128 event records, support extended records by TF card

 ■

 ■

 ■

 ■

Communication

RS485(Modbus-RTU)

■

■

■

■

I/O

2DI+2DO

■

■

■

■



Optional functions

MD82

8DI+2DO

■

■

■

■

MLOG

TF card

■

■

■

■

MA84

8AI+4AO

■

■

■

■

MCM

1 RS485(Modbus-RTU),support master mode or slave mode

 ■

 ■

 ■

 ■

MCMP

1 Profibus(Profibus-DP)

■

■

■

■

MCME

1 Ethernet(Modbus-TCP,HTTP,DHCP)

■

■

■

■



Note：① Accuracy of 2-42nd harmonic measurement in the frequency range of 45~65Hz is 1%, accuracy of 43-63rd harmonic measurement in frequency range of 50Hz is 2%.

          ② “■”:standard “-”:No “□”:Optional



Technical Parameter

Technical Parameter

Value

Signal

Connection

3 phase 3 wire, 3 phase 4 wire

Frequency

45~65Hz

Voltage

Rated value: AC 100V,110V,400V,690V

Overload: 1.2 times rated value(continuous); 2 times rated value(1 second)

Power consumption: < 0.5VA (per channel)

Current

Rated value: AC 1A, 5A

Overload: 1.2 times rated value(continuous); 10 times rated value(1 second)

Power consumption: < 0.5VA (per channel)

Measurement accuracy

Voltage,current and power

Class 0.5S (APM800,APM810)

Class 0.2S (APM801,APM830)

Active power

Reactive power

Class 2(APM800, APM810), Class 0.5(APM801,830)

Harmonic

1%(2~42nd),2%(43~63rd)

Switch inputs

Passive contact inputs, built-in power supply

Relay outputs

Contact type: open contact in main part, changeover contact in module Contact capacity：3A/AC 250V 3A/DC 30V



Pulse output of energy



Output mode: Optocoupler pulse with open collector Pulse constant:4000(5A),8000(1A) imp/kWh

Analog outputs

DC 0~20mA,4~20mA,0~5V,1~5V output, accuracy class 0.5%, load resistance ≤ 500Ω

Analog inputs

DC 0~20mA,4~20mA,0~5V,1~5V input, accuracy class 0.5%

Storage card

Standard capacity:4G,TF card up to 32G capacity

Communication

RS485(Modbus-RTU)

Profibus(Profibus-DP)

Ethernet(Modbus-TCP,HTTP,DHCP)



Auxiliary power supply

Operating range: AC/DC 85V~265V or AC/DC 115~415V(P2)

Power consumption: Power consumption of the main part ≤ 15VA

Safety

Insulation resistance

>100MΩ

Electromagnetic compatibility

IEC 61000 standard (Level 4)

Protection level

IP54(Front)





Technical Parameter

Value

Environment

Operating temperature: -20 °C ~ +65 °C

Storage temperature: -20°C~+70°C

Relative humidity: ≤95%(no condensation)

Altitude: ≤2500m
