Acrel Wireless Temperature Sensor Application in South Africa

Abstract: With the development power industry,the requirements for the safety and reliability of equipment are getting higher and higher. In this situation,ACREL wireless temperature monitoring system is designed for high voltage device. This technology is to install the temperature sensor with built-in battery or temperature sensor by current sensing and wireless transmitter module at each temperature measurement point. The sensor periodically sends the temperature measurement data wireless to the receiving unit, and the receiving unit can be connected to the network to send the data to the master station, thereby realizing electrical temperature monitoring of a regional system.

Keywords: Wireless temperature sensor, wireless temperature monitoring system, 470Mhz wireless temperature sensor

Project Overview

Chauvin is located in ANTONY Cedex，France. The project is mainly used in substation in the substation in South Africa. The related products models are 2 PCS ATC450-C, dozens of wireless temperature sensors including model ATE400 and ATE100.

Wireless temperature monitoring device Introduction

Acrel on-line temperature measurement device is suitable for the temperature detection of high and low voltage switches, circuit breaker contacts, high voltage cable middle heads, low voltage and high current equipment, to prevent contact caused by oxidation, loosening and other factors during operation Excessive contact resistance and heat generation become a safety hazard, timely, continuous and accurate reflection of equipment operating status, and equipment safety.

Wireless temperature monitoring solution

2.1  Wireless temperature sensor

2.1.1 Wireless temperature sensor by CT sensing

• ATE400
• Small size;
• Wireless transmit;
• Wireless transmission distance, 150 meters;
• Fase sampling frequency,15s;
• CT-powered, more than 5A starting current;
• Widely temperature measuring range, -40℃~125℃.

2.1.2 Wireless temperature sensor powered by battery

1) ATE200

• Wireless transmit;
• Wireless transmission distance, 150m;
• Fase sampling frequency, 25s;
• Battery -powered, more than 5 years;
• Widely temperature measuring range, -40℃~125

2)TE100

• Wireless transmit;
• Wireless transmission distance, 150m;
• Fase sampling frequency, 25s;
• Battery -powered, more than 5 years;
• Widely temperature measuring range, -40℃~125℃.

3）ATE100M

• Wireless transmit;
• Wireless transmission distance, 150m;
• Fase sampling frequency, 25s;
• Battery -powered, more than 5 years;
• Widely temperature measuring range, -40℃~125℃.

2.2 Receiver/Display Unit

2.2.1 Receiver

1)ATC600-C

• Wireless transceiver;
• Maximum measuring 240 points;
• 1 RS485 serial communication, Modbus-RTU;
• 2 alarm relays;
• Power supply adapt with AC/DC220V, AC/DC110V.

2)ATC450-C

• Wireless transceiver;
• Maximum measuring 60 points;
• 1 RS485 serial communication, Modbus-RTU;
• Power supply adapt with DC24V

2.2.2 Display Unit

1) ARTM-Pn

• Wireless temperature measurement, maximum measuring 60 points;
• U, I, P, Q, f, Ep, Eq measurement；
• 4 digital inputs;
• 2 alarm relays;
• LCD display;
• Power supply adapt with AC220V, DC220V, DC110V, AC110V;
• 1 RS485 serial communication, Modbus-RTU.

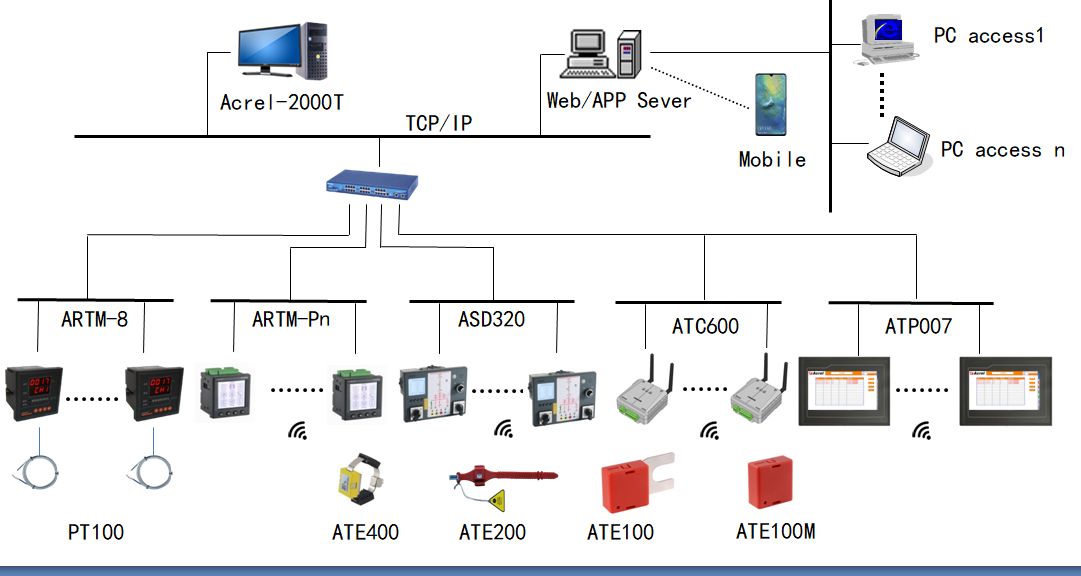

Network Structure

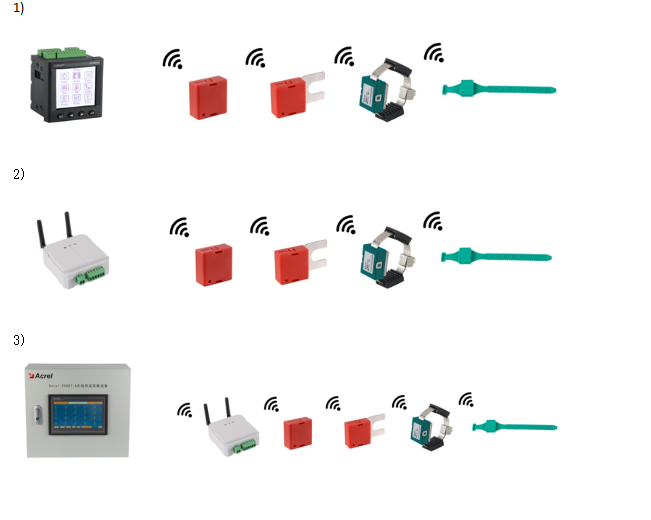

Typical Solution

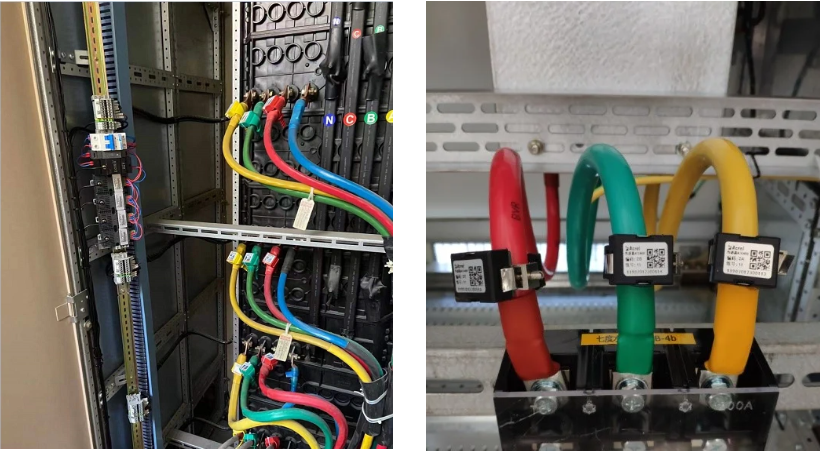

On Site Photos
