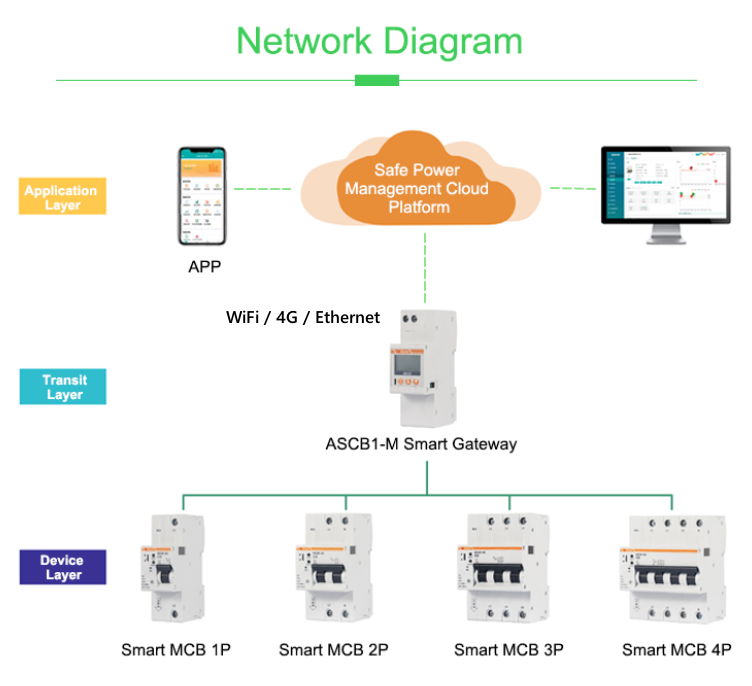

ASCB1 series intelligent miniature circuit breakers (hereinafter referred to as intelligent miniature circuit breakers) are used in low-voltage terminal power distribution networks in industrial, commercial, civil buildings and infrastructures in indoor buildings and similar places. The intelligent miniature circuit breaker is used in conjunction with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current,power, temperature, leakage, energy consumption, etc. , fault location and other functions.This series of products can choose single pole, 2 pole,3 pole and 4 pole.
- Home
- Solutions
- Products
- about us
- News
- Contact Us

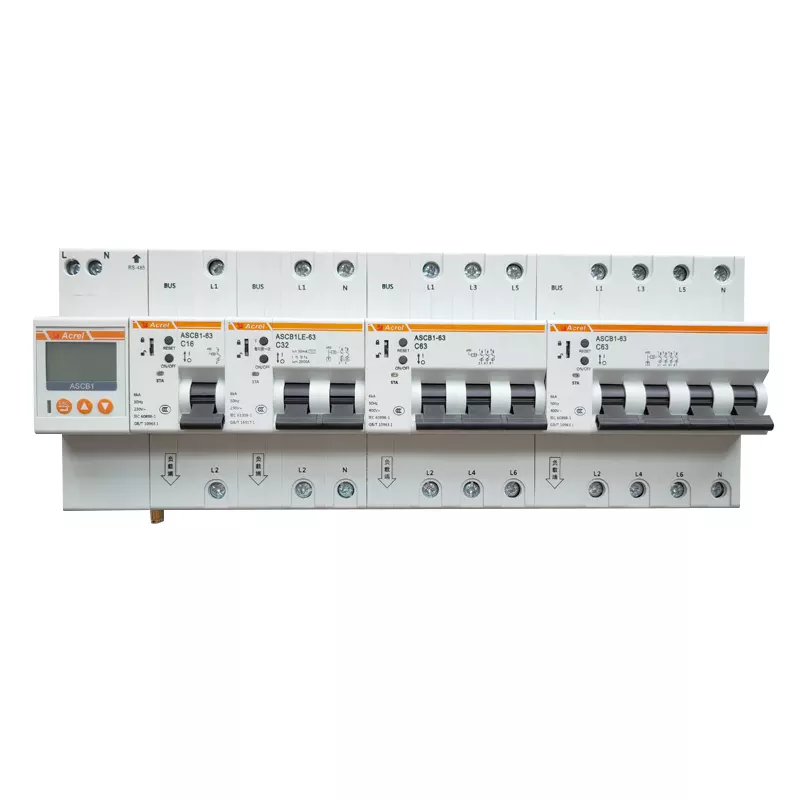

ASCB Smart Circuit Breaker
ASCB Smart Circuit Breaker
ASCB series intelligent miniature circuit breakers (hereinafter referred to as intelligent miniature circuit breakers) are used in low-voltage terminal power distribution networks in industrial, commercial, civil buildings and infrastructures in indoor buildings and similar places.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Overview
Parameter features
Function

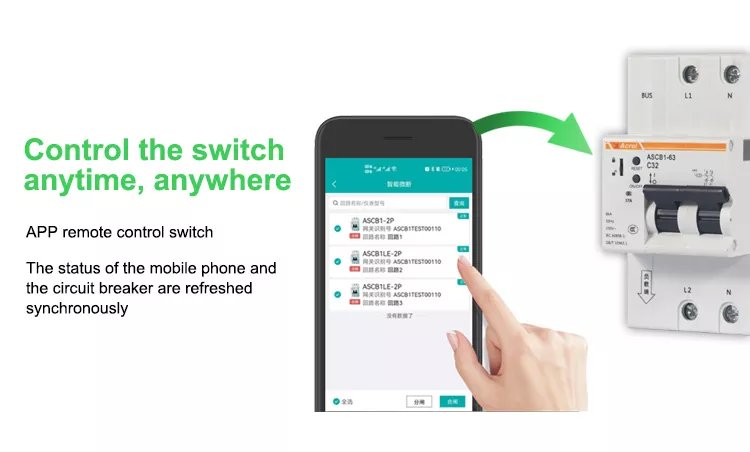

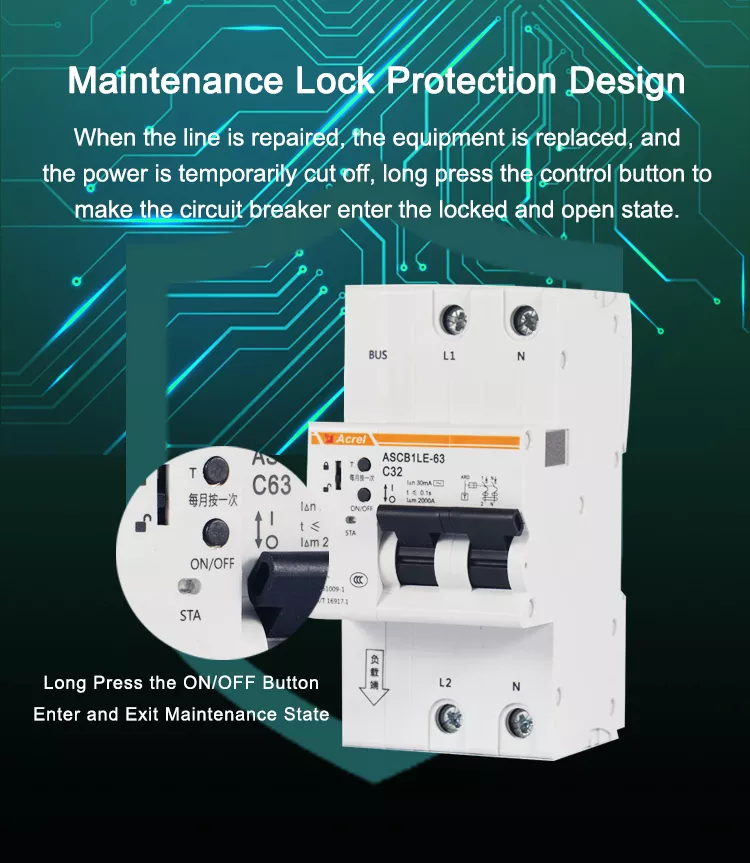

Monitor parameters such as voltage, current, power, energy and temperature in real time protection functions such as overvoltage, undervoltage, overload, short circuit, overcurrent, and overtemperature local manual push rod, local electric control, and local locking , remote control, timing control and other control functions rail type installation, optional pole number 1P/2P

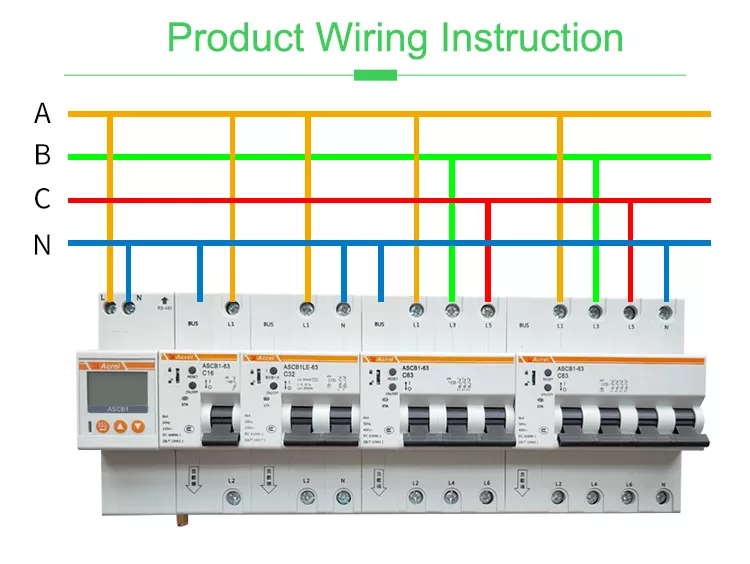

Wiring and Installation
1) The device is suitable for standard 35mm rail type installation. When installing, just clip the device into the rail and fix it
with a buckle .

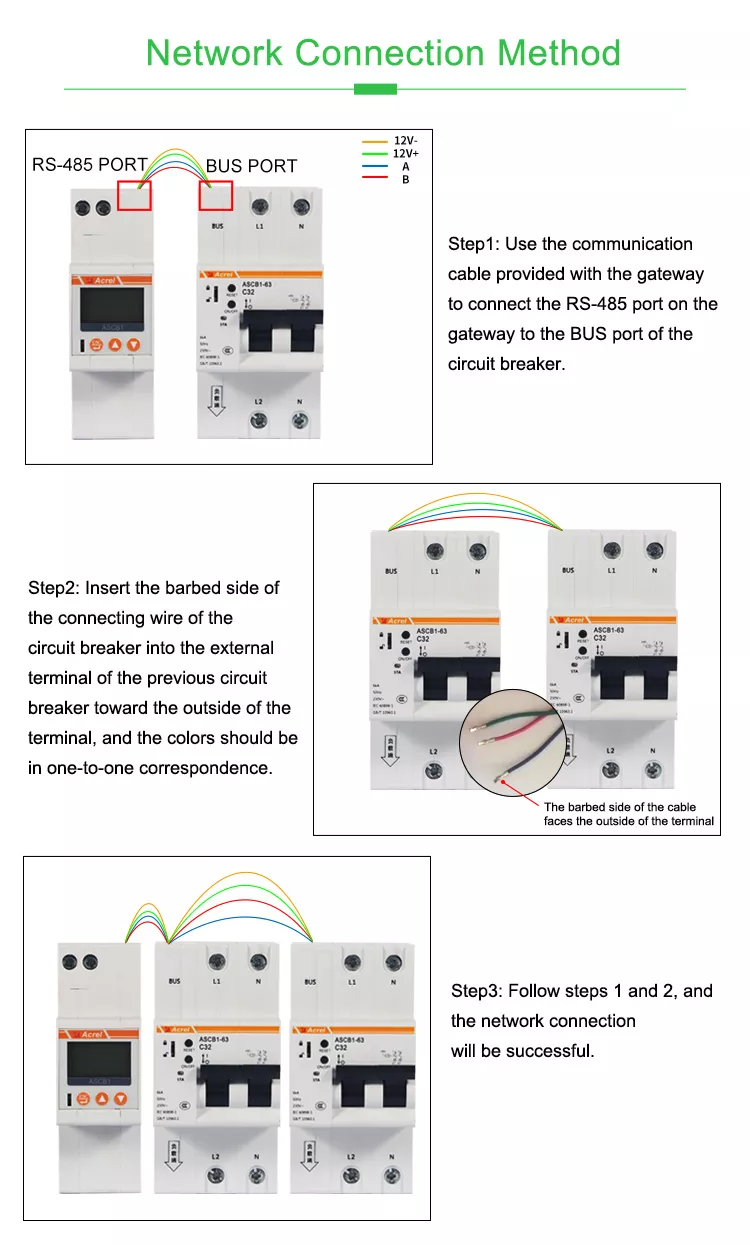

2) According to the actual power distribution management and line laying design requirements, select and use IoT modules and electrical boxes that meet the needs
The specifications of the box are assembled and installed in the order of the modules shown in the figure, and each module is connected by a special 8PIN data cable made by the manufacturer.
3) The circuit breaker should be installed vertically. When the handle is in “/OFF”, the contacts are disconnected. When the
handle moves upward, the contacts move in the closing direction;
with a buckle .
2) According to the actual power distribution management and line laying design requirements, select and use IoT modules and electrical boxes that meet the needs
The specifications of the box are assembled and installed in the order of the modules shown in the figure, and each module is connected by a special 8PIN data cable made by the manufacturer.
3) The circuit breaker should be installed vertically. When the handle is in “/OFF”, the contacts are disconnected. When the
handle moves upward, the contacts move in the closing direction;
Application

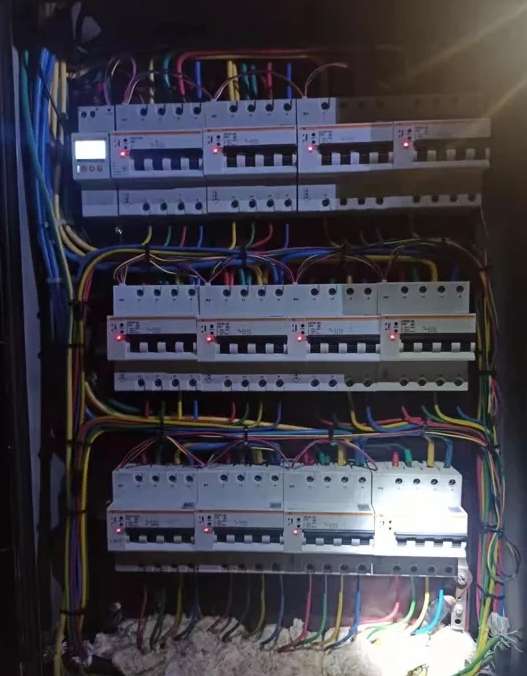

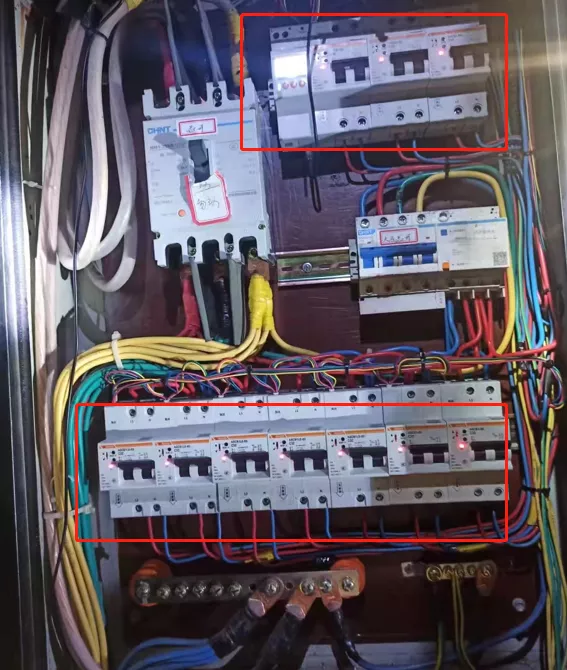

Installtion on site

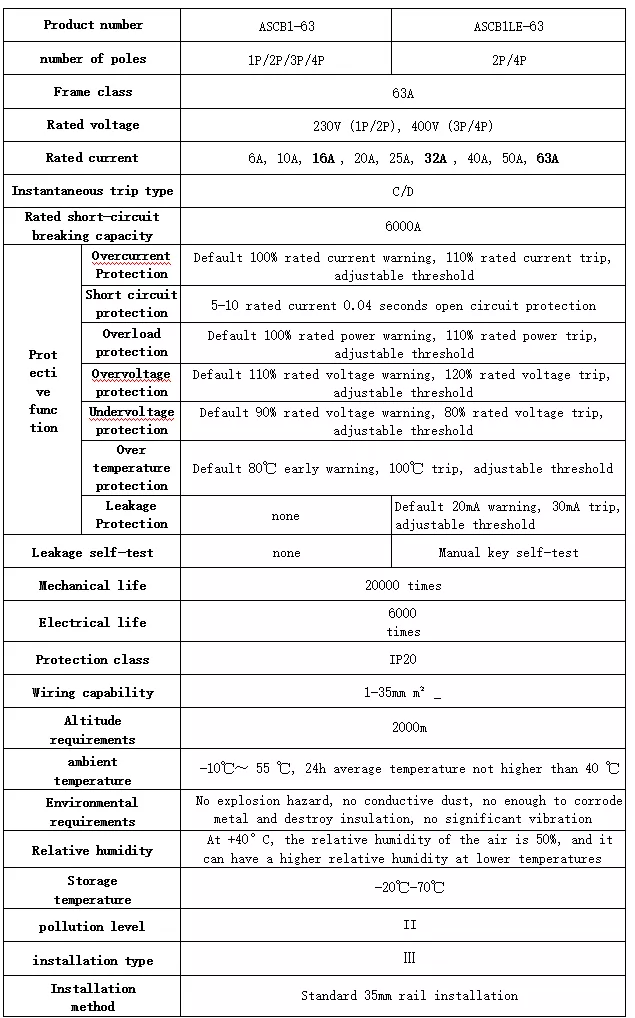

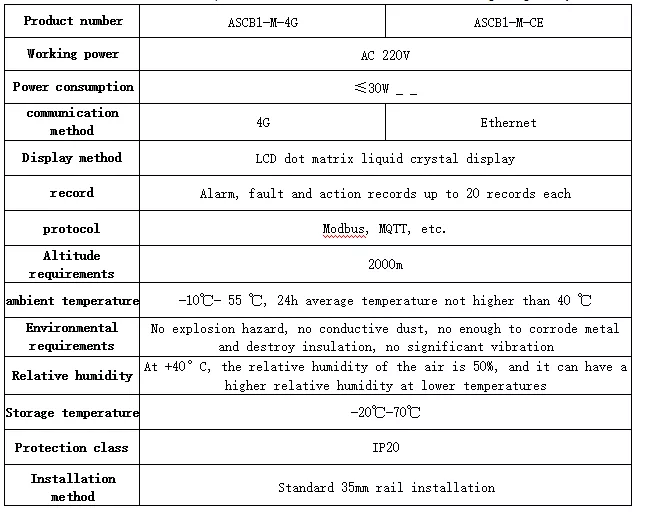

Parameters

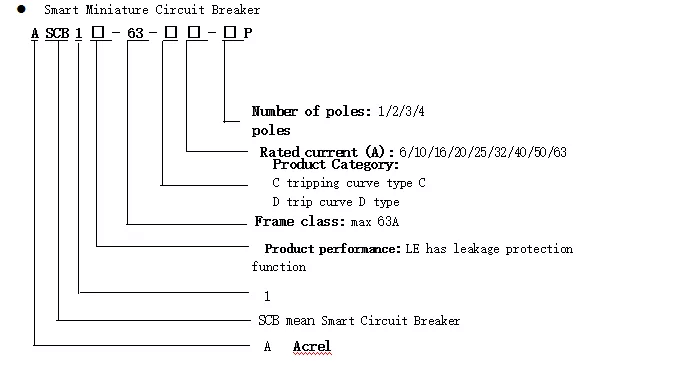

Major Characteristics
