GGF Medical Isolation Power Supply Cabinet

Home > Products > Medical/Industrial IT insulation Devices > GGF Medical Isolation Power Supply Cabinet

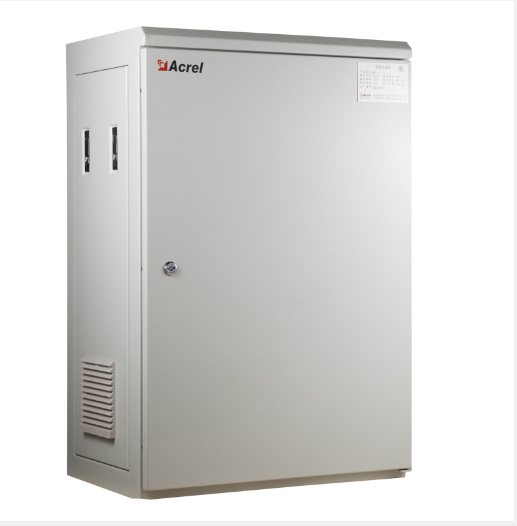

GGF Medical Isolation Power Supply Cabinet

Medical isolation power distribution cabinet is designed for medical group 2 power supply requirements .Insulation monitoring device installed in IT system. Each output circuit has a circuit breaker with short circuit protection function; the output circuit in TN-S system has a circuit breaker with leakage protection, Products are divided into GGF-O series three-phase isolated power cabinet,GGF-I series single-phase isolated power supply cabinet, according to the number of input voltage phases. the products meet IEC60364-7-710:2016 Electrical installations of buildings—Part 7-710：Requirements for special installations or locations—Medical locations and IEC 61439-2:2011 Low-voltage switchgear and control gear assemblies—Part2：Power switchgear and control gear assemblies.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Suitable for distribution system in group 2 medical location
Using Q235A High Quality Cold Rolled Steel Plate
Louver type heat dissipation fan
Various installation types
IP31
Rated Capacity:3.15/5/6.3/10KVA;3.15/5/6.3/10KVA
Rated frequency:50/60HZ
Rated voltage AC220V/AC380V

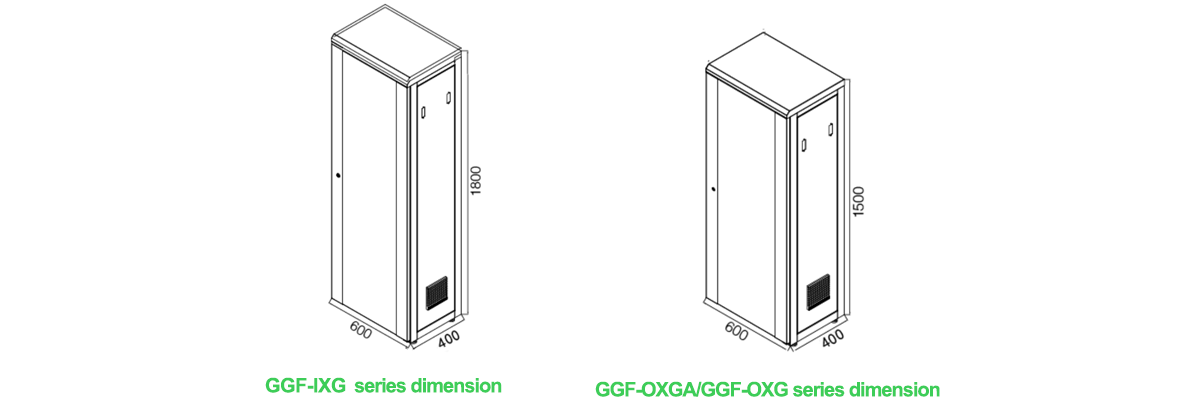

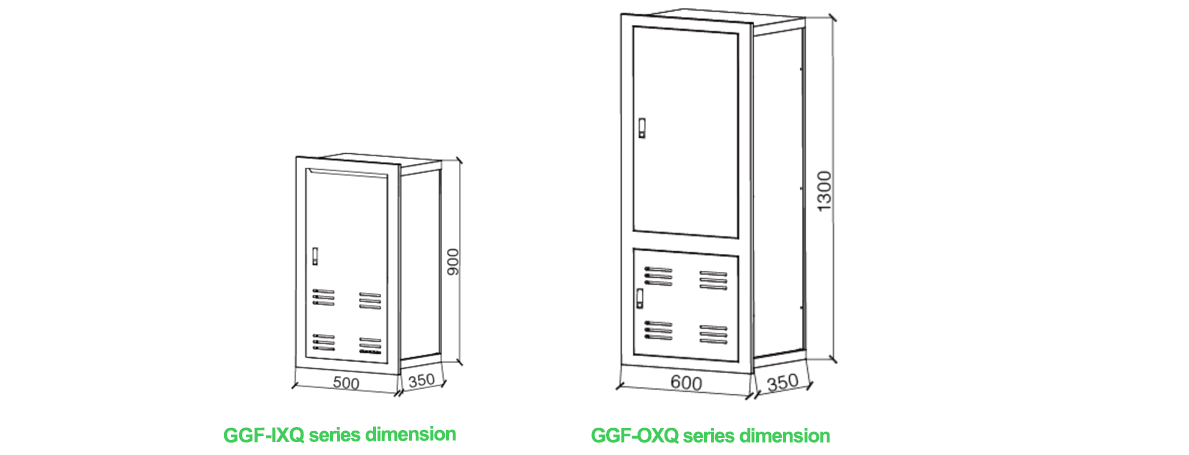

Dimension(Unit:mm)

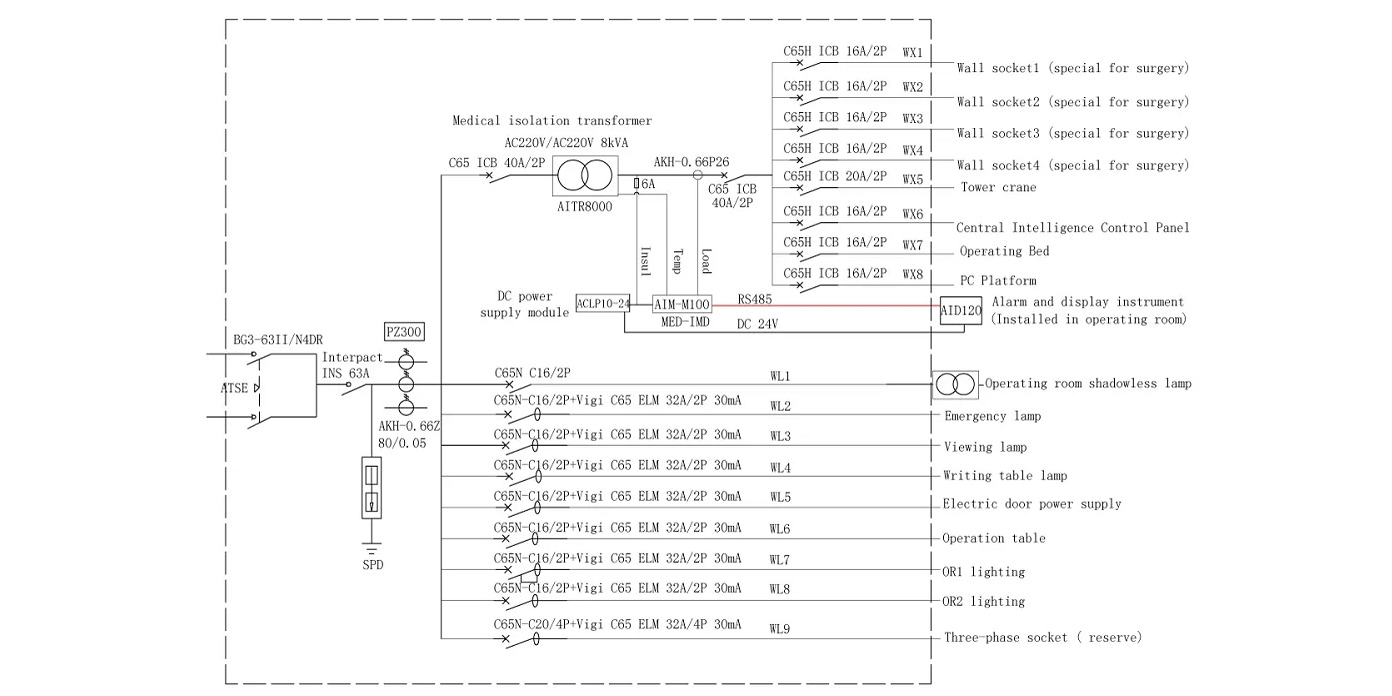

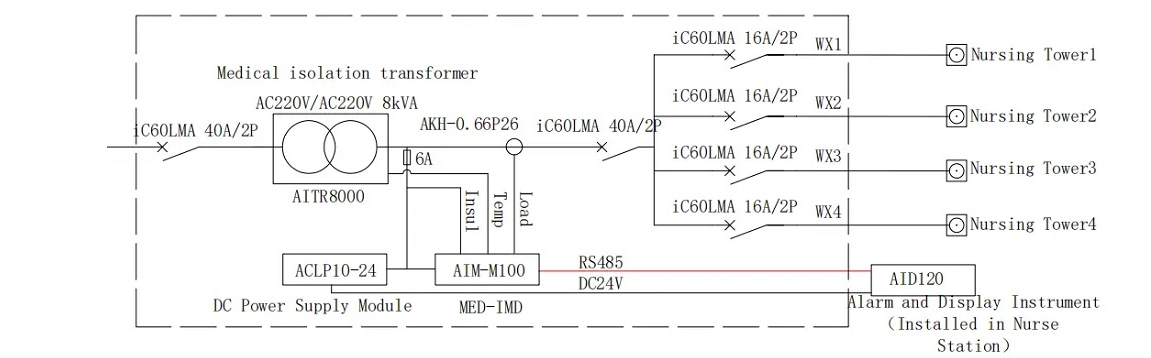

Diagram

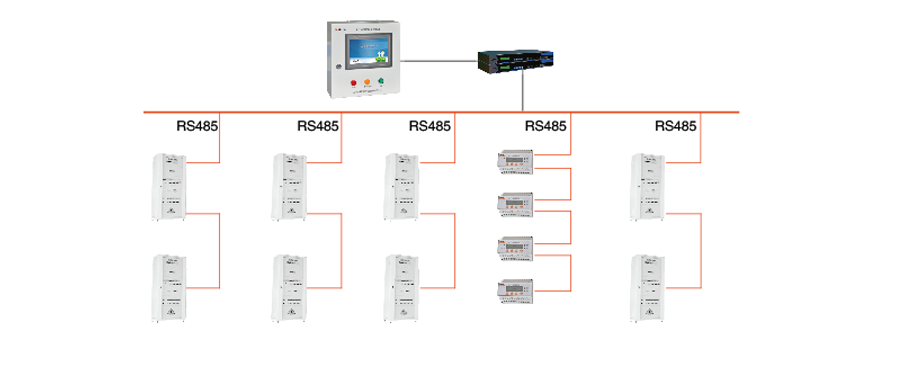

Connection

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

Technical parameters	GGF-IXG	GGF-IXQ		GGF-OXF	GGF-OXG	GGF-OXQ	GGF-OXF
Rated voltage	220V AC				380V/220V AC
Rated Capacity	3.15/5/6.3/10KVA		---		3.15/5/6.3/10KVA		---
Rated frequency	50/60HZ
Distribution circuit	IT System:4 or 5 AC220V(can be customized)				IT System:8 AC220V(can be customized)
	----				TN-S Systems:
Protection level	IP31	IP34D			IP31	IP34D
Installation	floor-standing	Embedded			floor-standing	Embedded
Inlet and outlet	Bottom	Both bottom and top have access lines			Bottom Inlet and bottom outlet	Both bottom and top have access lines
