BR-AI Series Rogowski Coil Transducer

Home  >  Products  >  Power Sensor  >  BR-AI Series Rogowski Coil Transducer

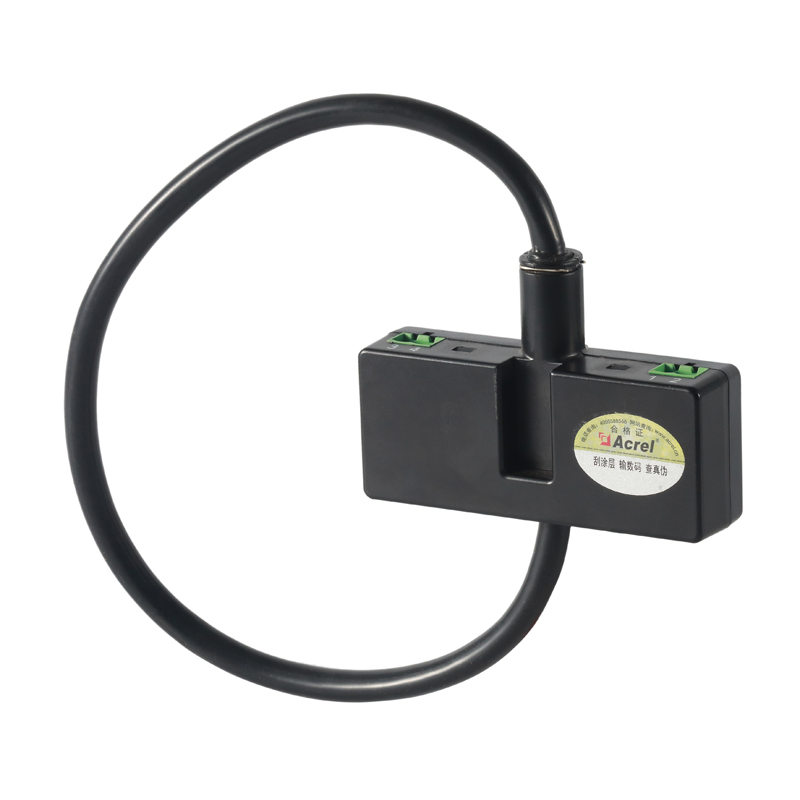

BR-AI Series Rogowski Coil Transducer

Rogowski coil and RMS measurement,Super-current measurement, direct measurement up to 30000A, Overload: 1.2 times of rated value.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Rogowski coil and RMS measurement
  • Super-current measurement, direct measurement up to 30000A
  • Overload: 1.2 times of rated value
  • Application:Industrial automation,Metallurgical and electroplating

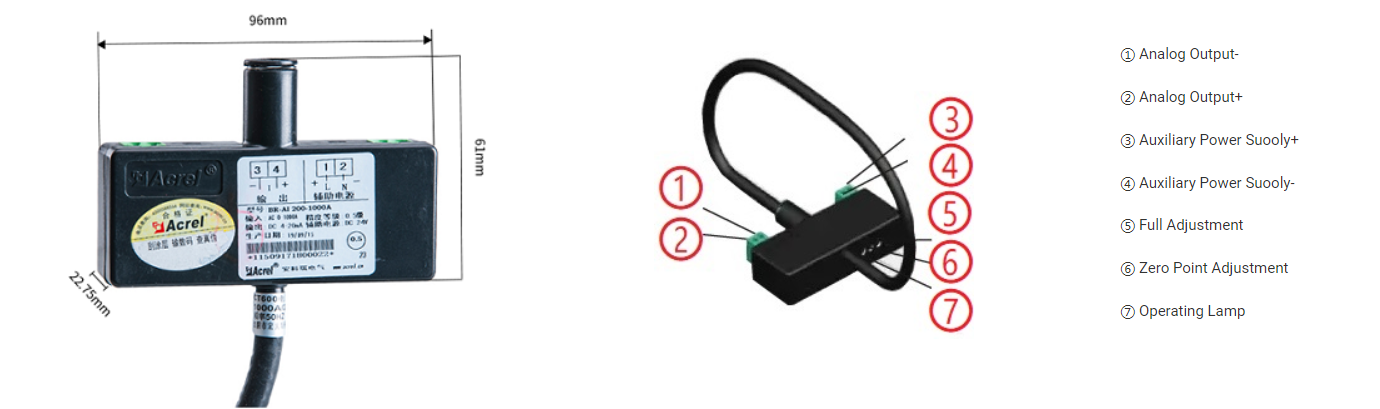

Panel Features

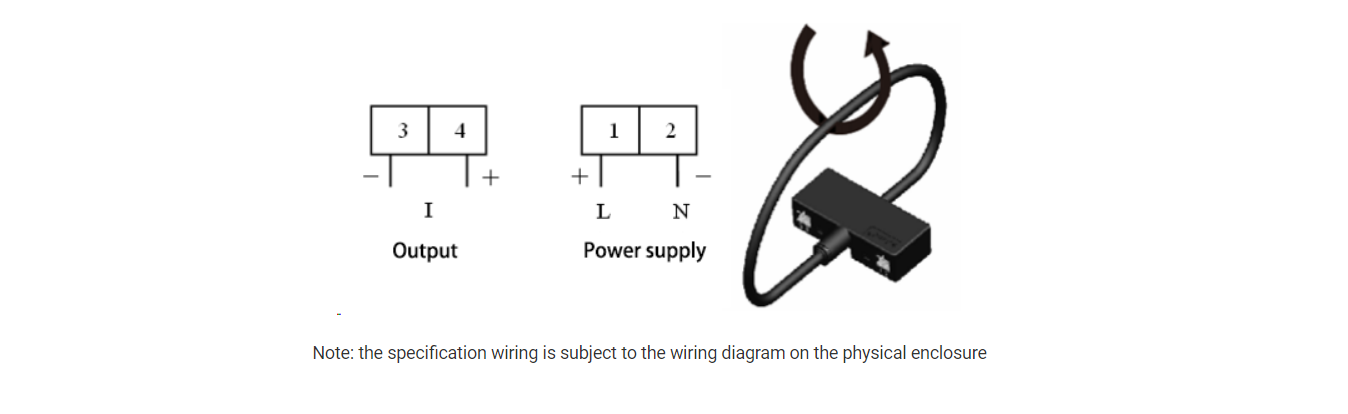

Wiring

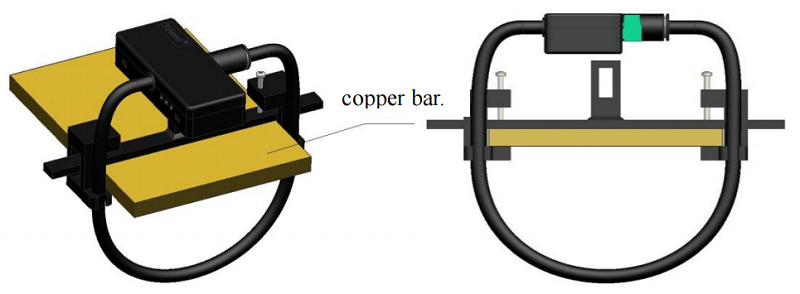

Installation


Application



Related Products
  • BD-AI Series Single Phase Current Transducer
  • AHKC-EKB Series Split Core Hall Effect Current Transducer
  • ADW220 Lora Multi Channel Energy Meter
  • AKH-0.66K Split Core Current Transformer
  •
  •
  •
  •
Data Sheet

Auxiliary Power

DC24V

Consumption

≤1W

Length of Rogowski

350mm

370mm

450mm

600mm

Input

Current

0-(200-1000)A

0-(1200-2000)A

0-(2500-5000)A

0-(6300-30000)A

Output

Nominal

Value

DC4-20mA

Load Resistance

≤500Ω

Accuracy

0.5%

Response Time

≤500ms

Temperature

Operation:-10-+55℃ Storage:-25+70℃

Installation

Bracket

Standards

GB/T 13850
