BR series Rogowski Coil

BR series Flexible Roche coil is a highly sensitive flexible current sensor, which can be directly integrated with portable equipment such as power analyzer. Suitable for energy consumption monitoring, high frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Excellent linearityHigh dynamic range, 0.1A to 500KA
Strong overload capacity
Little interference from adjacent conductors
No open circuit high pressure hazard
zero power consumption
Small position error
Soft and light, easy to install
Wide bandwidth range
IP65
Open the joint with one hand

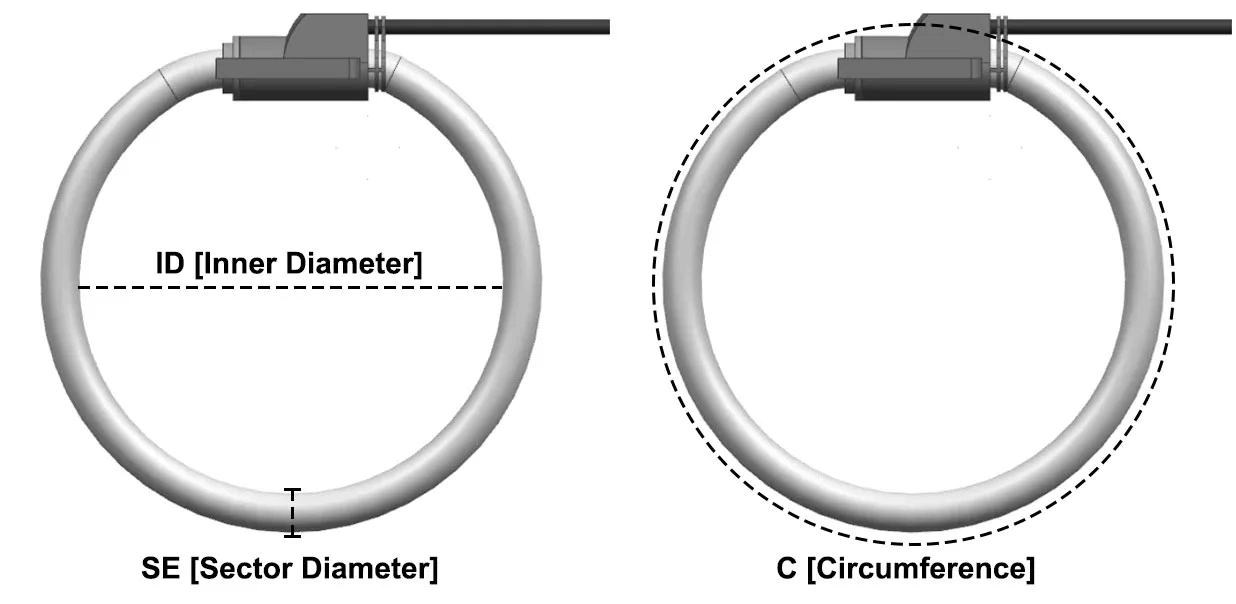

Display

Conductor position	Error（%）
Close joint	＜0.5%
Close to inner coil edge	＜1%

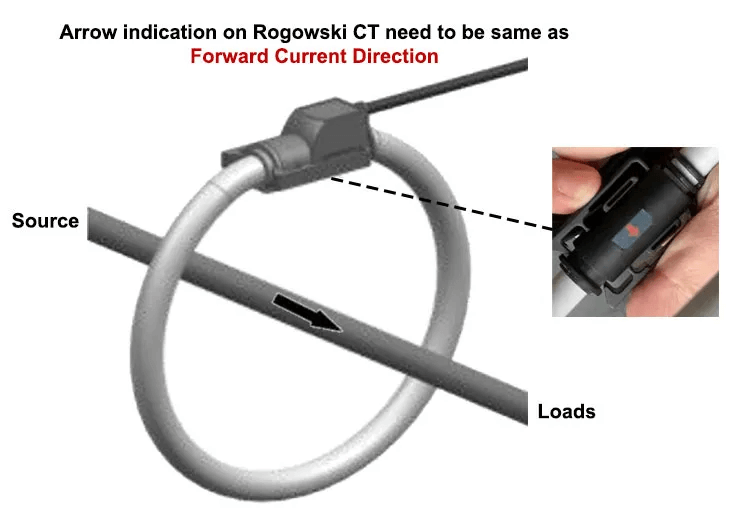

Wiring

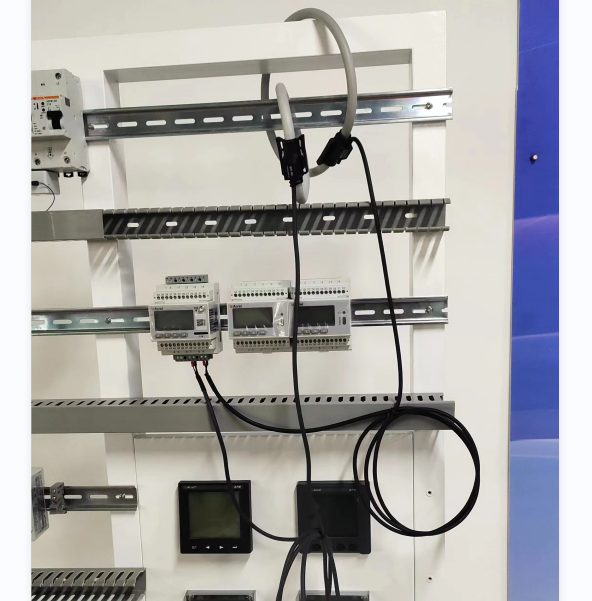

Photos on site

Data sheet

Main parameters

Model	BR-90	BR-150	BR-200
Length	300mm	500mm	600mm
diameter	90mm	150mm	200mm
Current	≤500kA
weight	100 - 500g
Coil resistance	50 - 500 Ω
Max current	500kA
Section	12mm
Signal line length	Standard 2m，customized available
CT	200±0.5%mV/kA@50Hz
Error	±1%
OA output	≤1mV
Angle difference	≤0.5°
Linear	±0.2%
Width	1Hz - 10kHz
Working temperature	-40℃ - 80℃
Storage temperature	-50℃ - 90℃
flame retardant	IEC-60332-1-2
shield	Coil 100%, signal cable 100%
