BD-AI Series Single Phase current Transducer

Home  >  Products  >  Power Sensor  >  BD-AI Series Single Phase current Transducer

BD-AI Series Single Phase current Transducer

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Analog Output DC 0-5V/0-10V/0-20mA/4-20mA
  • The input and output withstand voltage can reach 2000V
  • Full analog circuit mode is adopted
  • High input impedance,Load resistance range>300Ω

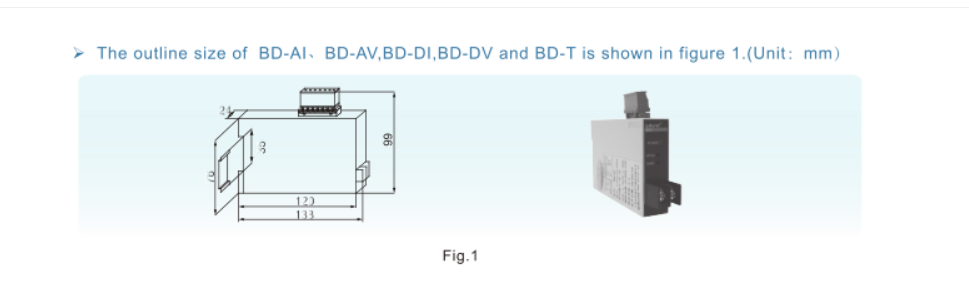

Dimension




Wiring



Application





Related Products
  • PZ72L-DE DC Panel Energy Meter
  • AKH-0.66/K-Φ Series Split Type Current Transformer
  • AMC16-DETT Multi Circuit DC Energy Meter
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Different Specification Parameters

Model Name

Measurement

Input

Output

Power Supply

BA-AI

1-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

1-phase 2-wire

BA-3I3

3-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 3-wire

BA-AV

1-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

1-phase 2-wire

 BA-3V3

 3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 3-wire

BA-4V3

 3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 4-wire

BD-DI

1-phase

DC Current

4~20mA DC/0~20mA DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

1-phase 2-wire

BD-DV

1-phase

DC Voltage

0~75mV DC/0~10V DC

/0~300V DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

1-phase 2-wire

BD-3P

 3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4P

 3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3Q

 3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4Q

 3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3/P/Q/I

 3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4/P/Q/I

 3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-PF

3-phase

Power-Factor

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-F

3-phase

Frequency

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3E

3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4E

3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire



General Technical Parameters

Item

Description

Auxiliary Power Supply

85V~265V AC or 100V~350V DC or 24V/48V DC (for certain models)

Accuracy Class

0.5%

Load Resistance (Output)

Current Output: ≤600Ω; Voltage Output: ≤1000Ω

Response Time

≤400ms

Temperature

Operation Temp.: -10℃~+55℃; Storage Temp.: -25℃~+70℃

Temperature Coefiicient

≤200ppm/℃

Humidity

≤90%

Altitude

≤2500m

Installation

35mm DIN Rail or Screw fixed

Standard

CE
