BD-4E 3P4L Power Transducer

Home  >  Products  >  Power Sensor  >  BD-4E 3P4L Power Transducer

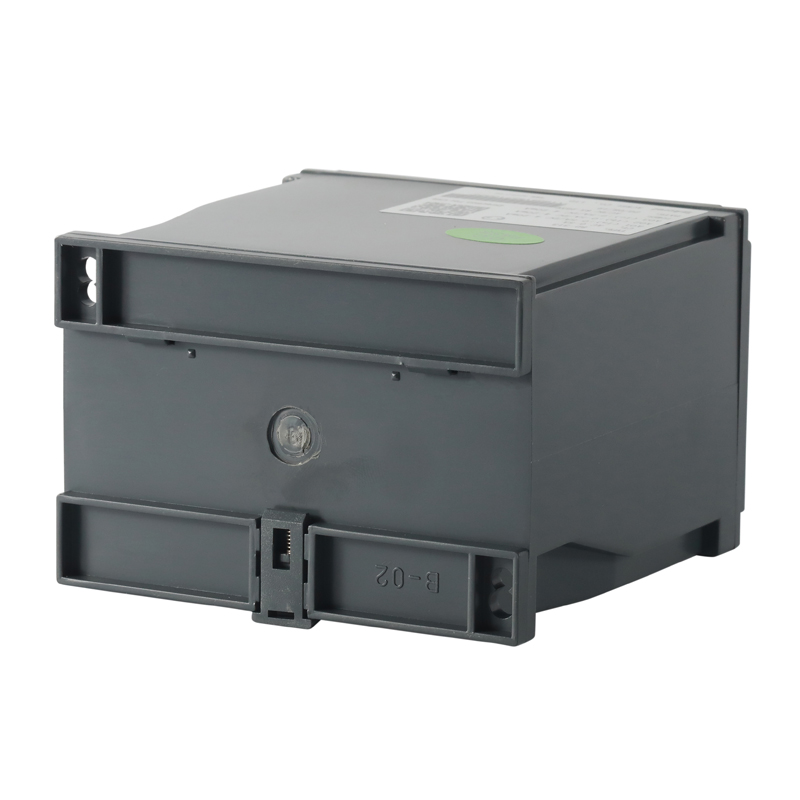

BD-4E 3P4L Power Transducer

BD-4E series Electricity Transducer can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.
