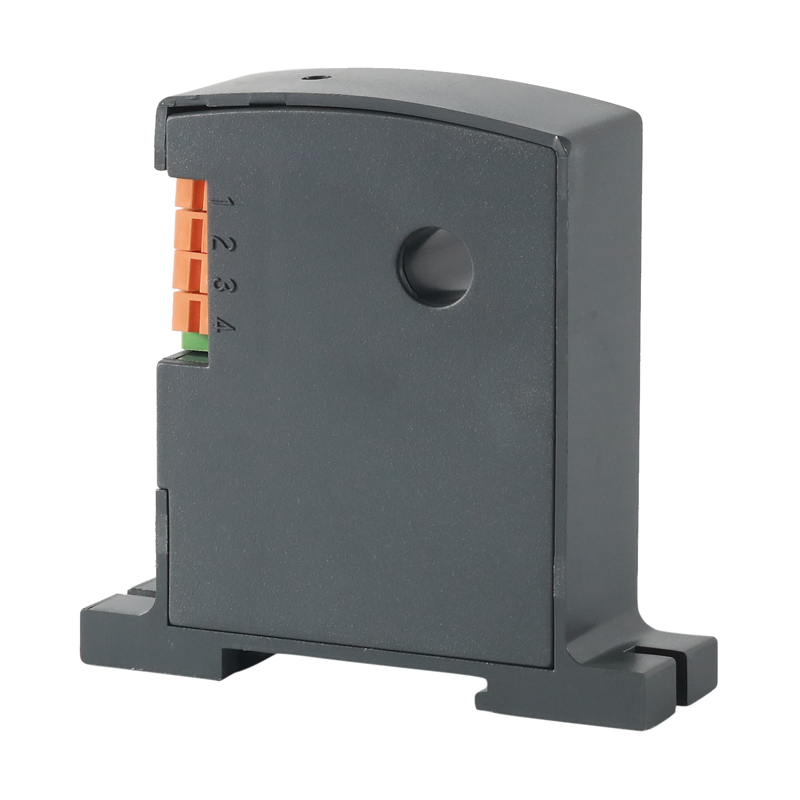

BA50-AI/I AC Current Transducer

Home  >  Products  >  Power Sensor  >  BA50-AI/I AC Current Transducer

BA50-AI/I AC Current Transducer

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Rated Input: 0~600A current , output signal 0-5V or 4-20mA DC
  • Power Supply: 12V/24V DC
  • Applicaiton: Paired with PLC for Industrial Automation
  • Accuracy: Class 0.5
  • Installation: 35mm DIN Rail/Screw fixed
  • Standard&Certificate: CE; TüV

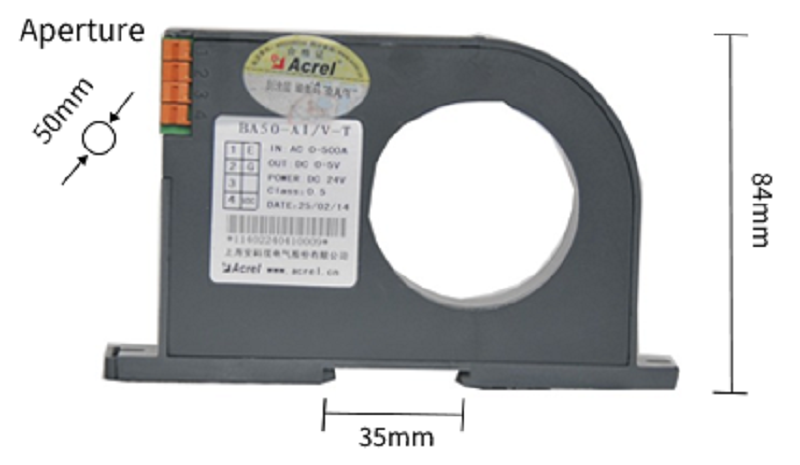

Dimension

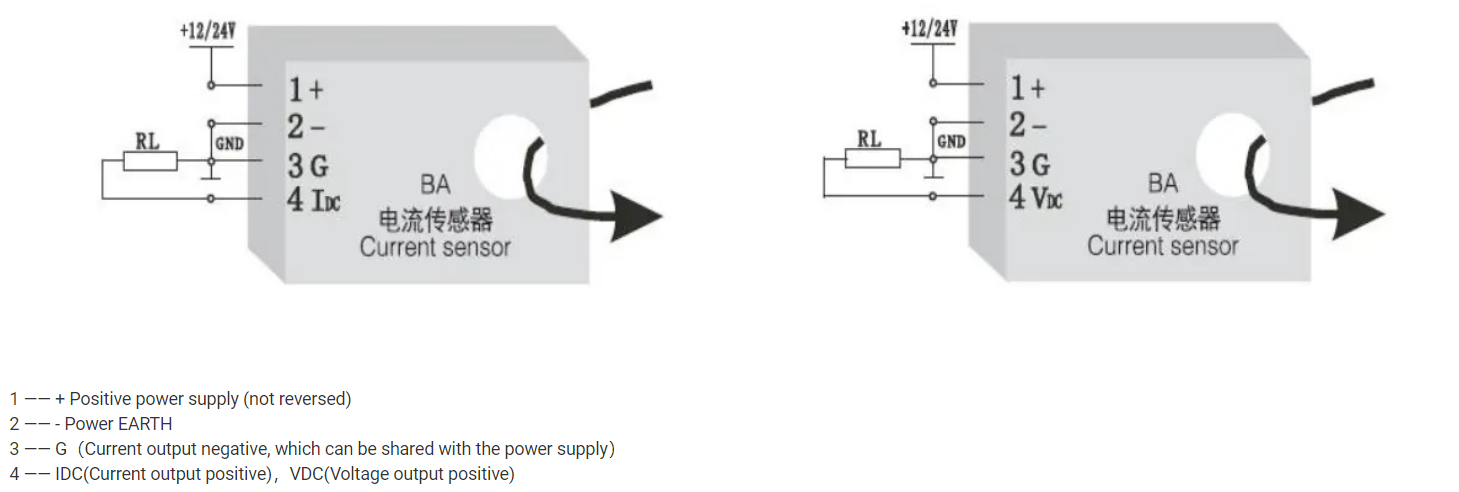

Installation Structure

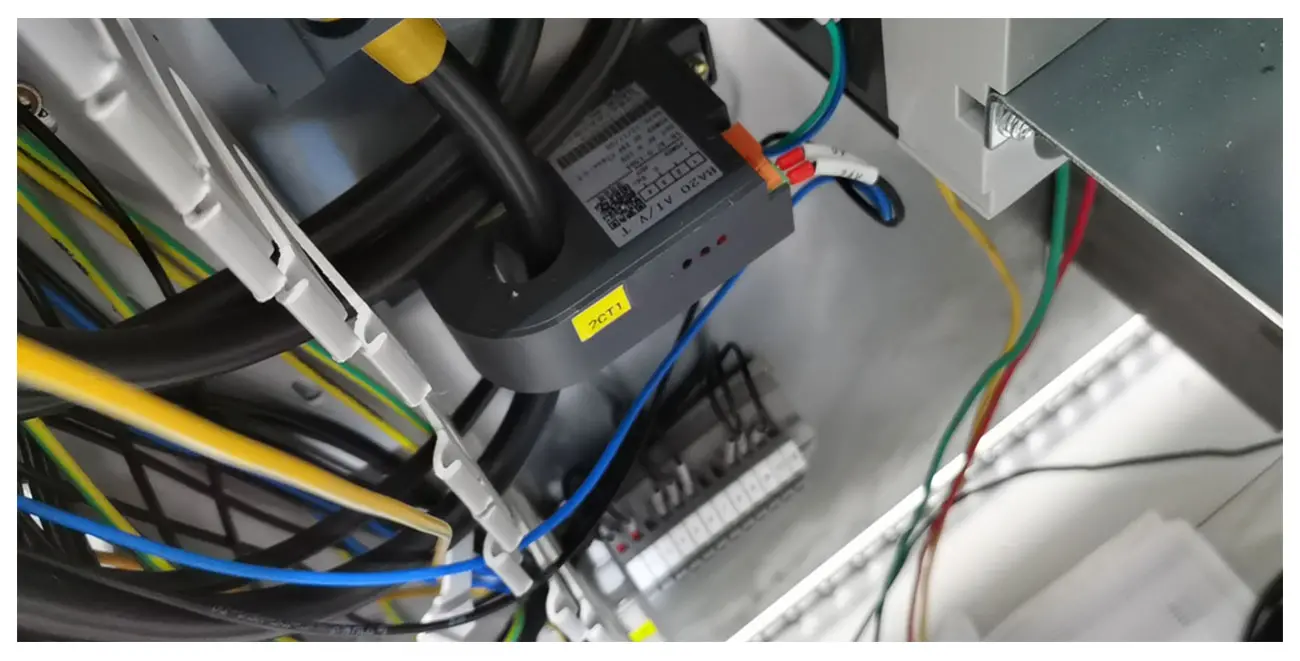

Installation On-Site





Related Products
  • PZ72L-DE DC Panel Energy Meter
  • AKH-0.66/K-Φ Series Split Type Current Transformer
  • AMC16-DETT Multi Circuit DC Energy Meter
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Different Technical Specification

Model Name

Input

Output

Perforation Hole Size(mm)

AC  Current

DC Current

DC Voltage

BA05-AI/I

0~(0.5~10)A

4~20mA/0~20mA

/

φ5


BA05-AI/V

0~(0.5~10)A

/

1~5V/0~5V

BA10-AI/I

0~(8~50)A

4~20mA/0~20mA

/

φ10


BA10-AI/V

0~(8~50)A

/

1~5V/0~5V

BA20-AI/I

0~(40~200)A

4~20mA/0~20mA

/

φ20


BA20-AI/V

0~(40~200)A

/

1~5V/0~5V

BA50-AI/I

0~(60~600)A

4~20mA/0~20mA

/


φ50



BA50-AI/V

0~(60~600)A

/

1~5V/0~5V

BA50L-AI/I

0~(0.1~1)A

4~20mA/0~20mA

/

BA50L-AI/V

0~(0.1~1)A

/

1~5V/0~5V



General Technical Specification

Item

Description

Auxiliary Power Supply

DC 12V (range of 10~15V) or DC 24V (range of 18~30V)

Accuracy Class

0.5%

Load Resistance (Output)

Current Output: ≤500Ω; Voltage Output: ≤1000Ω

Response Time

≤350ms

Temperature

Operation Temp.: -10℃~+55℃; Storage Temp.: -40℃~+80℃

Temperature Coefiicient

≤200ppm/℃

Humidity

≤90%

Altitude

≤2500m

Installation

35mm DIN Rail or Screw fixed

Standard

CE/TüV
