BA05-AI/I(V) Current Transducer

Home  >  Products  >  Power Sensor  >  BA05-AI/I(V) Current Transducer

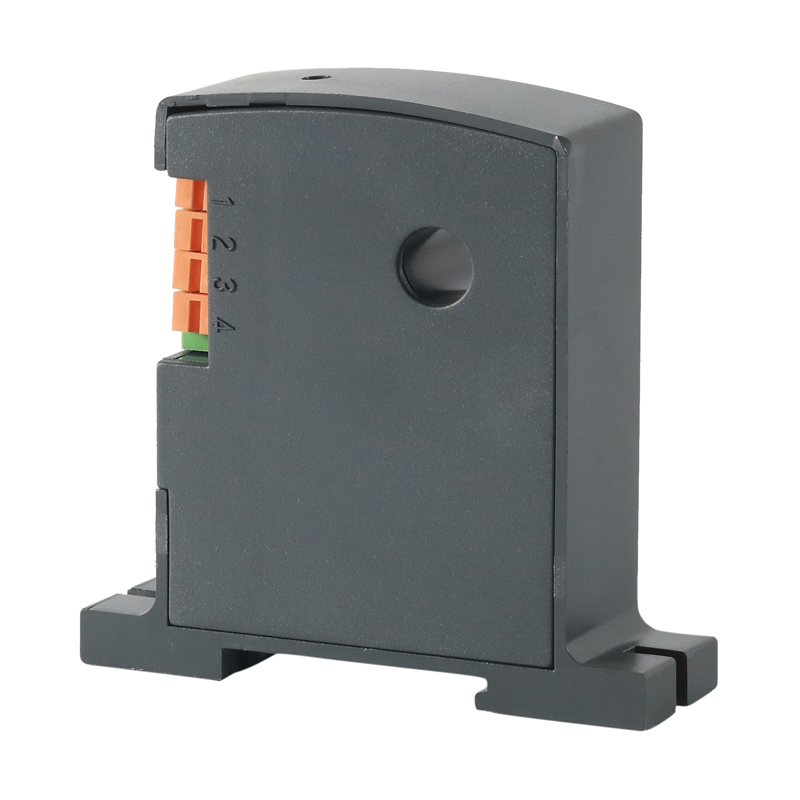

BA05-AI/I(V) Current Transducer

BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Rated Input: 0~(0.5-10)A AC, output signal 0-5V or 4-20mA DC
  • Power Supply: 12V/24V DC
  • Applicaiton: Paired with PLC for Industrial Automation
  • Accuracy: Class 0.5
  • Installation: 35mm DIN Rail/Screw fixed
  • Standard&Certificate: CE; TüV

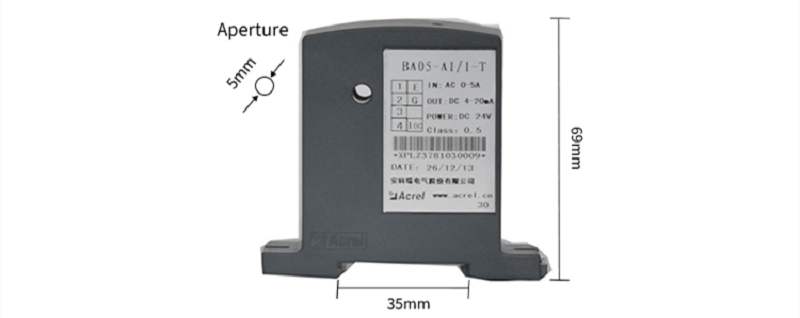

Dimension




Installation Structure



Installation On-Site





Related Products
  • PZ72L-DE DC Panel Energy Meter
  • AKH-0.66/K-Φ Series Split Type Current Transformer
  • AMC16-DETT Multi Circuit DC Energy Meter
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Different Technical Specification

Model Name

Input

Output

Perforation Hole Size(mm)

AC  Current

DC Current

DC Voltage

BA05-AI/I

0~(0.5~10)A

4~20mA/0~20mA

/

φ5


BA05-AI/V

0~(0.5~10)A

/

1~5V/0~5V

BA10-AI/I

0~(8~50)A

4~20mA/0~20mA

/

φ10


BA10-AI/V

0~(8~50)A

/

1~5V/0~5V

BA20-AI/I

0~(40~200)A

4~20mA/0~20mA

/

φ20


BA20-AI/V

0~(40~200)A

/

1~5V/0~5V

BA50-AI/I

0~(60~600)A

4~20mA/0~20mA

/


φ50



BA50-AI/V

0~(60~600)A

/

1~5V/0~5V

BA50L-AI/I

0~(0.1~1)A

4~20mA/0~20mA

/

BA50L-AI/V

0~(0.1~1)A

/

1~5V/0~5V



General Technical Specification

Item

Description

Auxiliary Power Supply

DC 12V (range of 10~15V) or DC 24V (range of 18~30V)

Accuracy Class

0.5%

Load Resistance (Output)

Current Output: ≤500Ω; Voltage Output: ≤1000Ω

Response Time

≤350ms

Temperature

Operation Temp.: -10℃~+55℃; Storage Temp.: -40℃~+80℃

Temperature Coefiicient

≤200ppm/℃

Humidity

≤90%

Altitude

≤2500m

Installation

35mm DIN Rail or Screw fixed

Standard

CE/TüV
