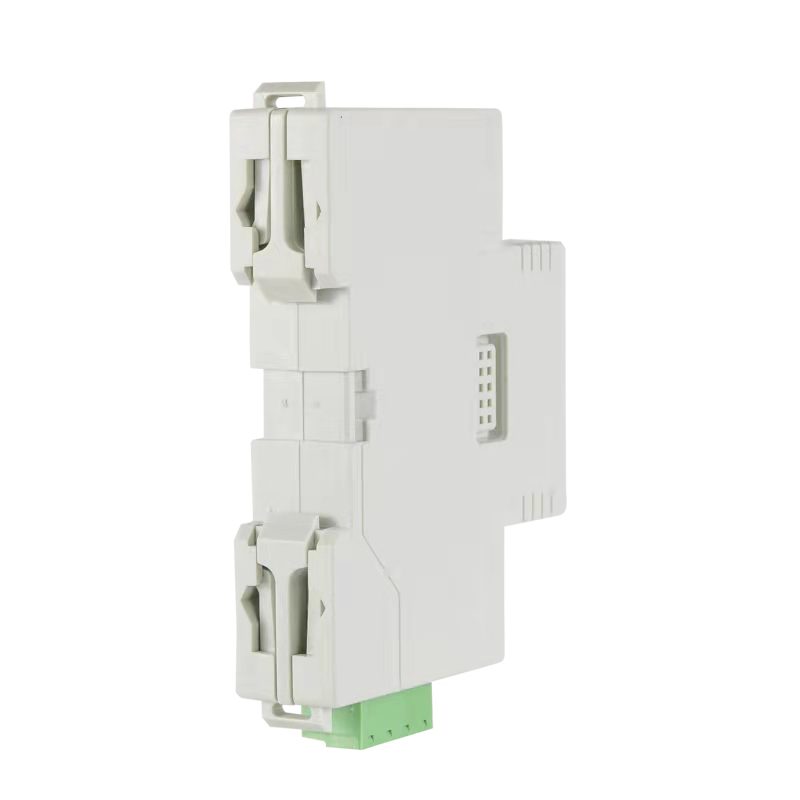

AWT100-CE Ethernet Gateway Communication Terminal

AWT100 wireless gateway communication terminal is a new wireless data acquisition device launched by Acrel.The uplink communication includes 4G,WiFi,2G,Lora,Lorawan and CE.The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment.At the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Working Voltage:DC24V or AC/DC220V
Baud Rate:4800bps、9600bps、19200bps、38400bps(default 9600bps)
RS485 modbus-RTU
Transparent transmission, MQTT

Panel Features

Wiring

Network Diagram

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-WIFI Wireless Communication Terminal

Data Sheet

Main Types

Parameter Name	AWT100-4GHW	AWT100-NB	AWT100-LW	AWT100-LoRaHW
Working frequency	4G LTE-FDD: B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 4G LTE-TDD: B38 B39 B40 B41	NB-IoT: H-FDD B1 B3 B8 B5 B20	LoRaWAN: 470MHz LoRaWAN: 863~870MHz LoRaWAN: 920~928MHz	LoRa: 460~510MHz LoRa: 860~935MHz
Transmission rate	LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps	Maximum downlink rate 25.2Kbps Maximum uplink rate 15.62Kbps	LoRa 62.5kbps	LoRa 62.5kbps
Downlink	RS485 Communication
Uplink	4G Communication	NB-IoT Communication	LoRaWAN Communication	LoRa Communication
SIM card voltage	3V，1.8V			/
Working current	Static power：≤1W，Transient power consumption：≤3W			Static power： ≤0.5W, Transient power Consumption：≤1W
Antenna interface	50Ω/SMA（Faucet）
Serial port type	RS-485
Baud rate	4800bps、9600bps、19200bps、38400bps（default 9600bps）
Operating Voltage	DC24V /AC/DC220V①
Operating temperature	-10℃～55℃
Storage temperature	-40℃～85℃
Humidity range	0～95% Non-condensing

Main Features

Parameter name	AWT100-GPS	AWT100-WiFiHW	AWT100-CE	AWT100-DP
Work	Positioning accuracy: 2.5-5m	Support 2.4G&5G frequency band WiFi rate: 115200bps	Ethernet rate 10/100M adaptive	Profibus address: 1~125. (Note)
Downlink	RS485 Communication
Uplink	GPS positioning	WiFi wireless	Ethernet communication	Profibus communication
Working current	Static power consumption：≤1W，transient power consumption：≤3W			Static power consumption： ≤0.5W， transient power consumption： ≤1W
Interface	50Ω/SMA（Faucet）		RJ45	DP9
Serial port type	RS-485 Communication
Baud rate	4800bps、9600bps、19200bps、38400bps（Default 9600bps）
Operating Voltage	DC24V or AC/DC220V①
Operating temperature	-10℃～55℃
Storage temperature	-40℃～85℃
Humidity range	0～95% Non-condensing
