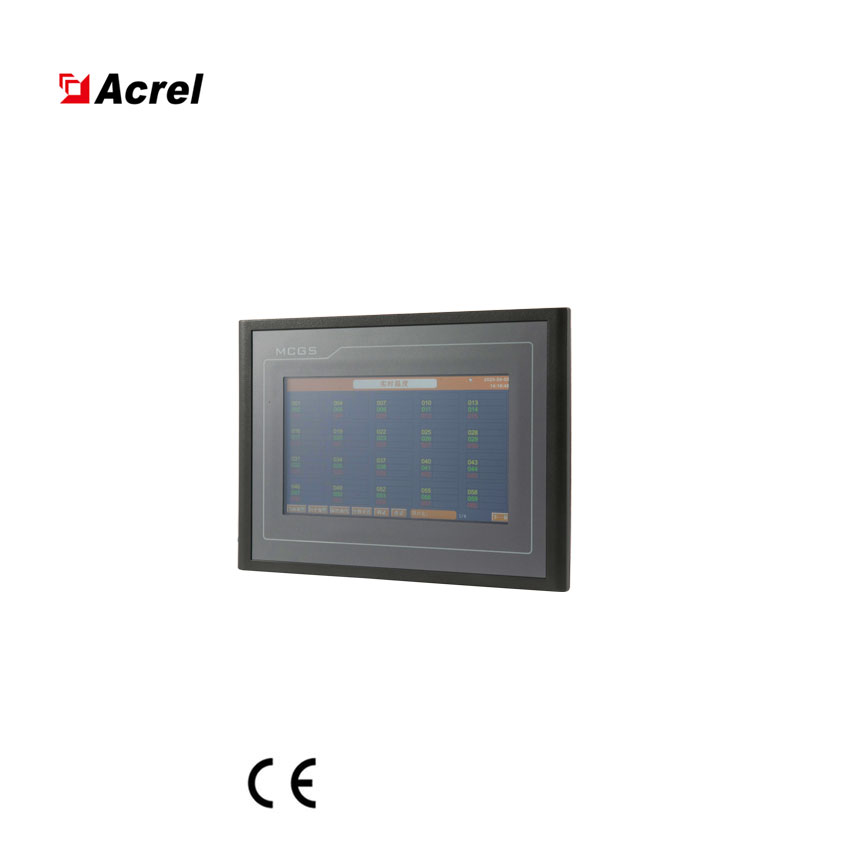

ATP Series Remote Temperature Data Display Touchscreen

ATP Series Touchscreen can display up to 240 ATE Wireless Temperature Sensors with 1-channel Ethernet & 2-channel RS485 (MODBUS-RTU).

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Display Temperature Data: From up to 240 ATE Wireless Temperature Sensors
Communication: 1-channel Ethernet & 2-channel RS485 (MODBUS-RTU)
Touch Screen Size: 7 Inch & 10 Inch
Cut-out Dimension:215*152mm & 261*180mm
Power Supply: 24V DC (±10%)lass 0.5,2~31st harmonic :±1%

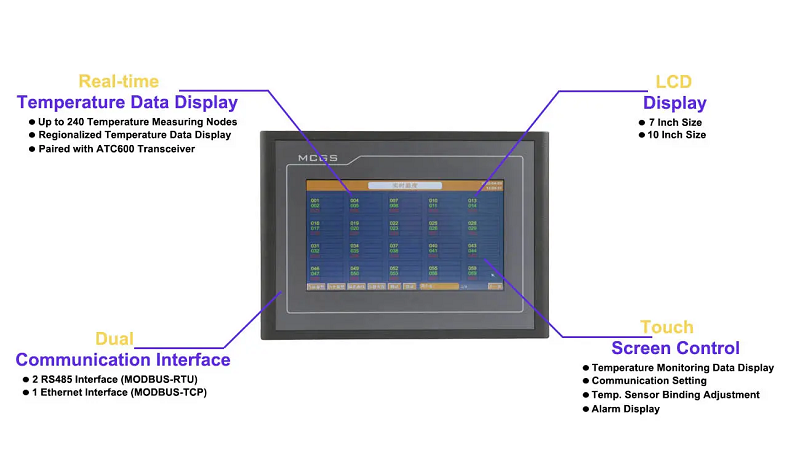

Panel Features

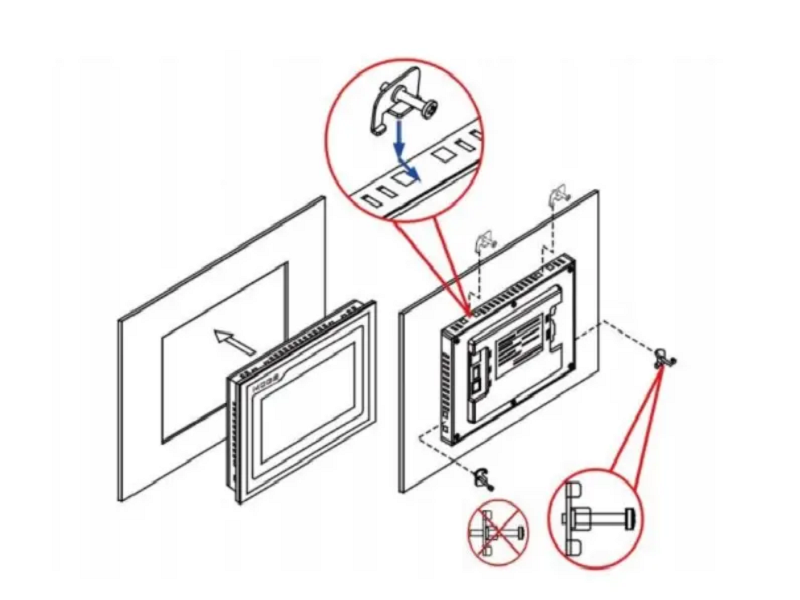

Installation

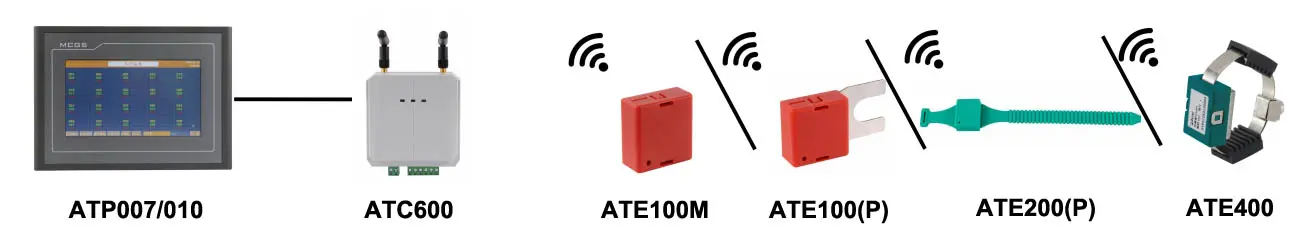

Network Structure

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

Main Parmeters

Items		Features
Type of touch screen		ATP007,ATP010
Power source		DC 24V（±10%），15W
Points of temperature		240 points
Range of temperature		-50℃~125℃
Precision		±1℃
Battery life		≥5 years
Communication	Interface	RS485/Ethernet
	Protocol	Modbus-RTU/ Modbus-TCP
Environment	Temperature	-10℃~55℃
	Humidity	≤95%
	Altitude	≤3000m
