ATE100M Wireless Temperature Sensor

Home > Products > Power Monitoring & Protection > ARTM Series Wireless Temperature Monitor > ATE100M Wireless Temperature Sensor

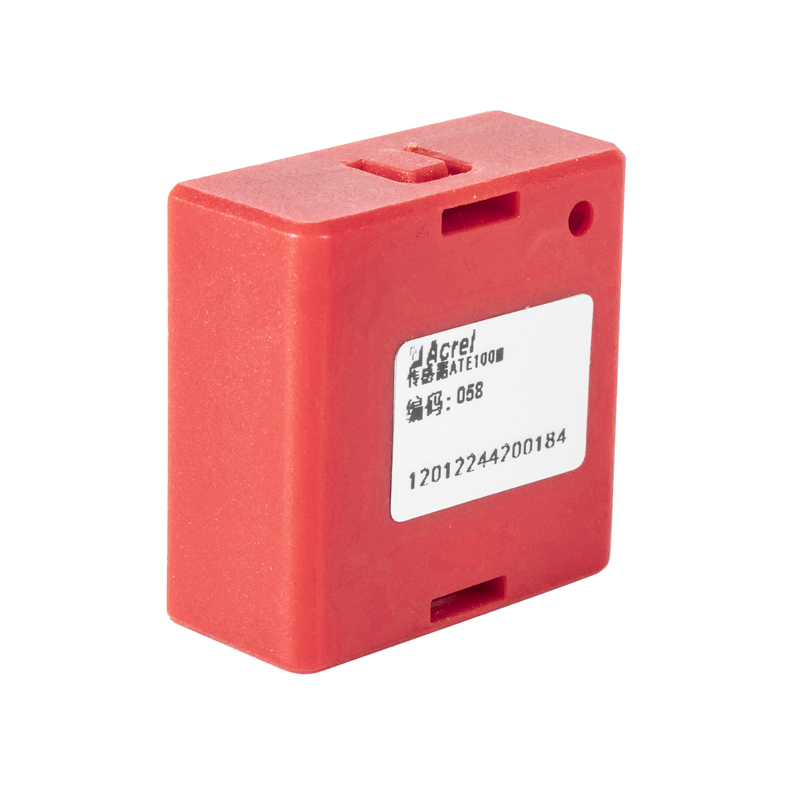

ATE100M Wireless Temperature Sensor

ATE series wireless temperature sensors are mainly used for bus bar or cable at power distribution cabinet.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Widely temperature measuring range, -50℃~+125℃.
Wireless transmit,470MHz;
Wireless transmission distance, 150 meters in open area;
Battery -powered, more than 5 years;

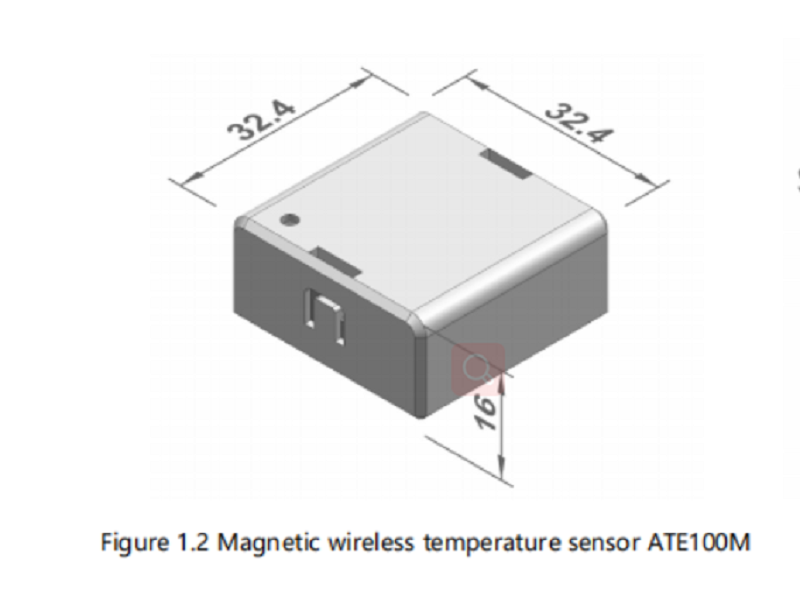

Dimension

Wiring

Network Structure

Installation On-Site

Package

MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.49Kg

WHOLE BOX PACKAGE

Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

17.42kG

PRODUCT HS CODE

9028301400

Related Products

ATC600 Wireless Temperature Transceiver
ATE200 Wireless Temperature Sensor
WHD48-11 Temperature&Humidity Contorller
ARTM-PN Wireless Temperature Monitor

Data Sheet

Main Products

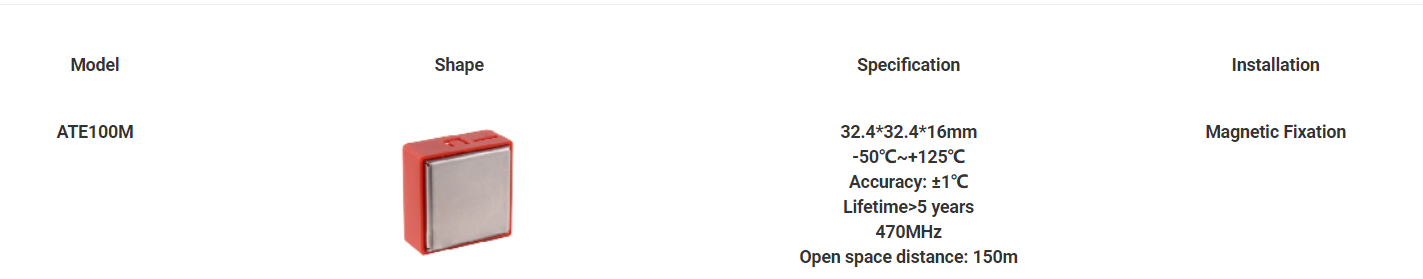

ATE100M	-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Magnetic absorption fixation
ATE200	-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Strap binding
ATE400	-50℃~+125℃, Accuracy class ±1℃, CT induction of electricity powered, starting current ≥5 A;470MHz, open distance 150 m.	Alloy sheet fixed and Powered

Major Functions

Wireless temperature measurement	Item	Value
	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s
	Transmission frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s
	Power source	CT-powered, starting current>5A
	Installation	Alloy chip fixing
	Range of temperature	-50AC~125°C
	Precision	ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C
	Application	Joints in high or low voltage switchgears
	Service life	^5 years
