ATC600 Wireless Temperature Transceiver

Home > Products > Power Monitoring & Protection > ARTM Series Wireless Temperature Monitor > ATC600 Wireless Temperature Transceiver

ATC600 Wireless Temperature Transceiver

ATC600 Wireless distance, Receiver sensor 150m (in open area)，Relay distance 1Km (in open area) with RS485.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Wireless transmit,470MHz;
Wireless distance, Receiver sensor 150m (in open area)，Relay distance 1Km (in open area);
240 points;
Power supply, AC/DC100~256V;
Relay output, 2 passive output，capacity 5A/AC250V，5A/DC30V;
RS485(MODBUS-RTU)

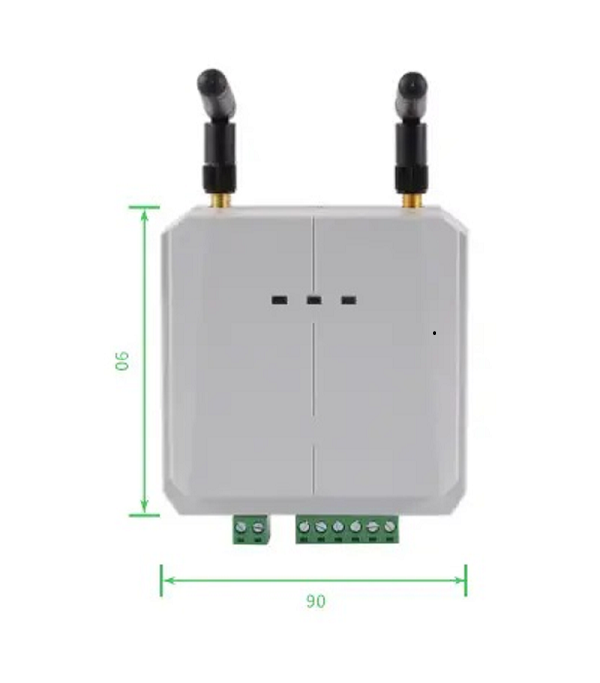

Dimension

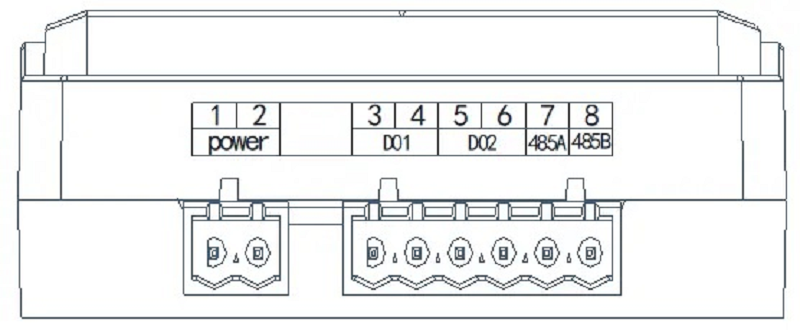

Wiring

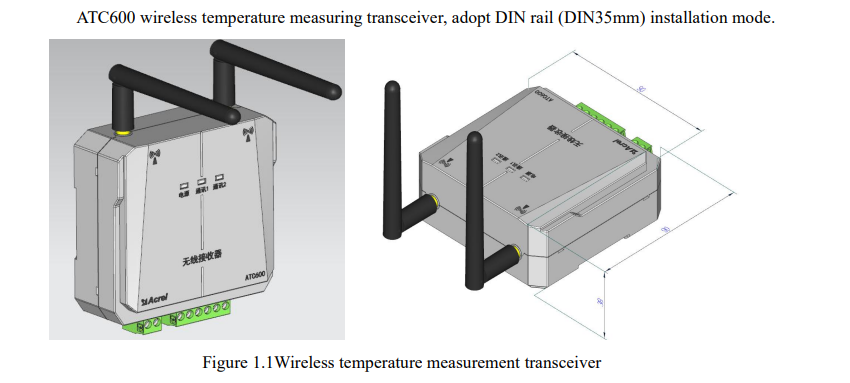

Installation

Network Structure

Installation On-Site

Package

MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.3Kg

WHOLE BOX PACKAGE

Package Dimension(36 PCS)

450*240*250mm

Package Weight(36 PCS)

10.8kG

PRODUCT HS CODE

9028301400

Related Products

ATE100M Wireless Tmeperature Sensor
ATE200 Wireless Temperatture Sensor
ATE400 Wireless Temperature Sensor
ARTM-PN Wireless Temperature Controller

Data Sheet

Technical Features

Items		Features
Transceiver ATC600	Power	AC/DC100~265V ≤6VA ≤8VA
	Power consumption	≤2W
	Points	≤240 points
	Resolution	0.1℃
	Range of temperature	-50℃~+125℃
	Accuracy	±1℃
	Wireless frequency	470M
	Distance	Transceiver sensor 150 m( open), repeaters distance 1 km( open)
	Communication port	RS485
	Protocol	MODBUS-RTU
	Baud(bps)	2400、4800、9600、19200
	Relay output	2 passive exits ,5 A/AC250V,5A/DC30V capacity
	Working environment	Temperature：-20 ℃～+55 ℃；Humidity≤95%
