ARTM-Pn Wireless Temperature Measuring Instruments

ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

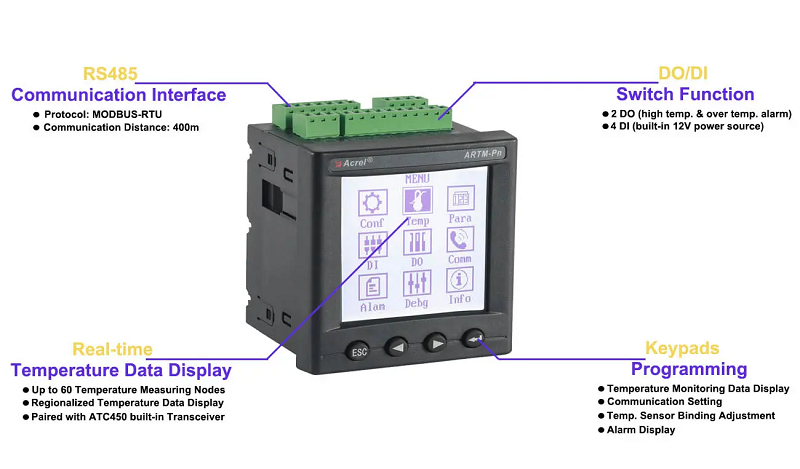

Major Characteristics

Wireless temperature measurement, maximum measuring 60 points;
4 digital inputs;
2 alarm relays;
LCD display;
Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
1 RS485 serial communication, Modbus-RTU
Auxiliary power upply:AC 85~265V,DC 100~300V

Dimension

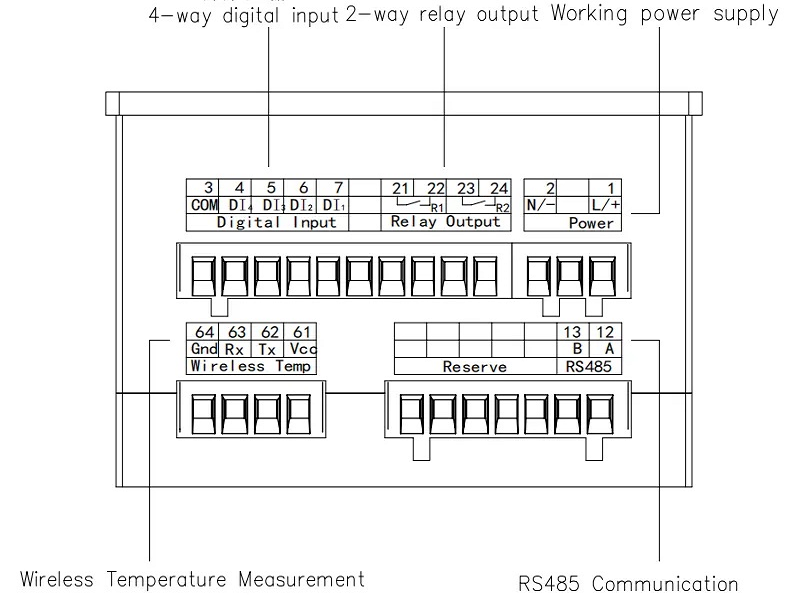

Wiring

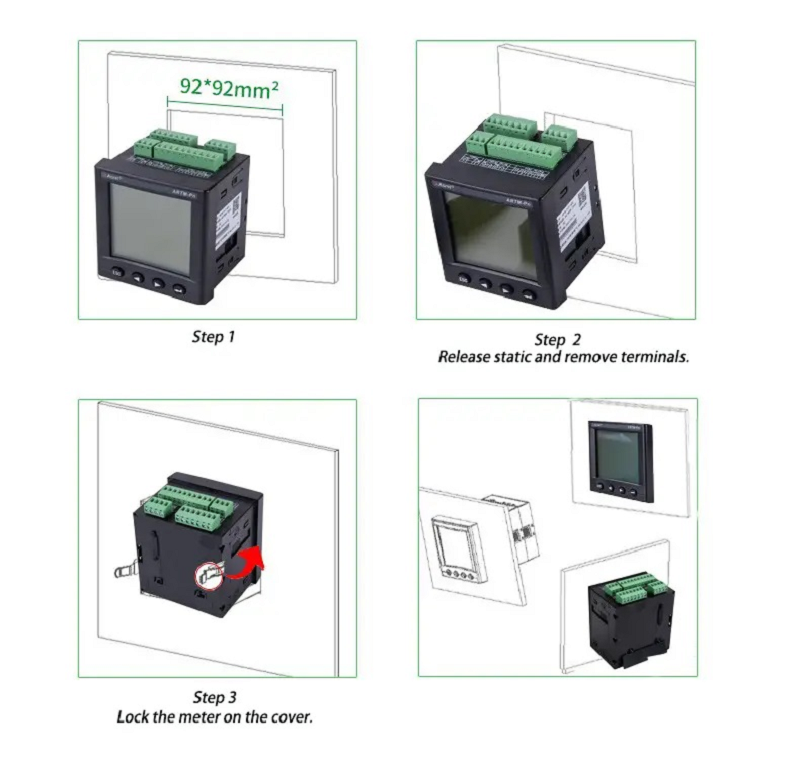

Installation

Network Structure

Installation On-Site

Package

MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.45Kg

WHOLE BOX PACKAGE

Package Dimension(36 PCS)

450*240*250mm

Package Weight(36 PCS)

16.2kG

PRODUCT HS CODE

9028301400

Related Products

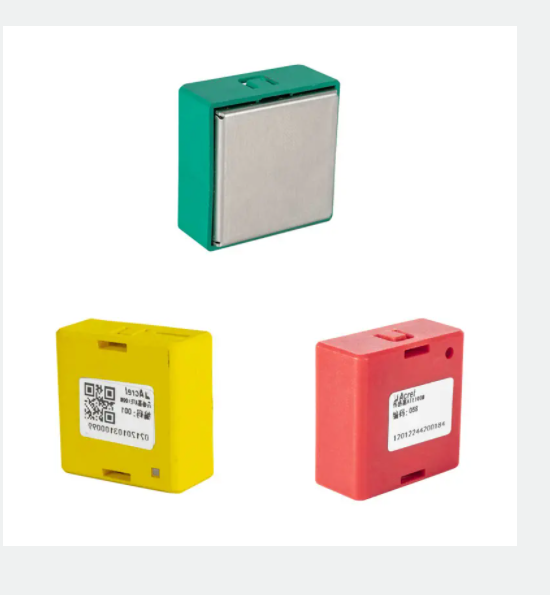

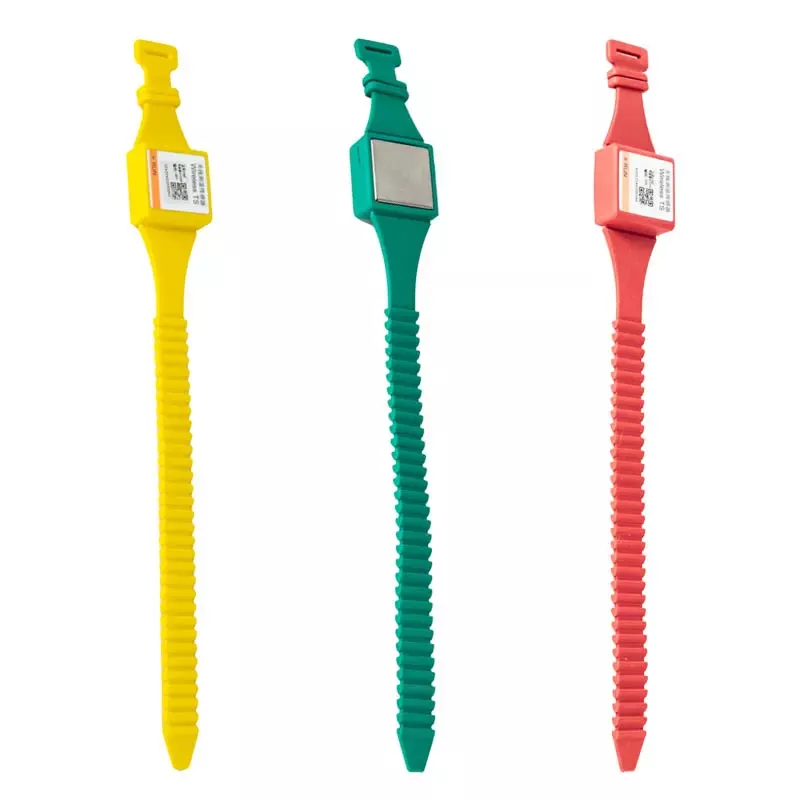

ATE200 Wireless Temperature Sensor
ATE400 Wireless Temperature Sensor
ATE100M Wireless Tempearture Sensor
WHD72-22 Temperature&Humidity Controller

Data Sheet

Major Characteristics

Functions	ARTM-PnARTM-Pn
Sensor	ATE100, ATE200, ATE300B, ATE300, ATE400
Temperature precision	±2℃
Sensor number	60
Auxiliary Power Supply	ARTM-Pn
Auxiliary power upply	AC 85~265V,DC 100~300V
Power consumption	8W
Communication	ARTM-Pn
Protocol	Modbus-RTU
Rear port	RS485
Baud rate(bps)	2400,4800,9600,19200
Environmental requirement	ARTM-Pn
Operating temperature	-10℃~55℃
Relative humidity	≤95%
Atmospheric pressure	86kPa~106kPa
Average work time without stoppage	≥50000 hour
