ARTM-8 Multi Channel Temperature Controller With PT100

ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

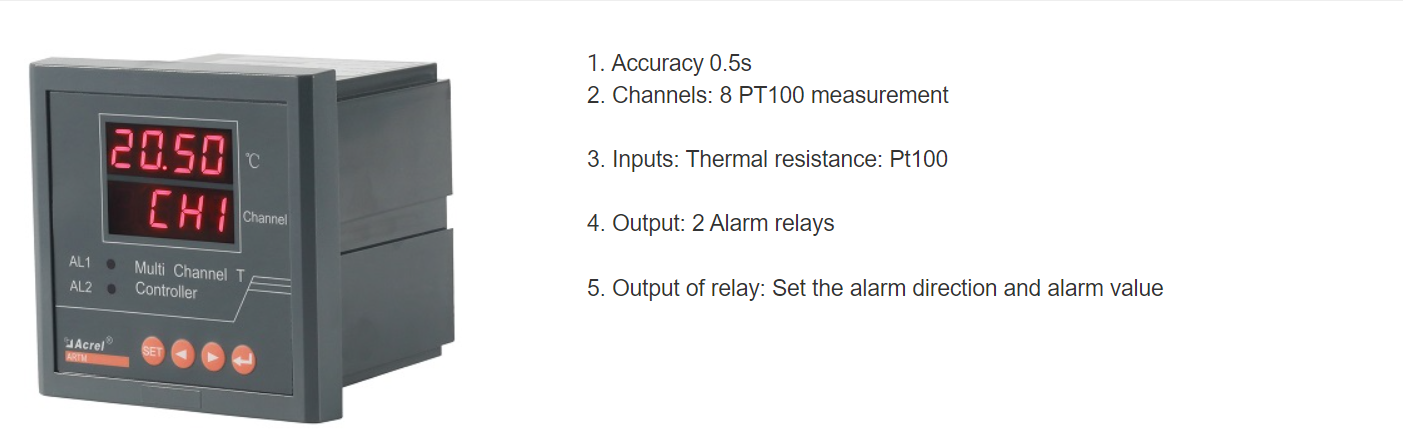

Major Characteristics
  • 8 PT100 measurement
  • 2 Alarm relays
  • LED display
  • Auxiliary power supply adapts with AC220V, DC220V, DC110V
  • 1 RS485 serial communication, Modbus-RTU

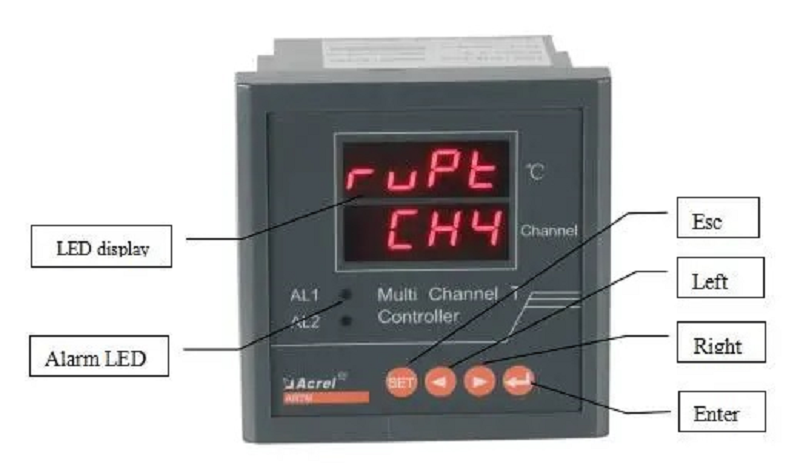

Panel Features

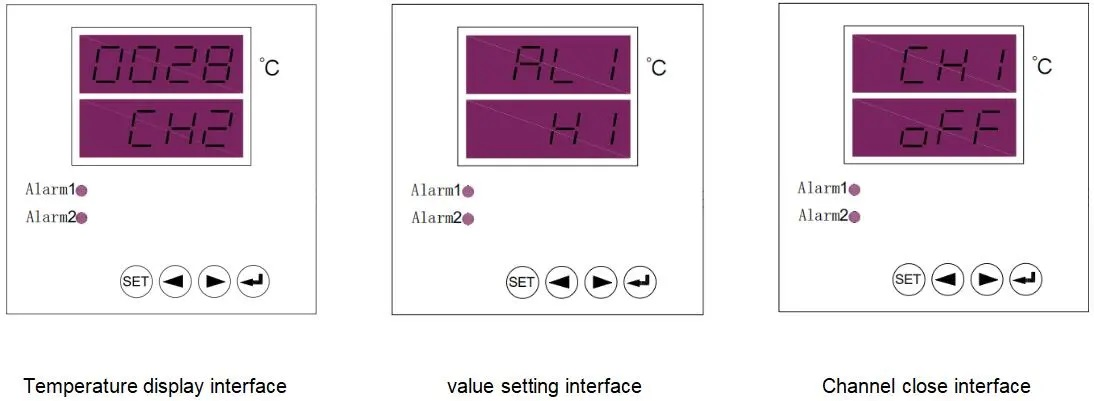

LED Display

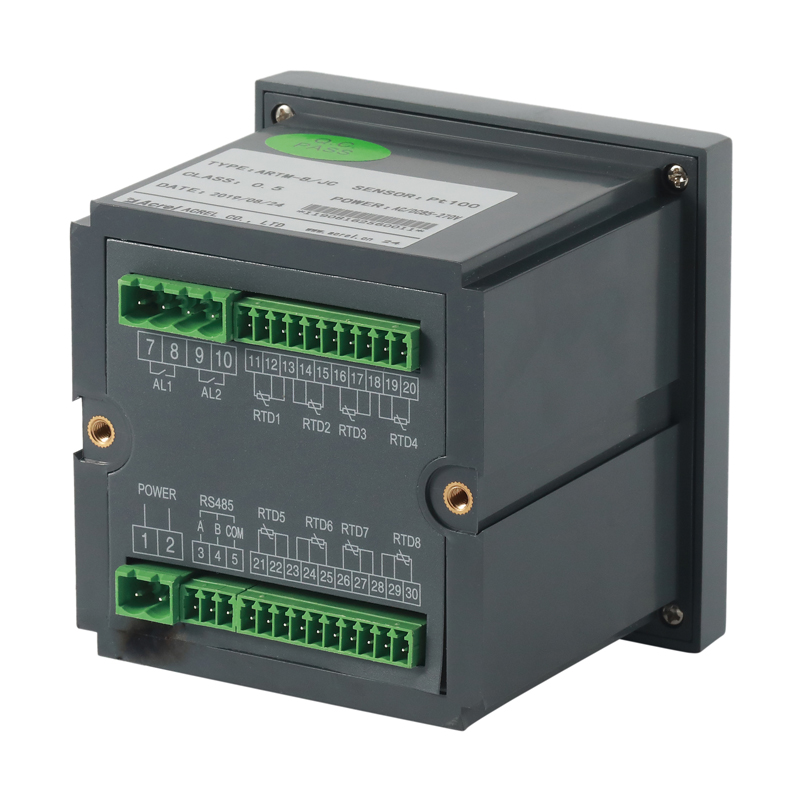

Wiring







Installation


Network Structure



Installation On-Site





  •
Package



MINIMUM PACKAGE





MINIMUM PACKAGE



Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.372Kg



WHOLE BOX PACKAGE



Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

14.5kG



PRODUCT HS CODE



 9028301400



Related Products
  • ARTM-PN Wireless Temperature Monitor
  • ATC600 Wireless Temperature Transceiver
  • WHD72-22 Temperature&Humidity Controller
  • ATE100M Wireless Tmperature Sensor
  •
  •
Data Sheet
Main Functions
  1. Model

Function

ATC450-C

Wireless transceiver; receive data from 60 ATE100M/100/200/400; 1RS485

ATC600

Wireless transceiver; receive data from 240 ATE100M/100/200/400; 1RS485; 2 alarm relays

ARTM-Pn

Wireless transceiver; receive data from 60 ATE Sensors, 1RS485, 4DI/2DO

ATP007

7 Inch touch screen

ATP010

7 Inch touch screen

ARTM-8

Intelligent temperature control meter, 8 channels temperature measuring (PT100 Sensor)

ARTM-24

Intelligent temperature control meter, 24 channels temperature measuring (PT100 Sensor)
