ARD2M Motor Protection Controller

ARD2M Motor Protection Controller

ARD2M motor protector (hereinafter referred to as the protector) is suitable for low-voltage motor circuits with rated voltage up to 380V and integrates protection, measurement, control, communication, operation and maintenance.Its perfect protection function ensures the safe operation of the motor, with logic programmable function, can meet a variety of control methods.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Suitable for motors with rated voltage of AC380V/660V;
  • Man-machine interface: LCD and button programming
  • 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;
  • 4 channels DO output.
  • Auxiliary power supply:AC/DC 85~265V
  • Pulse output:1600-160000imp/kWh
Panel Features

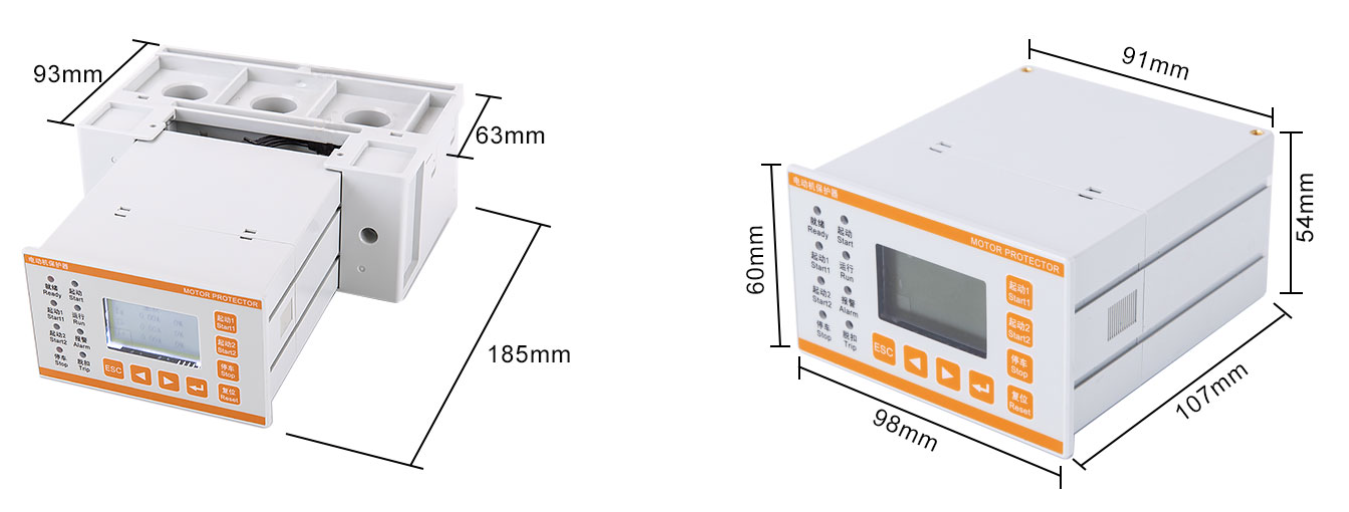

Dimension



Wiring


Network Structure



Applications





Package



MINIMUM PACKAGE





MINIMUM PACKAGE



Package Dimension(1 PC)

330*220*150mm

Package Weight(1 PC)

1.45Kg



WHOLE BOX PACKAGE



Package Dimension(36 PCS)

620*480*400mm

Package Weight(36 PCS)

16kG



PRODUCT HS CODE



9028301400



Related Products
  • ADW210 IoT Multi Channel Energy Meter
  • ADW200 IoT Multi Channel Energy Meter
  • ADW220 Lora Multi Channel Energy Meter
  • AKH-0.66K Split Core Current Transformer
  •
  •
  •
  •
Data Sheet

Technical parameters

Technical indicators

Protector auxiliary power supply

AC85-265V/DC100-350V

Rated working voltage of the motor

AC220V / 380V, 50Hz / 60Hz

Rated operating current of the motor

1 (0.1A-5000A)

Integrated/Split current transformer

5 (0.1A-5000A)

25(6.3A-25A)

100(25A-100A)

250(63A-250A)

Split current transforme

800(250A-800A)

Relay output contact capacity

Impedance load

AC250V、10A

Switching input

8 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional)

Communication

RS485 Modbus_RTU, Profibus_DP

Environment

Working temperature

-10ºC~55ºC

Storage temperature

-25ºC~70ºC

Relative humidity

≤95﹪No condensation, no corrosive gas

Altitude

≤2000m

Pollution levels

Class 3

Protection grade

Main body IP20, split display module IP54 (installed on the cabinet panel)

Installation category

Level III
