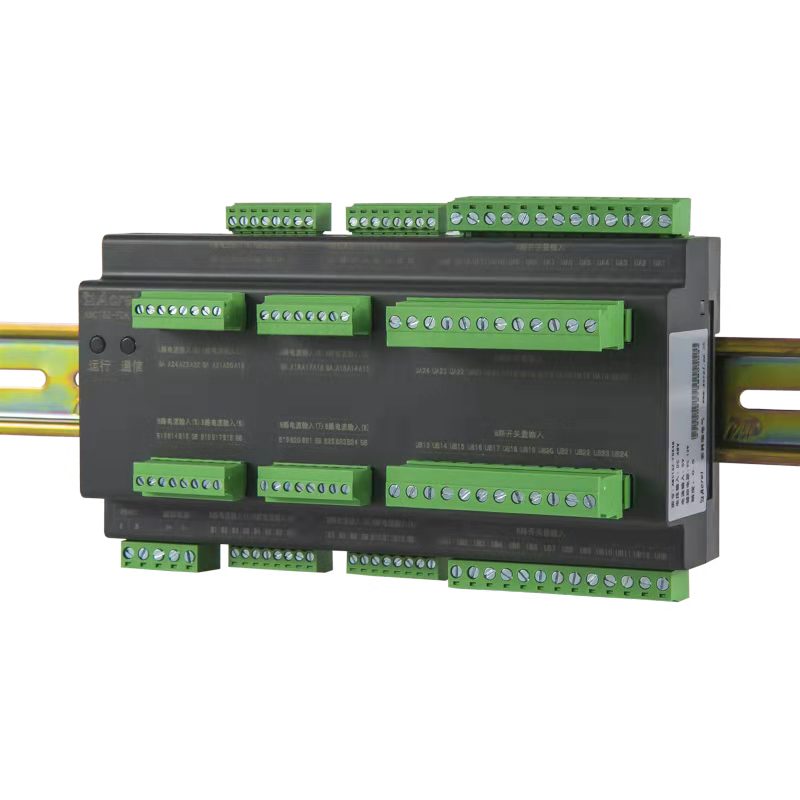

AMC16Z-FDK48 DC Multi Circuit Energy Meter

AMC16Z-FDK48 DC multi circuits energy meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Designed specifically for the power supply management of server in the data center
A+B independent 24 circuits（48 in total）
U, I, P, Q, S, PF, kWh, kvarh
kWh Class 0.5
DIN 35 mm

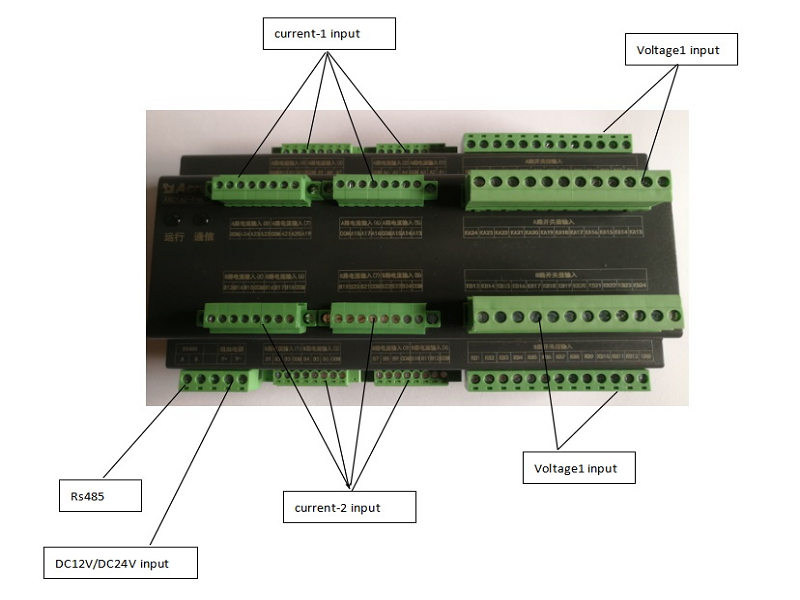

Panel Features

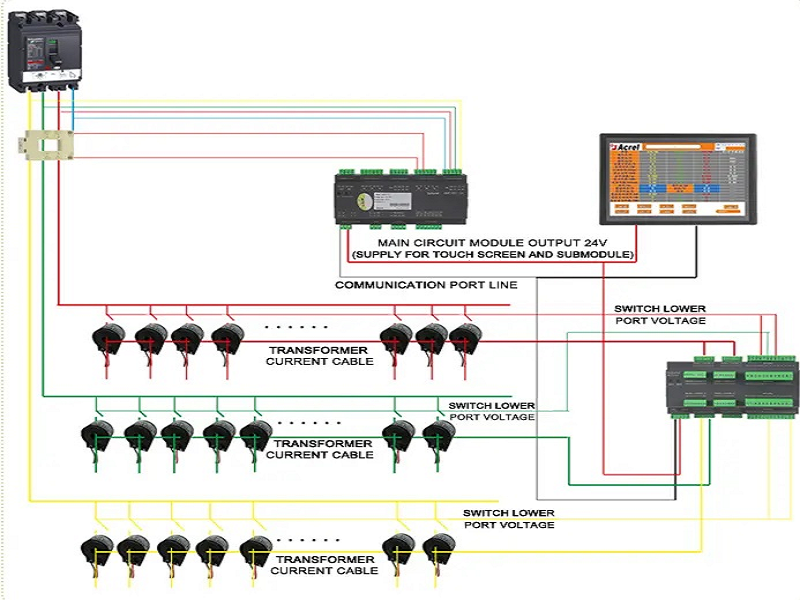

Wiring

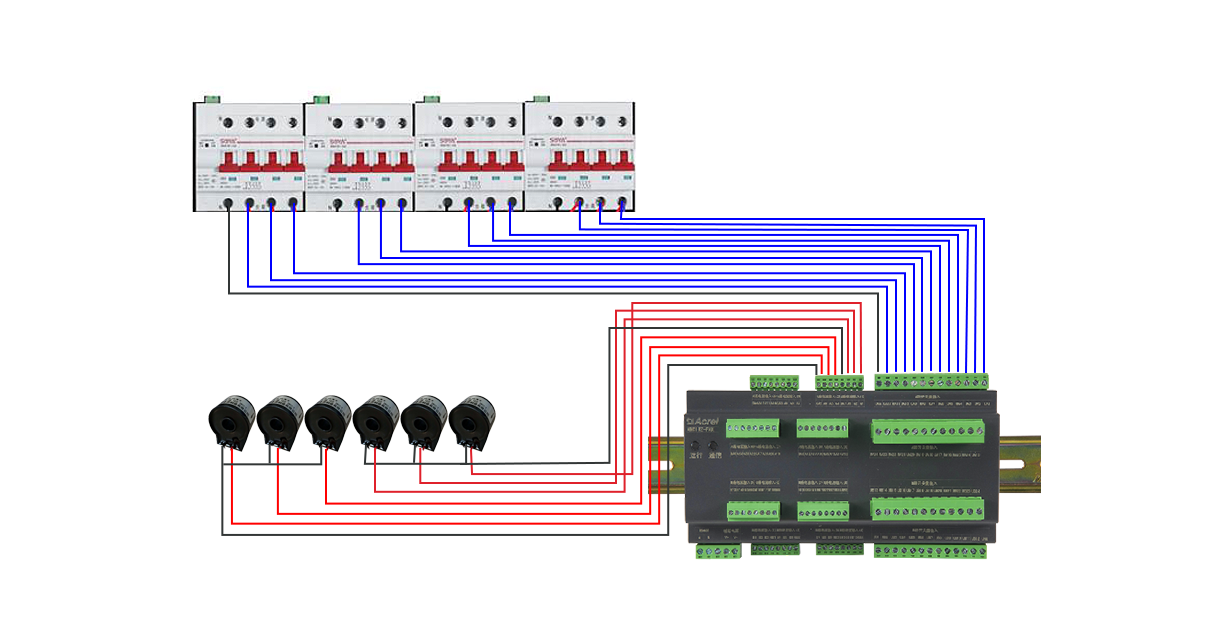

Installation

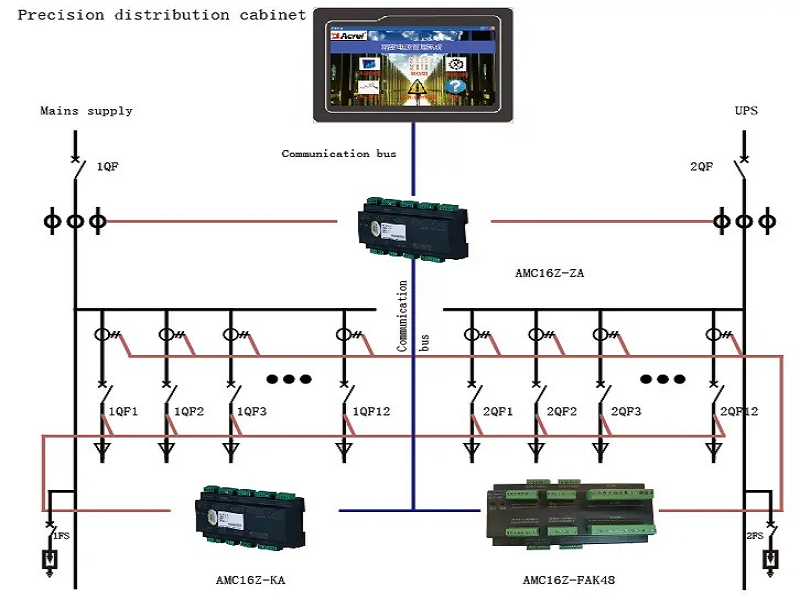

Network Structure

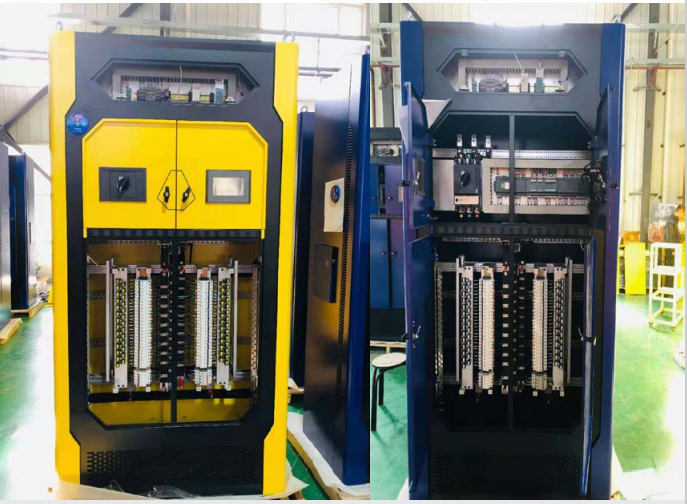

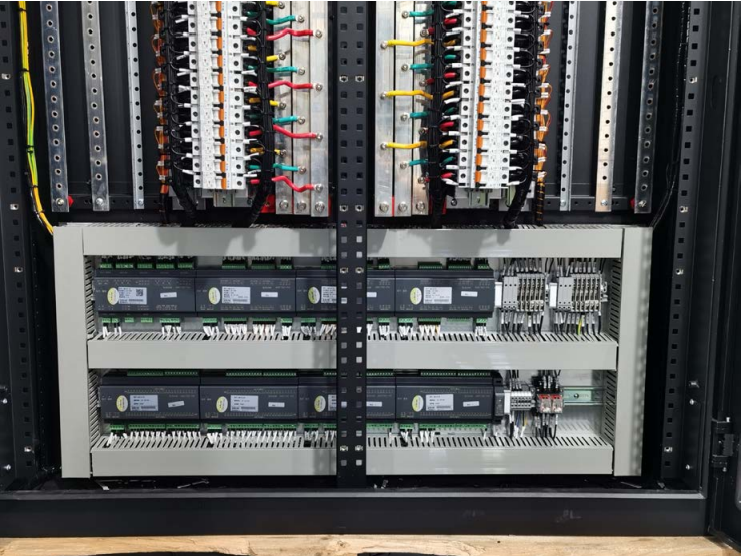

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter

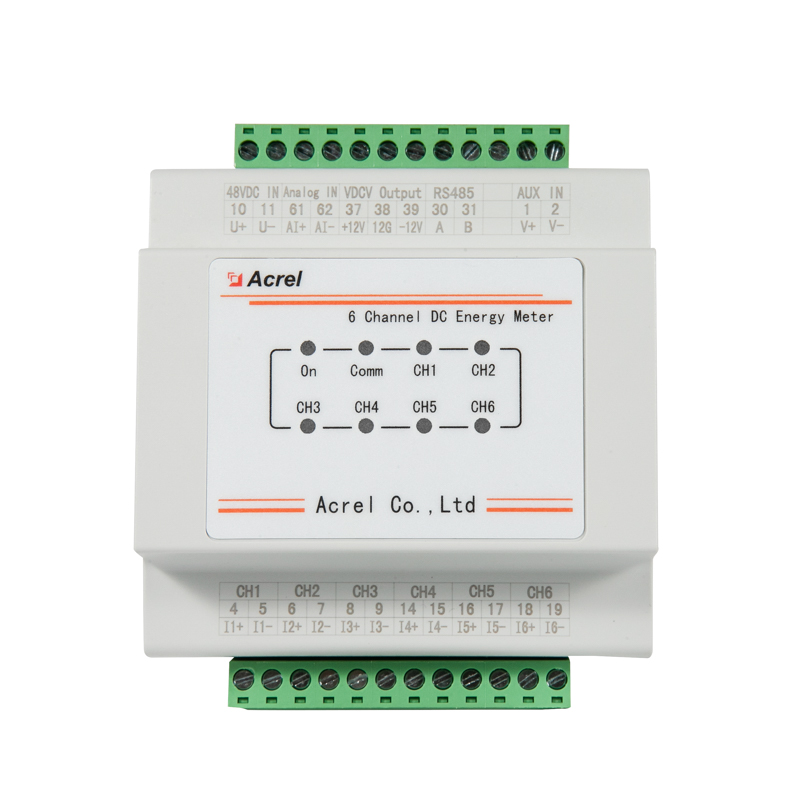

AMC16-DETT DC Multi Circuit Energy Meter
AWT100-4G Wireless Communication Terminal

Data Sheet

Technical Parameters

Model		AMC16Z-FDK48
Measuring parameters		voltage,current,power,energy and DI DO
Busbar voltage	Rated voltage	48VDC,240VDC,336VDC
	Measuring range	±20%
	overload	instant voltage 2 times/second
current outlet circuit	Rated range	50mA（50ma output current transformer)
current outlet circuit	overload	sustained 1.2times,instantaneous current 10times/second
accuracy	outlet	current,voltage class: 0.5 power,energy: 1
Auxiliary power supply		DC12V
Communication		RS485/Modbus-RTU
Installation		DIN35mm or panel type
Waterproof level		IP20
