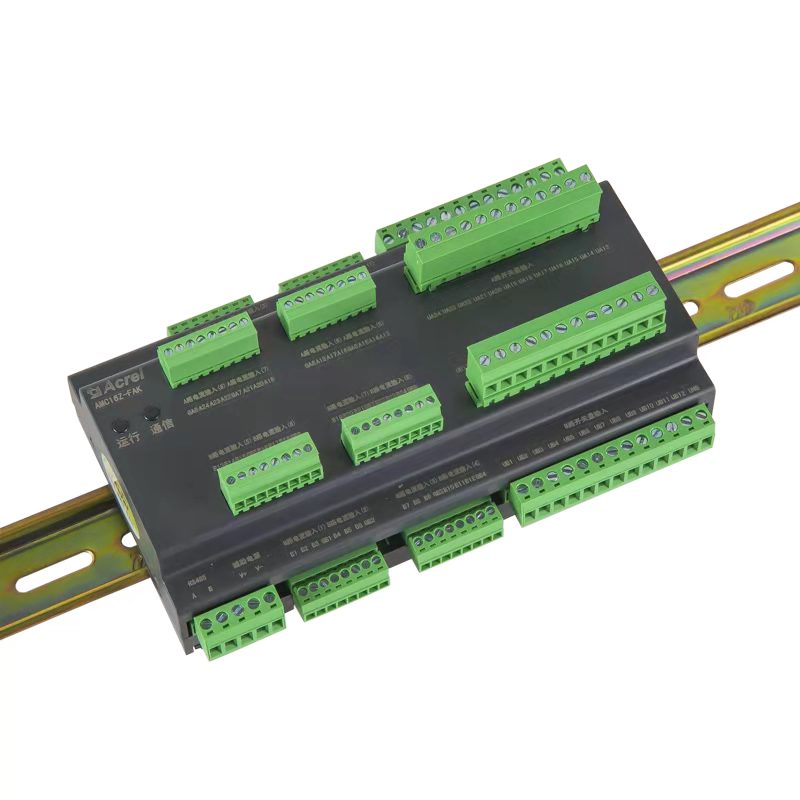

AMC16Z-FAK24 Multi Circuit Energy Meter

Home  >  Products  >  Data Center/Telecom Tower/Data Station Energy Meter  >  AMC16 Series Branch Circuit Energy Meter  >  AMC16Z-FAK24 Multi Circuit Energy Meter

AMC16Z-FAK24 Multi Circuit Energy Meter

AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Designed specifically for the power supply management of server in the data center
  • A+B independent 12 circuits（24 in total）
  • U, I, P, Q, S, PF, kWh, kvarh
  • 2nd-31st  Harmonic
  • kWh Class 0.5
  • DIN 35 mm
Panel Features





Wiring



Installation


Network Structure



Installation On-Site





  •
Related Products
  • ADW210-4S IoT Multi Circuit Energy Meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • AMC16-DETT DC Mutli Circuit Energy Meter
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Technical Parameters

Technical parameters

AMC16Z-FAK24

AMC16Z-FAK48

Measurement parameters

Voltage, current, frequency, active power, reactive power, power factor, active power, reactive power, switching state

2-31 times harmonics

Bus voltage

Rated

220VAC

Measurement range

±20%

Overload

Instantaneous voltage 2 times/second

Current outgoing line loop

Rated

50mA

Range

0.125~60mA

Overload

Duration 1.2 times, instantaneous 10 times/second

·

Input frequency

45~60Hz

Measurement accuracy

Outgoing line

Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1

Auxiliary power supply

Power supply by AMC16Z-ZA

Environment

Temperature

Working:-15℃~55℃ Storage:-25℃~70℃

Humidity

Relative humidity

Altitude

≤2500m

Communication

RS485/Modbus-RTU

Installation method

DIN35mm Guide rail or bottom plate mounting

·

IP grade

IP20

Class of pollution

2

Safety

Insulation

All terminals and the insulation resistance between the conductive pieces not below 100 m Ω

Withstand voltage

A-channel voltage and current signal // B-channel voltage and current signal // other ports meet AC2kV 1min between pairs, leakage current should be less than 2mA, no breakdown or flashover phenomenon.

Electromagnetic compatibility

Anti static interference

Level 4

Resistance to radiation of radiofrequency electromagnetic field

Level 3
