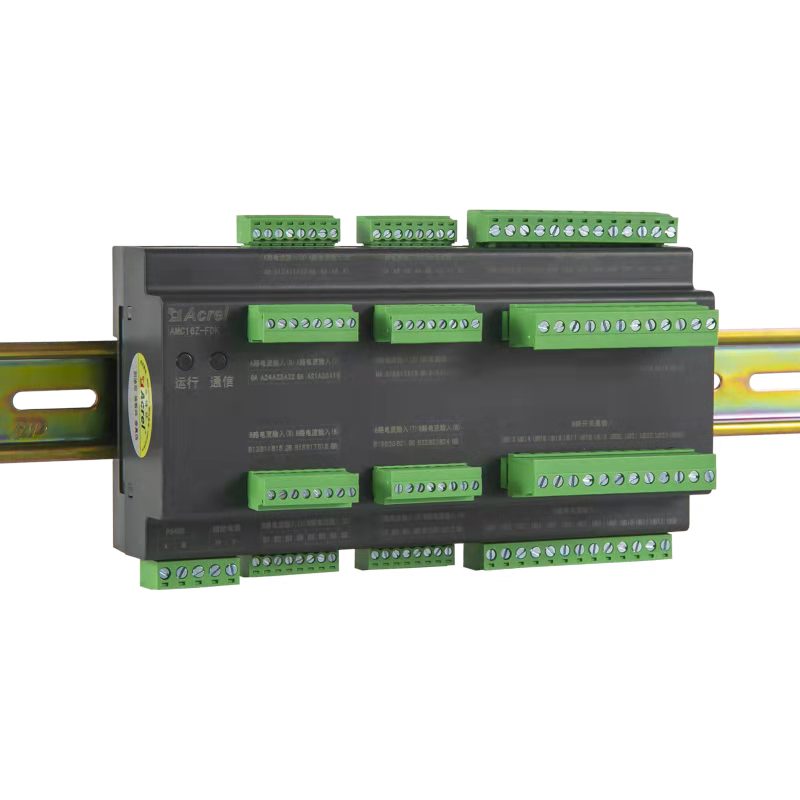

AMC16Z-FAK48 Multi Circuit Energy Meter

AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Designed specifically for the power supply management of server in the data center
A+B independent 24 circuits（48 in total）
U, I, P, Q, S, PF, kWh, kvarh
2nd-31st Harmonic
kWh Class 0.5
DIN 35 mm

Panel Features

Wiring

Installation

Network Structure

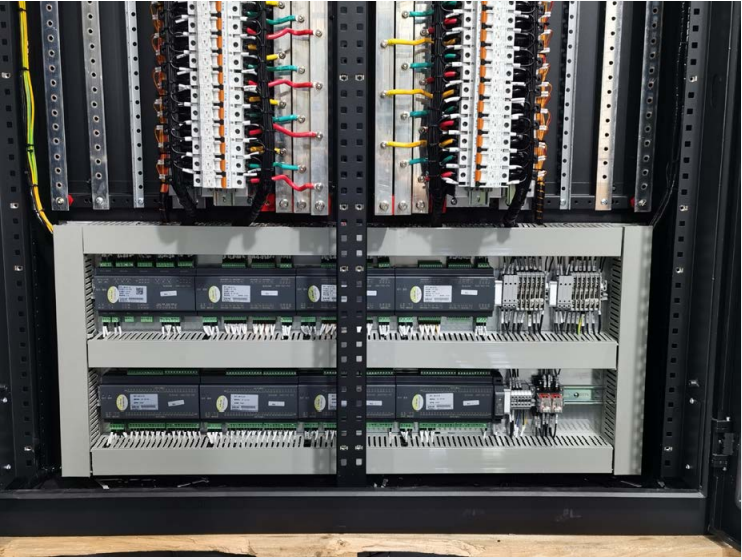

Installation On-Site

Related Products

AMC16Z-FAK24 Multi Circuit Energy Meter

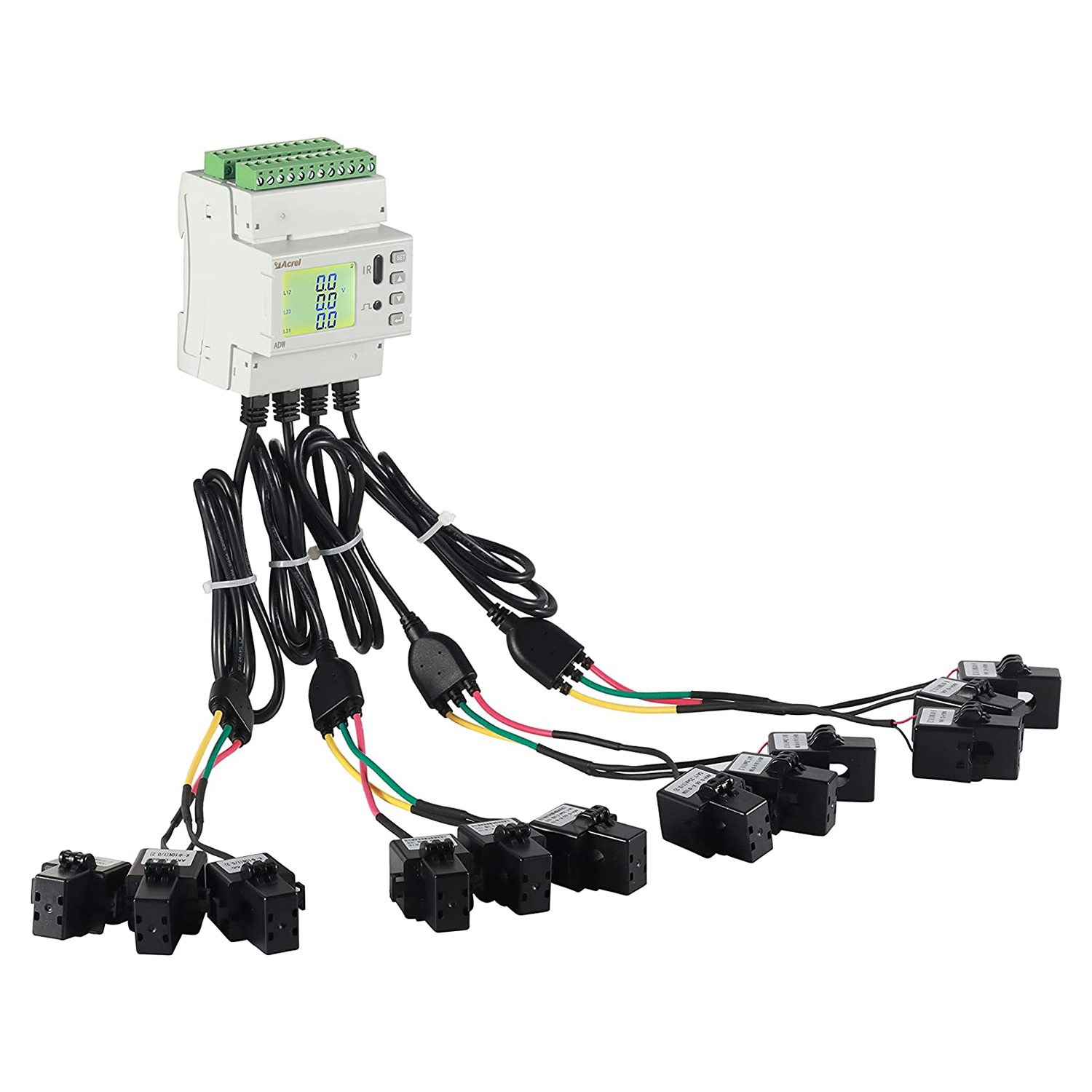

ADF400L Multi Channel Energy Meter
ADW210 IoT Multi Circuit Energy Meter
AWT100-4G Wireless Communication Terminal

Data Sheet

Technical Parameters

Model		AMC16Z-FAK48
Measuring parameters		voltage,current,power,energy and DI DO
Busbar voltage	Rated voltage	220VAC
	Measuring range	±20%
	overload	instant voltage 2 times/second
current outlet circuit	Rated range	50mA（50ma output current transformer)
current outlet circuit	overload	sustained 1.2times,instantaneous current 10times/second
accuracy	outlet	current,voltage class: 0.5 power,energy: 1
Auxiliary power supply		DC12V
Communication		RS485/Modbus-RTU
Installation		DIN35mm or panel type
Waterproof level		IP20
