AM5 Series 35kV Medium Voltage Protection Relay

AM5 series microcomputer protection device are applicable to the user substation which the input voltage is 35kv or above. AM5 can be used to protect and control the user substation, and is be widely used to Power Industry, Water conservancy industry, Traffic Industry, Oil industry, Chemical industry,Coal Industry, Metallurgical Industry and so on.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

A complete set of protection, related to the application;
8 current input, 4 voltage input, 16 DI, 10 DO;
Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
1 RS232 for user update;
1 GPS for GPS timing;
More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
Powerful graphic programmable Logic.

Panel Features

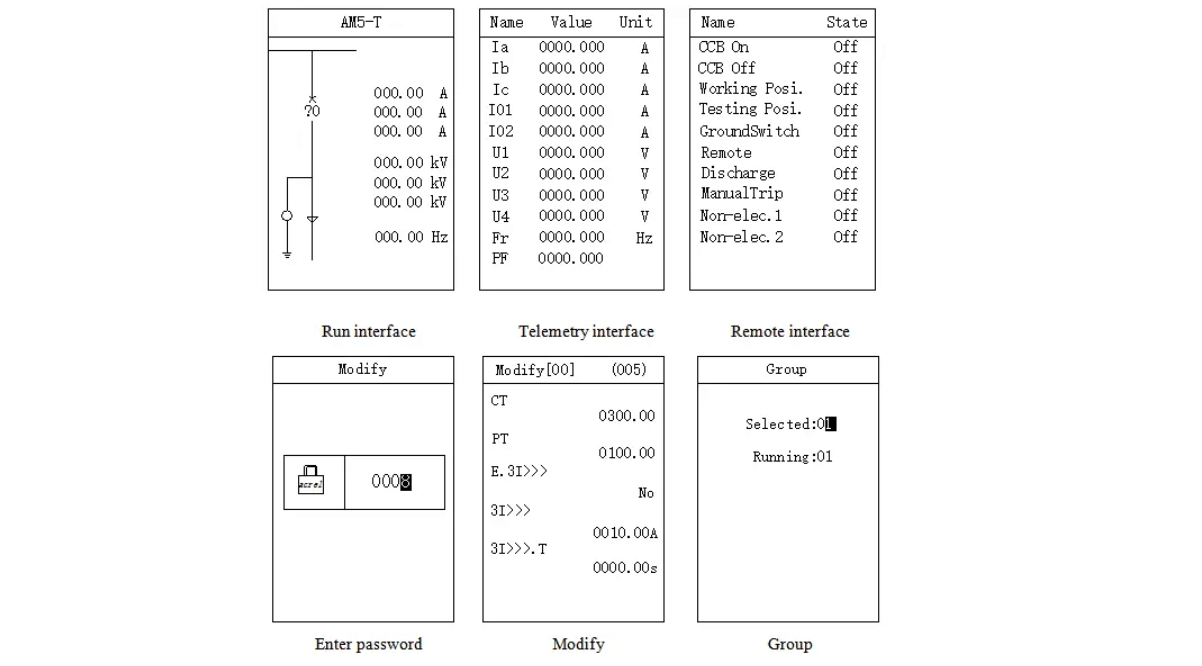

LCD Display

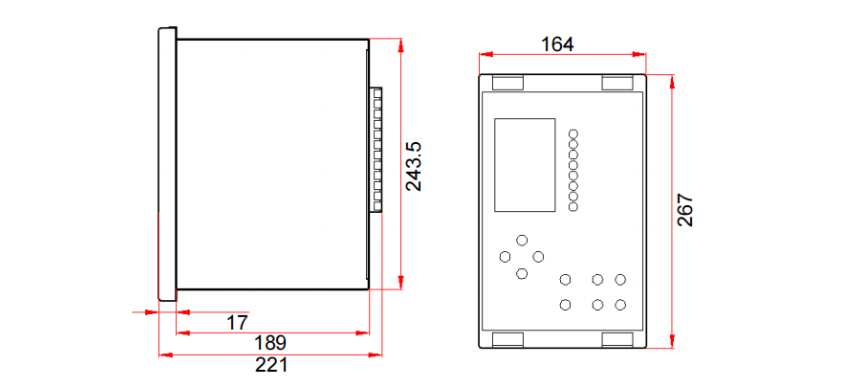

Dimension

Dimension
Cut-out Dimension

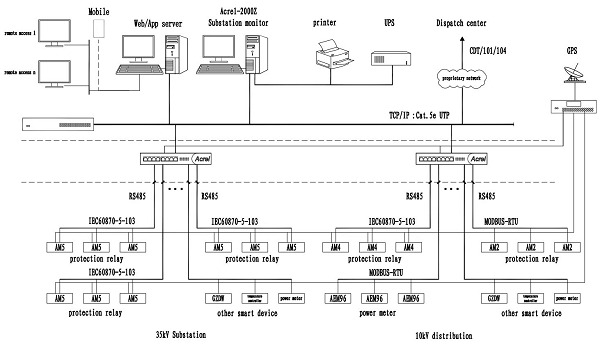

Network Structure

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

Main Parameters

Power Supply	Power supply: AC/DC220V,Or AC/DC110V,oR DC48V(Reference the wiring diagram)
	Range: Power supply x (1±20%）
	Maximum power consumption:≤10W（DC）
Rated Voltage	Rated Voltage:AC100V
	Range:1-120V
	Accuracy:±0.5%
	Power Consumption:≤0.5VA(Single phase)
	Overload capacity:1.2 times rated voltage for continous work;2 times for 10 seconds
Rated Current	Rated current: AC 5A/1A(See the device wiring diagram)
	Range:0.04In~15In
	Power consumption: ≤0.5VA(Single phase)
	Over capacity:2 times rated current for continuous work;40 times for 1 second
Frequency	Rated frequency:50Hz or 60 Hz
	Range:45~55Hz
	Accuracy:±0.1Hz
Digital Inut	Rated Voltage: AC/DC220V,AC/DC110V,DC48V(Similar to power supply)
	Voltage Range: Rated voltage x (1±20%）
	Power Consumption:≤1W(DC220V)(Single channel)
Digital Output	Mechanical life:≥10000 times
	Switching capacity:≥1000W,L/R=40ms
	On current:continuous≥5A short time(200ms)≥30A
	Interrupting capacity:≥30W,L/R=40ms
