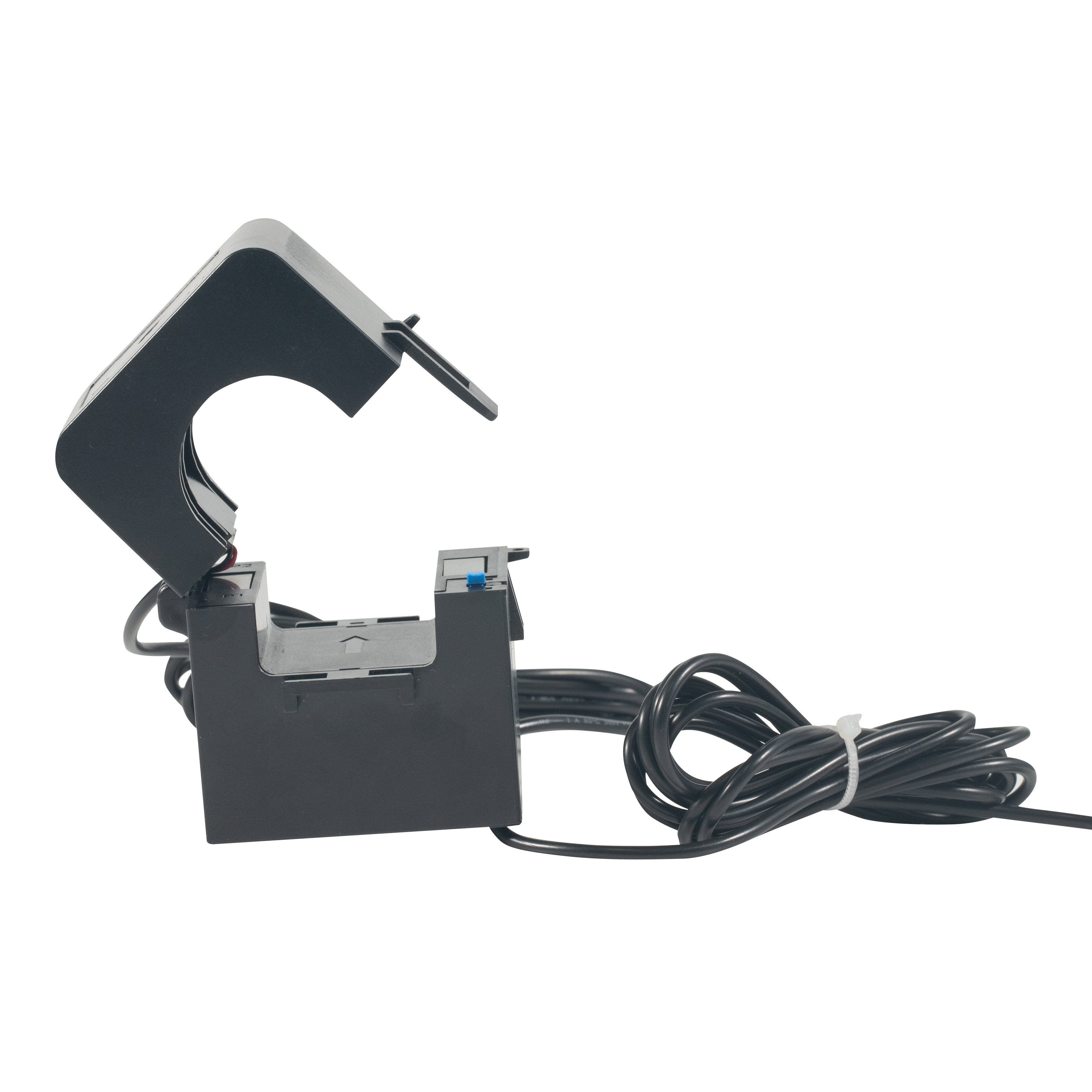

AKH-0.66/K-SW open type current transformer sealed

Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with panel meters or relays.It can help to measure the current or protect the equipment.



8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Security factor: FS＜5
  • Maximum system voltage: 720V AC
  • Test voltage: 3kV AC(1min)
  • Rated frequency: 50/60Hz
  • Rated short-time thermal current: Ith=40~60In
  • Rated secondary current: X/20mA (X/100mA upon request)
  • Rated primary current: Ranging up to 6000A
  • Protection level: IP30
  • Casing: Non-flammable, polycarbonate self-extinguishing ABS

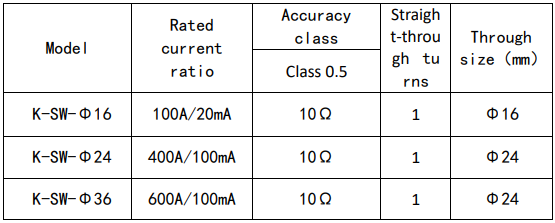

Parameters





Installation Structure





Application


Conclusion
The emergence of AKH-0.66/K-SW series current transformer, with abnormal open alarm, stop on the power event reporting and other functions, but also for the enterprise to reduce the cost of human and material resources, due to the huge market, once the formation of production capacity, but also can drive the rapid development of other industries.
AKH-0.66/K-SW series current transformer can solve the above problems. This transformer has a beautiful appearance and is easy and simple to install and maintain. As shown in Figure 2, the transformer has the following advantages.
  1. AKH-0.66/K-SW series current transformer, installation without disconnecting the electricity, you can operate with electricity, close the direct use of the site installation is simple, reducing labor costs.
  2. AKH-0.66/K-SW series current transformer, there are four leads in the module, two to transmit the current signal, two to transmit the switching signal
  3. AKH-0.66/K-SW series current transformers, when the buckle is not locked or the transformer is aging, the casing is broken, the upper and lower casings pop open, the iron core is in poor contact, and the switch stuck on the lower casing of the transformer protrudes The button will pop up, the switch will be disconnected, and the switching signal will terminate the transmission, which will prompt the open-type low-voltage transformer to stop working.
  4. AKH-0.66/K-SW series current transformer, the upper and lower shells with lead seal holes, once the installation is completed immediately lead seal.
Installation On-Site





  •
