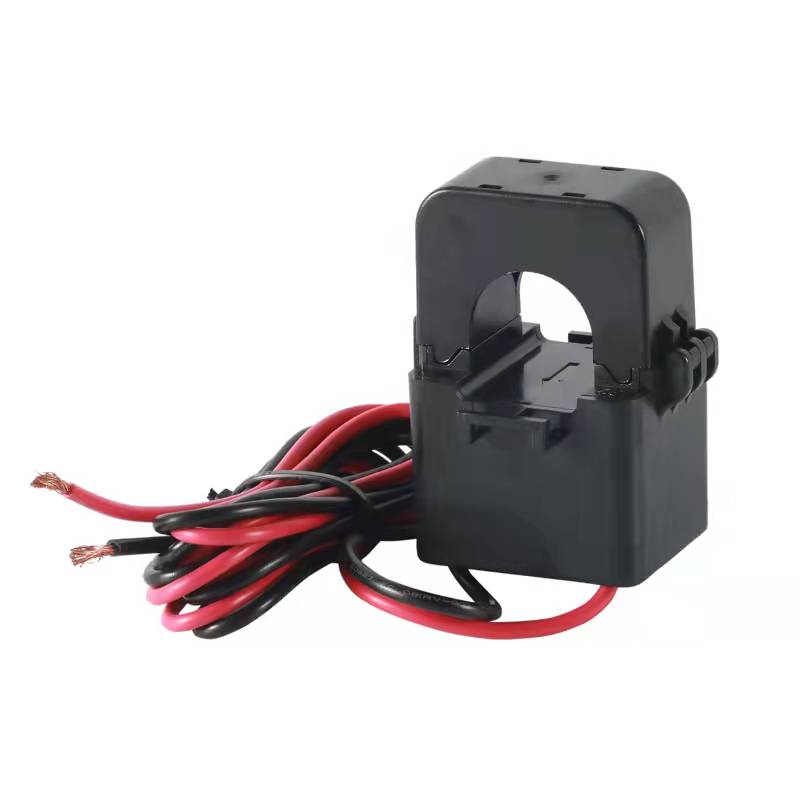

AKH-0.66/K-Φ 333mV Split Core Current Transformer
AKH-0.66/K-Φ 333mV Split Core Current Transformer
The appearance is nice and the installation and wiring are convenient. AKH-0.66/K-Φseries split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. They save the manpower, material resources and financial resources and improve the efficiency of users.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Major Characteristics
Parameters
Installation Structure
Application
Installation On-Site
Related Products
-
PZ72L-E4 Three phase Energy meter
-
ADF400L-EY Multi Channel Prepaid Energy Meter
-
APM830 Three Phase Power Quality Analyzer
-
AWT100-4G Wireless Communication Terminal
Data Sheet
|
Standards |
IEC/EN61869-1, IEC/EN61869-2 |
|
Security factor |
FS＜5 |
|
Maximum system voltage |
720V AC |
|
Test voltage |
3kV AC(1min) |
|
Rated frequency |
50/60Hz |
|
Rated short-time thermal current |
Ith=40~60In |
|
Rated dynamic current |
Idyn=2.5Ith |
|
Rated secondary current |
X/5A (X/1A upon request) |
|
Rated primary current |
400A |
|
Continuous overload |
120%In |
|
Protection leve |
IP30 |
|
Casing |
Non-flammable, polycarbonate self-extinguishing ABS |
|
Operating temperature |
‘-25℃-+50℃ |
|
Storage temperature |
’-40℃-+80℃ |
|
Humidity (no condensation) |
≤90%RH |
