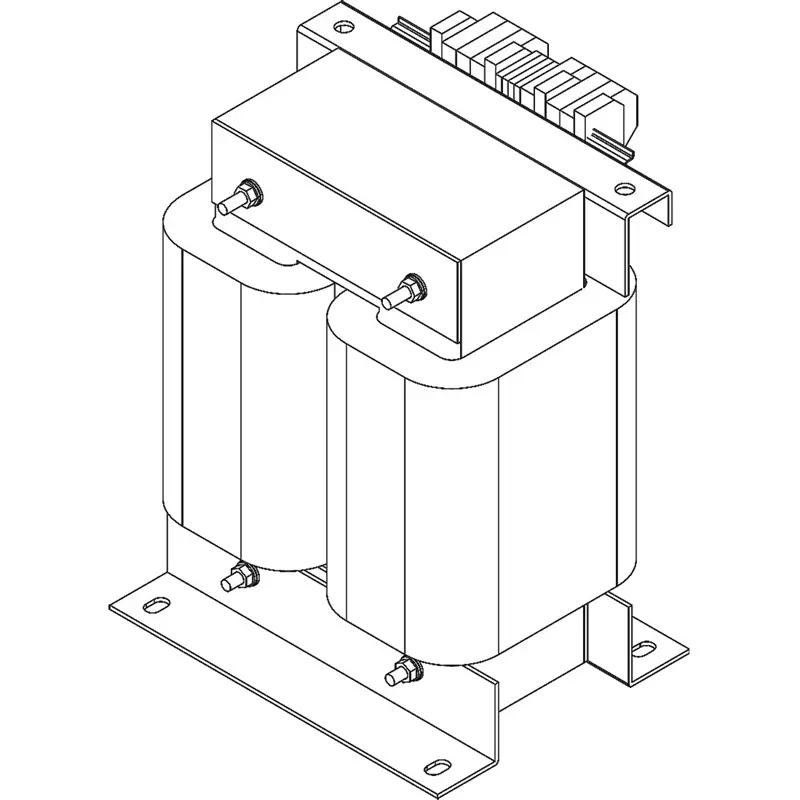

AITR Series Medical Insulation Transformer
AITR Series Medical Insulation Transformer
AITR series isolation transformer is specially used in medical IT system, and the core superposition adopts the silicon steel sheet imported from Japan, which has very small losses. The windings are treated with double insulation and have electrostatic shielding layer, which reduces electromagnetic interference between windings. The PT100 temperature sensor is installed in the wire bag to monitor the temperature of transformer. The whole body is treated with vacuum invasion paint, which increases mechanical strength and corrosion resistance. The product has good temperature rise performance and very low noise.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Major Characteristics

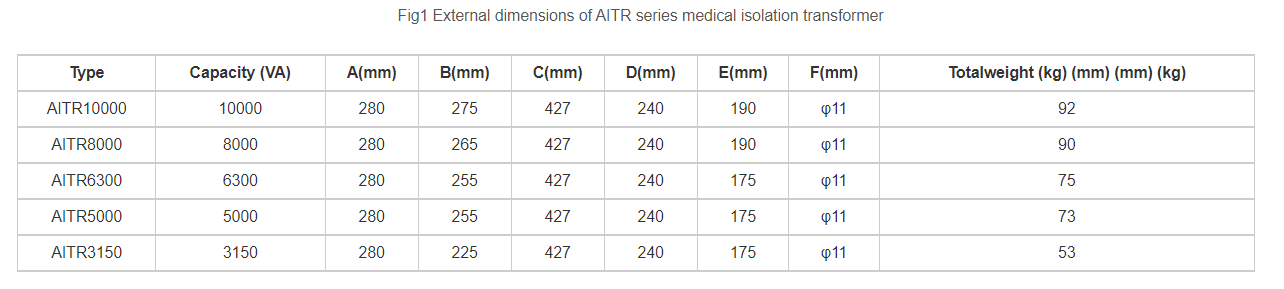

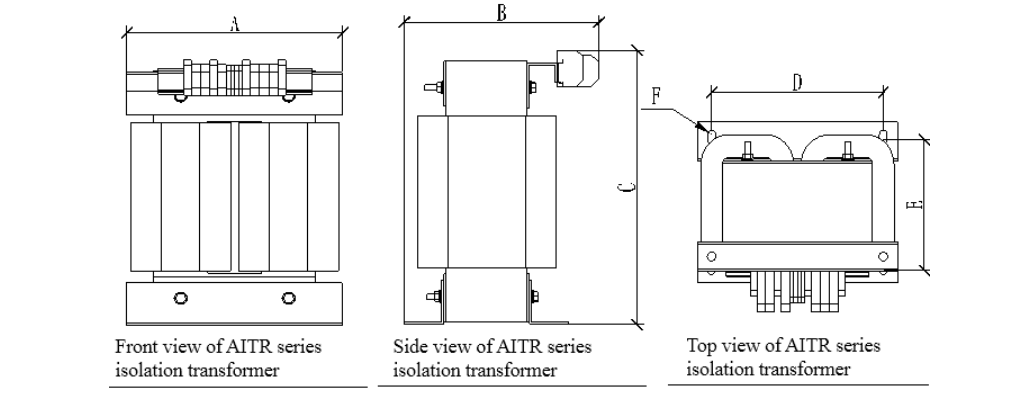

Dimension

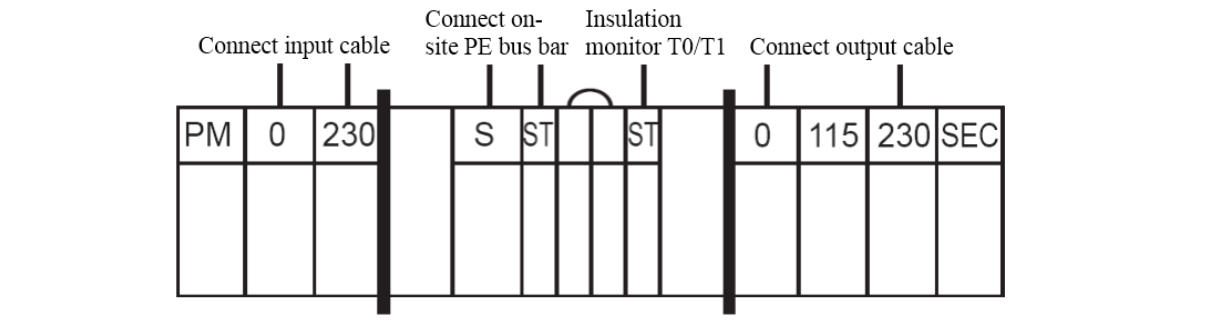

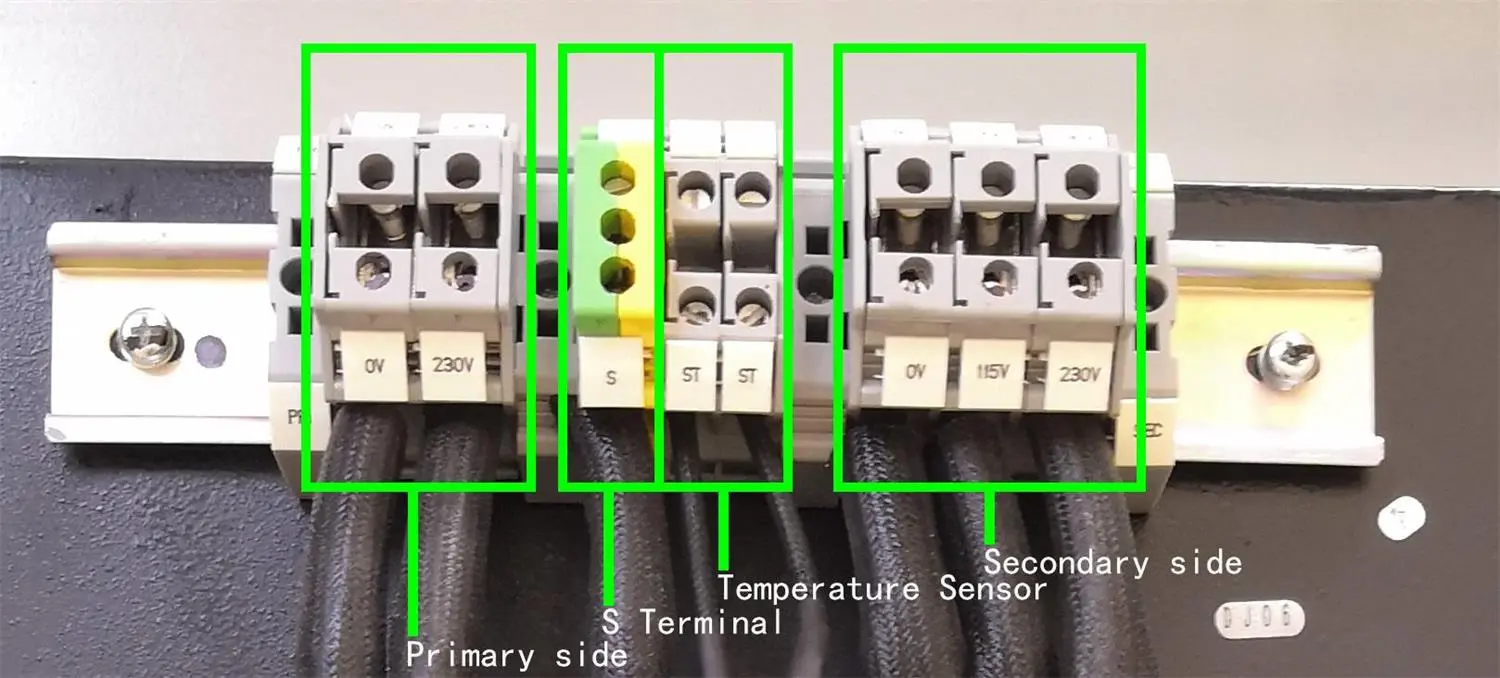

Wiring
Product Selection
Network Structure
Installation On-Site
Related Products
-
PZ72L-E4 Three phase Energy meter
-
ADF400L-EY Multi Channel Prepaid Energy Meter
-
APM830 Three Phase Power Quality Analyzer
-
AWT100-4G Wireless Communication Terminal
Data Sheet
|
Rated Capacity |
3.15kVA/5kVA/6.3kVA/8kVA/10kVA |
|
Frequency |
50/60Hz |
|
Rated input voltage |
230V |
|
The output voltage |
230V/115V |
|
Inrush current |
<12In |
|
Leakage Current |
<200uA |
|
No-load output voltage |
<235V |
|
No-load output current |
<3% In |
|
Short-circuit voltage |
<3% Un |
|
Efficiency |
>96% |
|
Maximum ambient temperature |
<40℃ |
|
No-load temperature rise |
<33℃ |
|
Full load temperature rise |
<76℃ |
|
Withstand voltage |
4200V/Min |
|
Insulation Class |
H |
|
Noise Level |
<40dB (A) |
|
Input voltage |
AC220V |
|
Frequency |
50/60HZ |
|
Power |
3W |
|
Output voltage |
DC24V |
|
Voltage regulation |
≤30% |
|
Temperature rise |
≤20 ℃ |
|
Withstand voltage |
4000V AC/Min |
