AIM-M10 Medical Insulation Monitor

AIM-M10 medical insulation device instrument adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit. AIM-M10 is usually combined with AITR series medical isolation transformer, AKH-0.66P26 current transformer and AID10/150 centralized alarm display device.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Insulation monitoring for medical IT systems
Load and temperature monitoring of isolation transformer
Device disconnection monitoring
Power consumption:≤5VA
Permissible extraneous DC voltage Ufg:≤DC280V

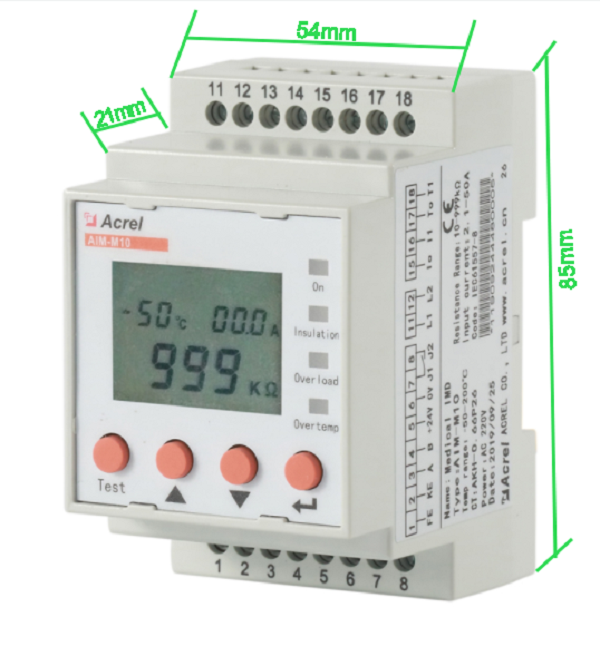

Dimension

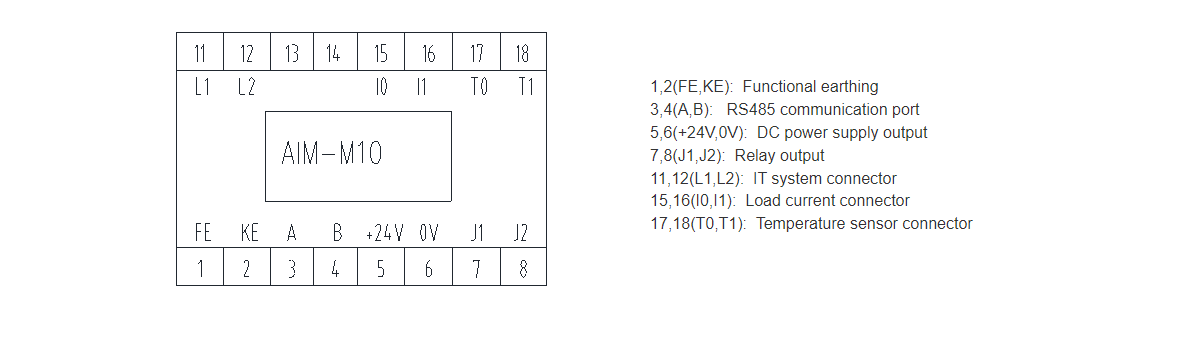

Wiring

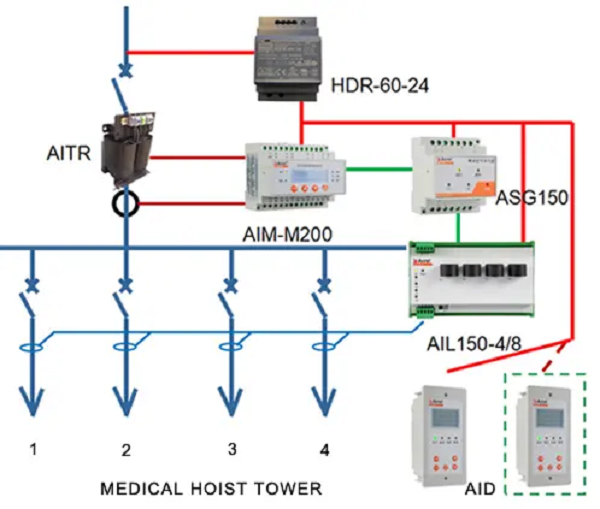

Network Structure

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

AUX Power	Voltage	AC220V±10%	Temperature monitoring	Thermal resistor	2 Pt100
AUX Power	Power consumption	≤5VA		Measuring range	-50~+200℃
Insulation Monitoring	Resistance measuring range	10~999kΩ		Alarm value range	0~+200℃
	Response value	50~999kΩ	Alarm output	Output mode	1 Relays
	Relative uncertainty	±10%	Alarm output	Contact rating	AC 250V/3A DC 30V/3A
	Response time	≤3s	Environment	Operating temperature	-10~+55℃
	Permissible system leakage capacitance Ce	≤5uF		Transport temperature	-25~+70℃
	Measuring voltage Um	≤12V		Storage temperature	-25~+70℃
	Measuring current Im	≤50uA		Relative humidity	5%-95%, No condensation
	Impedance Zi	≥200kΩ		Altitude	≤2500m
	Internal DC resistance Ri	≥240kΩ	IP degree		IP30
	Permissible extraneous DC voltage Ufg	≤DC280V	Rated impulse voltage / pollution degree		4KV/Ⅲ
Load Current Monitoring	Measuring Value	2.1~50A	EMC		IEC 61326-2-4
	Alarm Value	5~50A	Communication		RS485(Modbus-RTU)
			Communication		RS485(Modbus-RTU)
