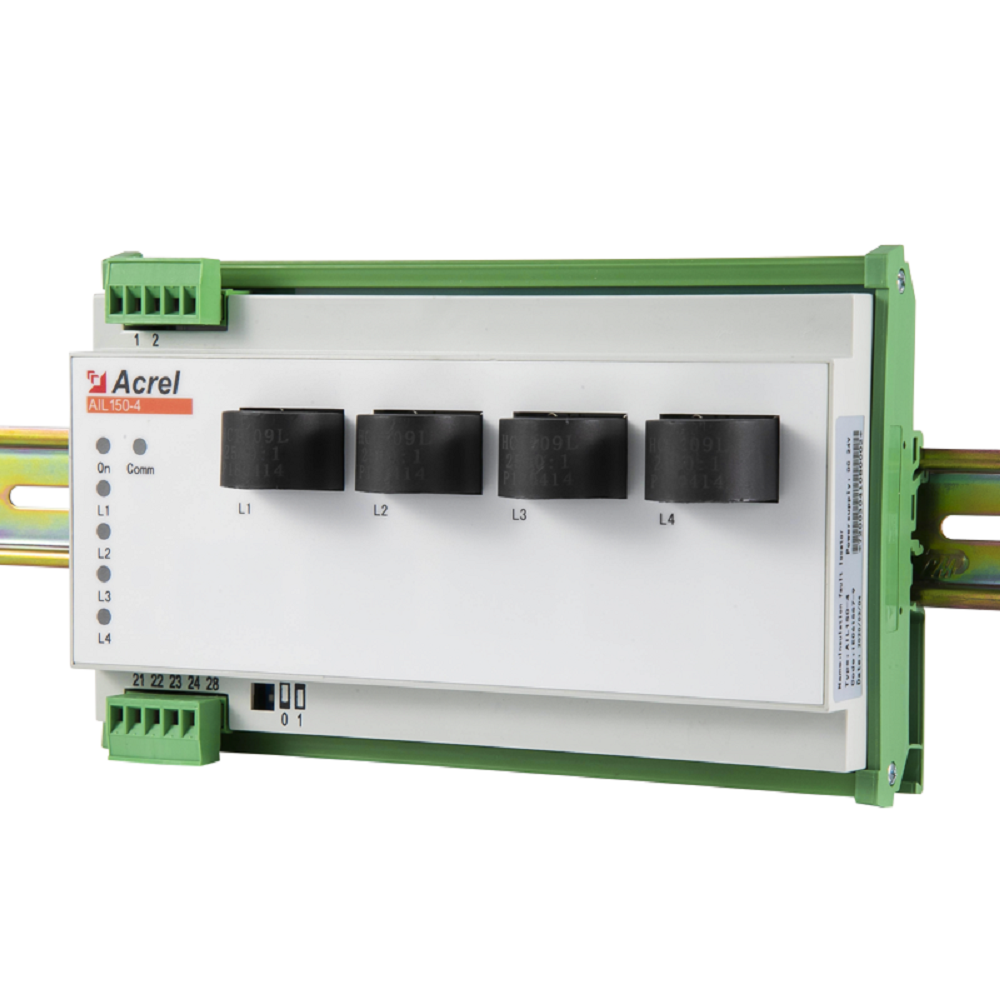

AIL150-4/8 Insulation Fault Locator

AIL150-4/8  4/8 channels Insulation Fault Locator in conjunction with AIM-M200 medical intelligent insulation monitor and ASG150 test signal generator,are designed for insulation fault location in medical IT systems.The locating current generated by ASG150 are detected using the integrated measuring current transformers and evaluated by the insulation fault locators.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

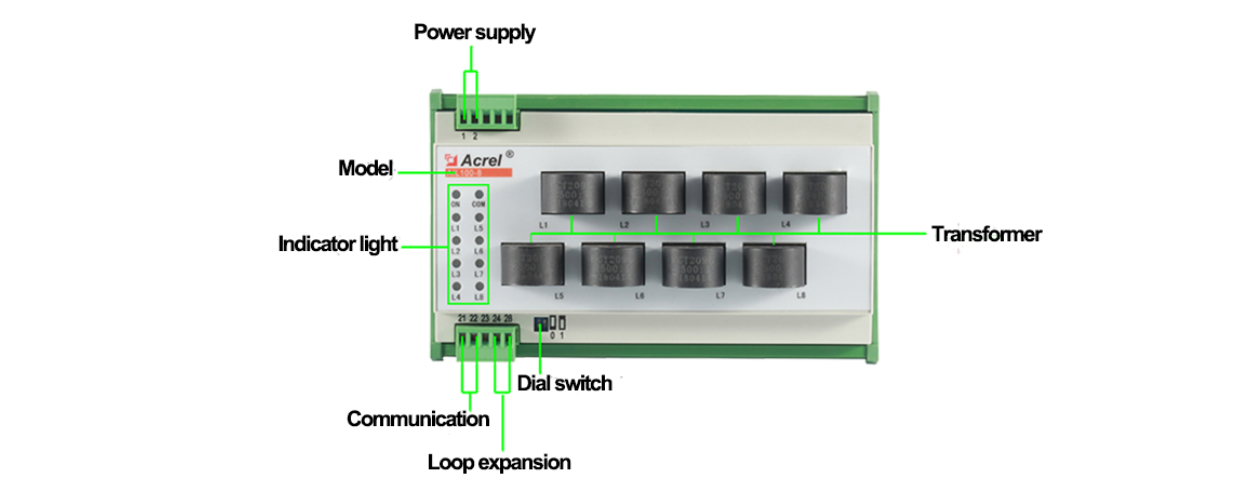

Major Characteristics
  • Insulation fault location in AC IT systems
  • AIL150-4: 4 measuring channels
  • AIL150-8: 8 measuring channels
  • LED indicators: On, Comm
  • CAN bus
  • Auxiliary power supply: DC24V

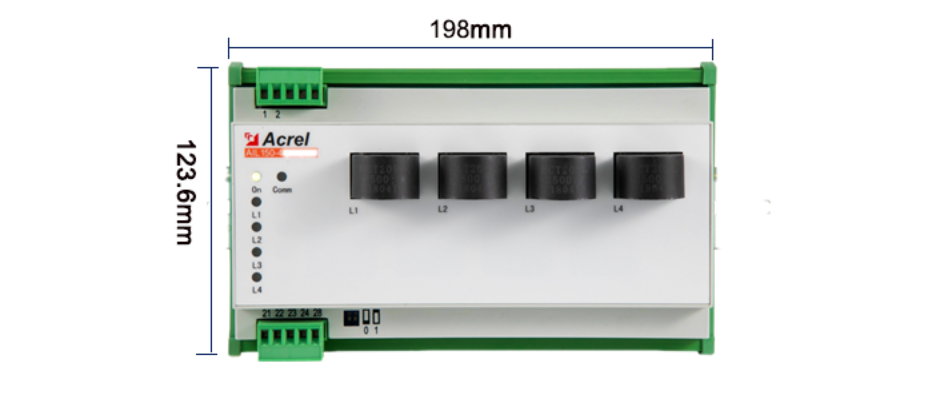

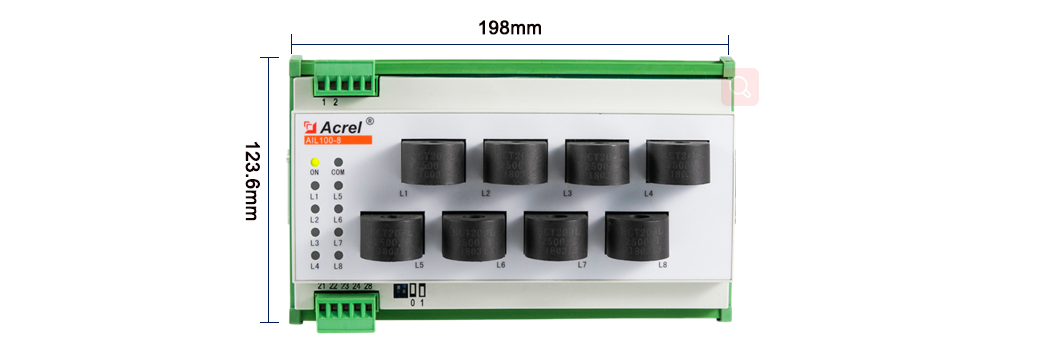

Dimensions






Wiring



Application


Network Structure
Installation On-Site





  •
Related Products
  • PZ72L-E4 Three phase Energy meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • APM830 Three Phase Power Quality Analyzer
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet

Auxiliary power

Voltage

DC24V

Power consumption

2VA

Monitored system

Rated voltage

0-242V AC

Frequency

45-60HZ

Location signals

Location voltage

＜25V

Location current

＜1mA

Fault location

Maximum channels

8

Response time

＜2s

Communication

Bus

CAN

Protocol

Custom protocol
