AID120 Alarm And Display Indicator

Home > Products > Medical/Industrial IT insulation Devices > AID120 Alarm And Display Indicator

AID120 Alarm And Display Indicator

AID series alarm and display indicator are remote display and audible and visible alarm devices. AID duplicates fault, alarm and operating message of monitoring devices. When fault occurs, AID gives audible and visible signal to medical staff and technical staff. Additionally, response value of AIM-M series monitoring device can be set by AID remotely. AID Series alarm and display device have three types: AID10, AID120 and AID150, which shall be arranged in operating room or nursing station so that it can be permanently monitored by medical staff.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Remote monitoring
Mute button
Test button
Auxiliary power supply: DC24V
RS485(MODBUS-RTU)

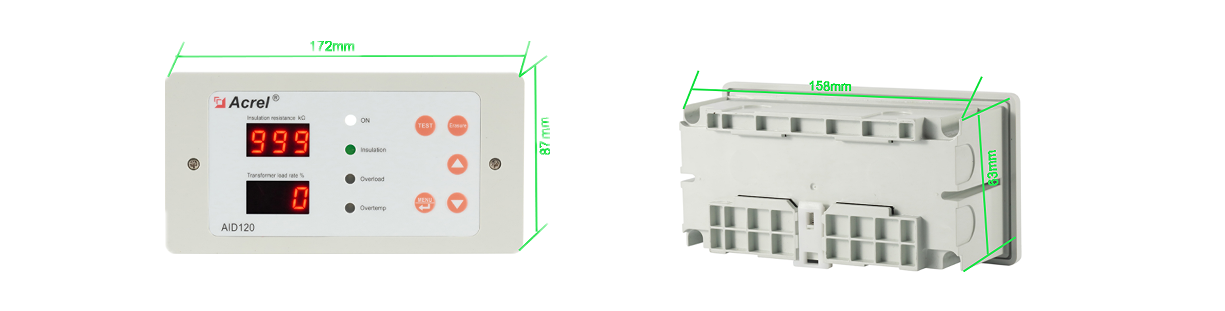

Dimension

Application

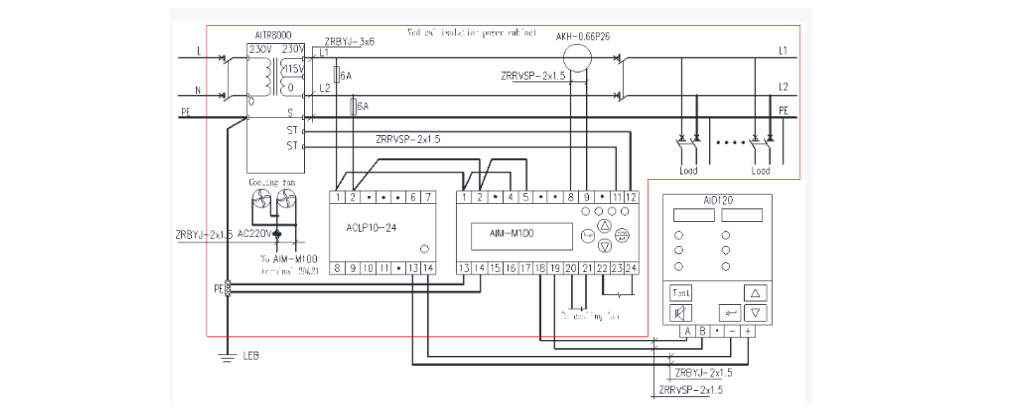

Network Structure

Installation On-Site

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

Aux Power	Voltage	DC 24V
	Power Consumption	≤0.6W
Insulation Measure Range		10~999kΩ
Insulation Alarm Range		50~999kΩ
Transformer Load Rate		Percentage display
Current Alarm Range		14A、18A、22A、28A、35A、45A
Temperature Alarm Range		0~+200℃
Alarm Mode		Audible and visual alarm
Alarm Type		Insulation fault, overload, over temperature, device failure
Communication Mode		RS485（MODBUS-RTU）
Display Mode		LED display
