AID10 Remote Alarm Indicator

Home  >  Products  >  Medical/Industrial IT insulation Devices  >  AID10 Remote Alarm Indicator

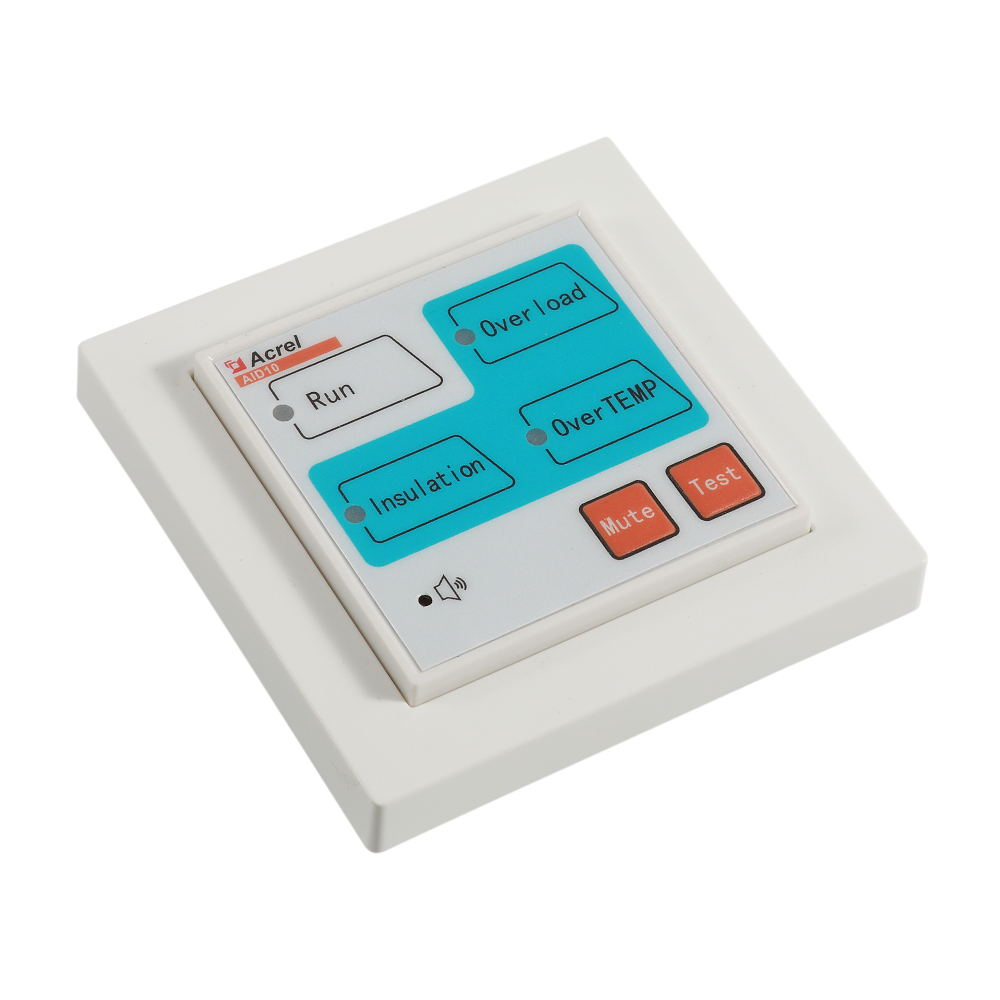

AID10 Remote Alarm Indicator

AID series alarm and display device is a remote display and sound and light alarm device by using advanced fieldbus communications technology. The device can be installed on the operating room or ICU, the medical staff can easily know the status of medical isolated power systems, and the type of fault when the system fails.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Remote monitoring
  • Mute button
  • Test button
  • Auxiliary power supply: DC24V
  • RS485(MODBUS-RTU)
  • Auxiliary power supply:AC/DC 85~265V
  • RS485 interface, Modbus-RTU protocol

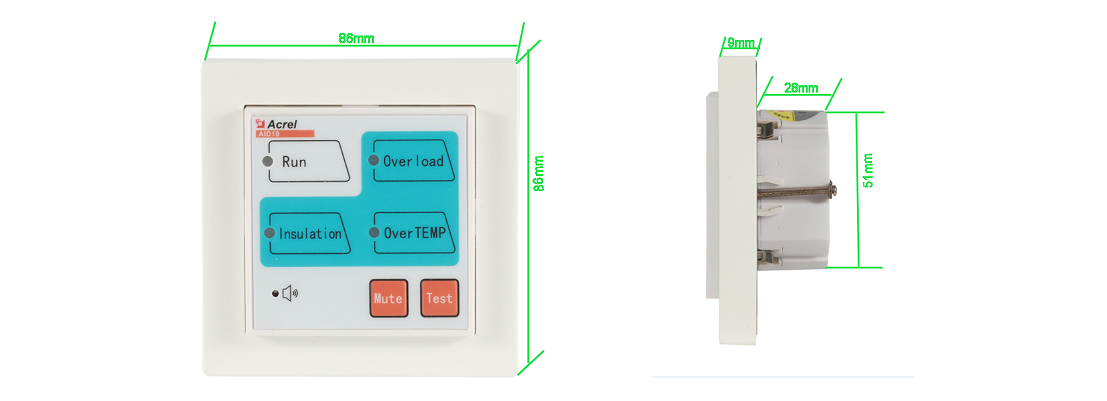

Panel Features

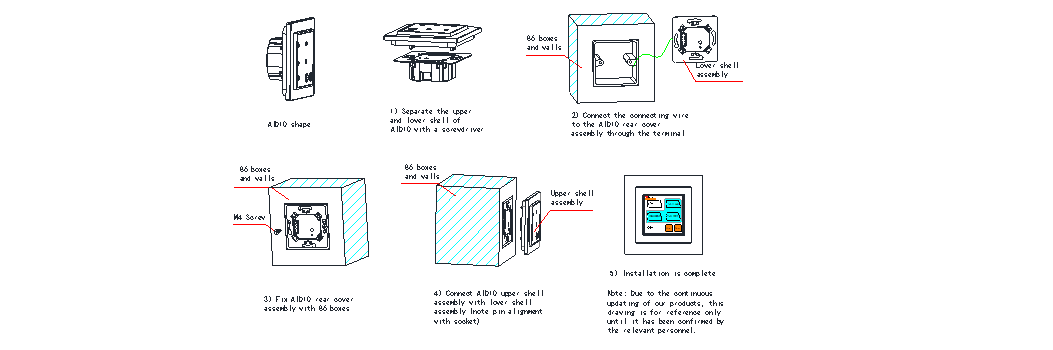

Installation

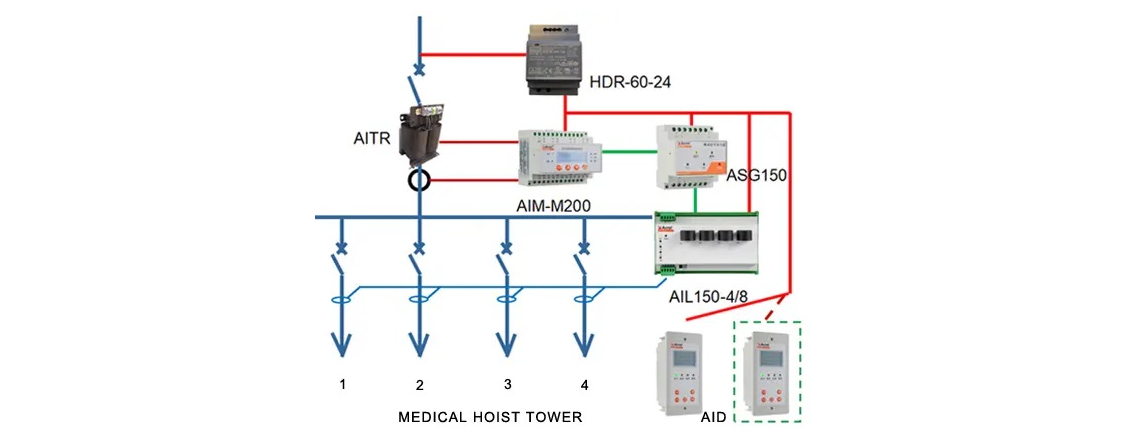

Network Structure
Installation On-Site





  •
Related Products
  • PZ72L-E4 Three phase Energy meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • APM830 Three Phase Power Quality Analyzer
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet

Parameter Type

AID10

AID150

Auxiliary power supply

Voltage

DC 24V

Consumption

< 0.6W

Insulation alarming range

——

14A, 18A, 22A, 28A, 35A, 45A

Temperature alarm setting range

——

0~+200℃

Number of monitored systems

1

16

Alarm method

Sound-light alarm

Alarm type

Insulation failure, overload, overheat, equipment failure

Communication mode

RS485, MODBUS-RTU

Display mode

LED display

128×64 LCD display
