Jiangsu Acrel Electrical Manufacturing CO.,LTD

Tel:+86-18761593924

E-Mail:lukas.lu@email.acrel.cn

AGF-AE-D Solar Inverter Energy Meter

Home  >  Products  >  Energy Management  >  AGF-AE-D Solar Inverter Energy Meter

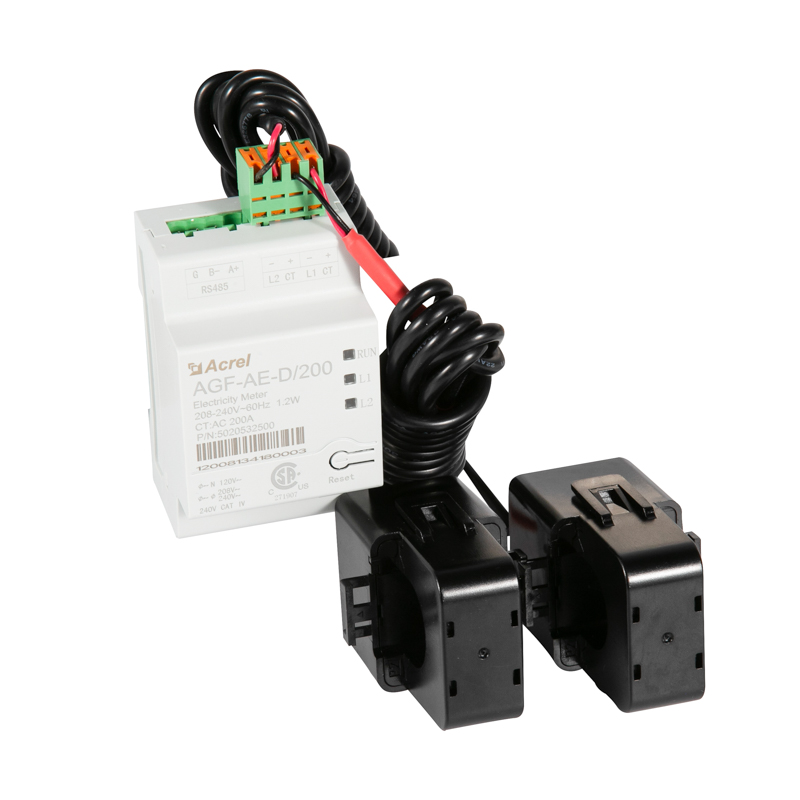

AGF-AE-D Solar Inverter Energy Meter

In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.



8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

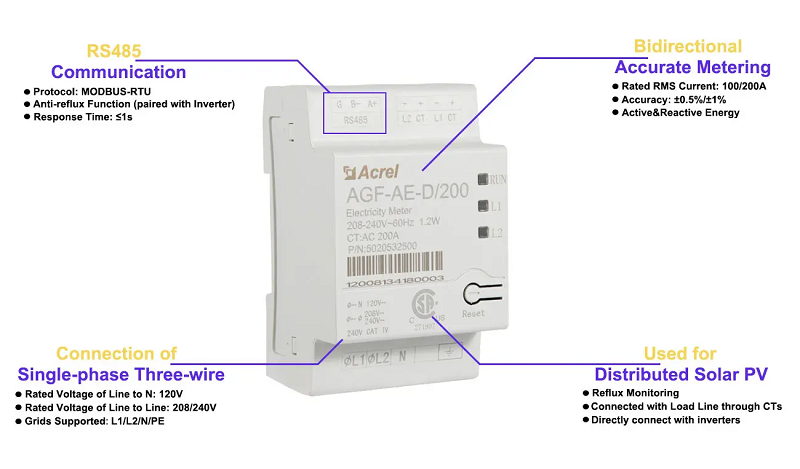

Major Characteristics
  • Single phase three wire
  • Rated voltage: AC 120V/208V，240V(88%~110%)
  • Rated current: AC 100A ， 200A
  • Standard&Certificate:UL1741;TUV
  • Application: Using in distributed Solar PV and Anti-reflux Inverters
  • Communication:RS485 (MODBUS-RTU)

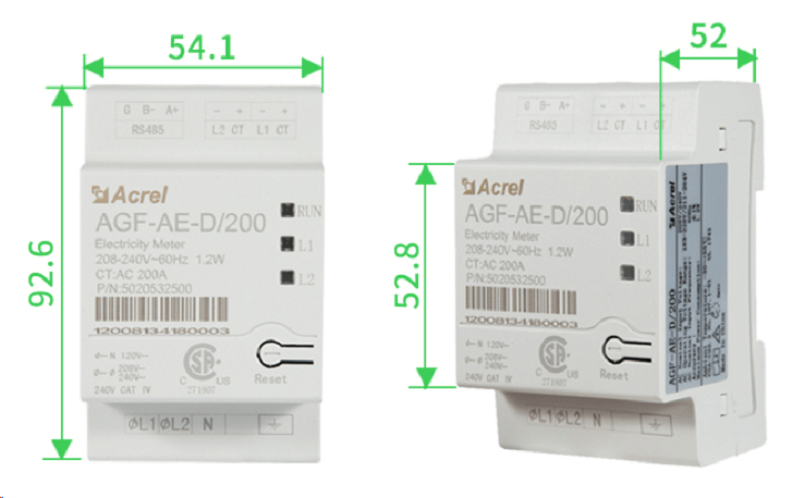

Dimension

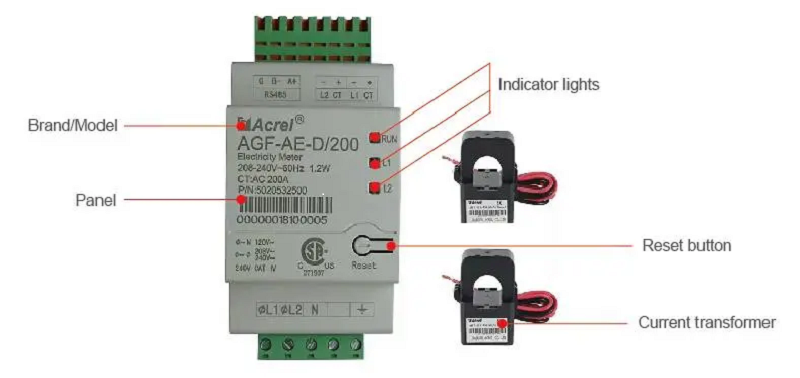

Panel Features



Wiring


Application




Installation Sturcture





Related Products
  • PZ72L-E4 Three phase Energy meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • APM830 Three Phase Power Quality Analyzer
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Main Functions



Meter Electrical Service

Units



AGF-AE-D/100

AGF-AE-D/200



Rated Voltage-Line to N

120

V

Rated Voltage-Line to Line

208/240

V

Extended Voltage Range

88%~110%



AC Frequency

60

Hz

Grids Supported

L1/L2/N/PE



Power Consumption

1.2

W

Communication

Meter Communication Interfaces

RS 485



Response Time

≤1

S

Meter Accuracy

Rated RMS current

100

200

A

1%-100% of CT Current

±0.5

±1

%

Current Transformers

Number of Supplied Current Transformers

2



Dimensions

I.D:15 O.D:35

70.5×54.5×39 (H×W×D)

mm

Standard Compliance

Safety

UL1741



Installation Specifications

Dimensions(H×W×D)

54.1×87.8×52

mm

Weight

0.2

kg

Operating Temperature Range

-30~55

℃

Relative Humidity (noncondensing)

5 - 90

%

Mounting Type

DIN-Rail，35mm



CONTACT US

CONTACT US
