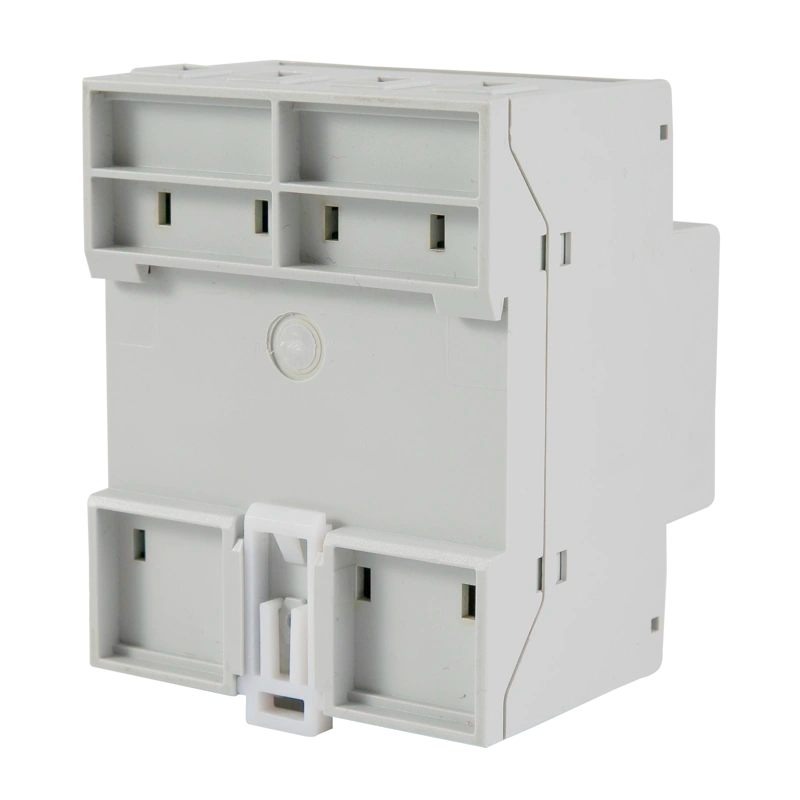

ADL400 Three Phase Din Rail Energy Meter

ADL400 is a smart meter designed for power supply system, industrial, mining enterprises and utilities to calculate the electricity consumption and manage the electric demand.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Measurement of electrical parameters,U、IP、Q、S、PF、Hz
Measurement of kWh, kWh (positive and negative),kvarh (positive and negative),A, B, C phase positive kWh
Maximum demanded and Frozen data on last 48 months,last 90days
Measurement of harmonics,2~31ST harmonic
Frequency:45～65Hz
Energy accuracy,Active energy,Class 0.5s;reactive energy,Class 2
Key programming:3 keys
LCD display,12 digits
Accuracy of Active power: 0.5s
RS485/Modbus-RTU

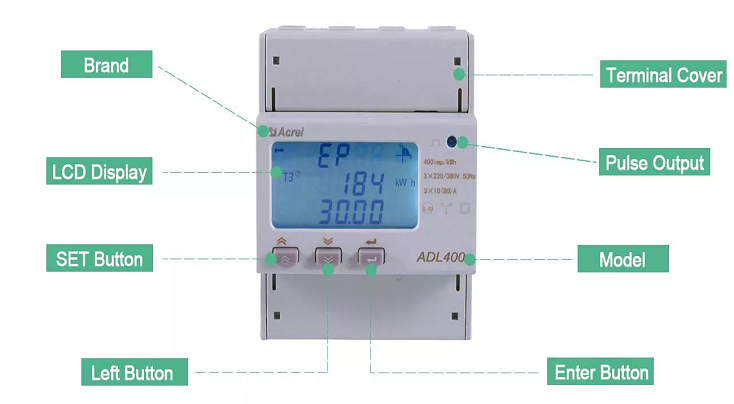

Panel Features

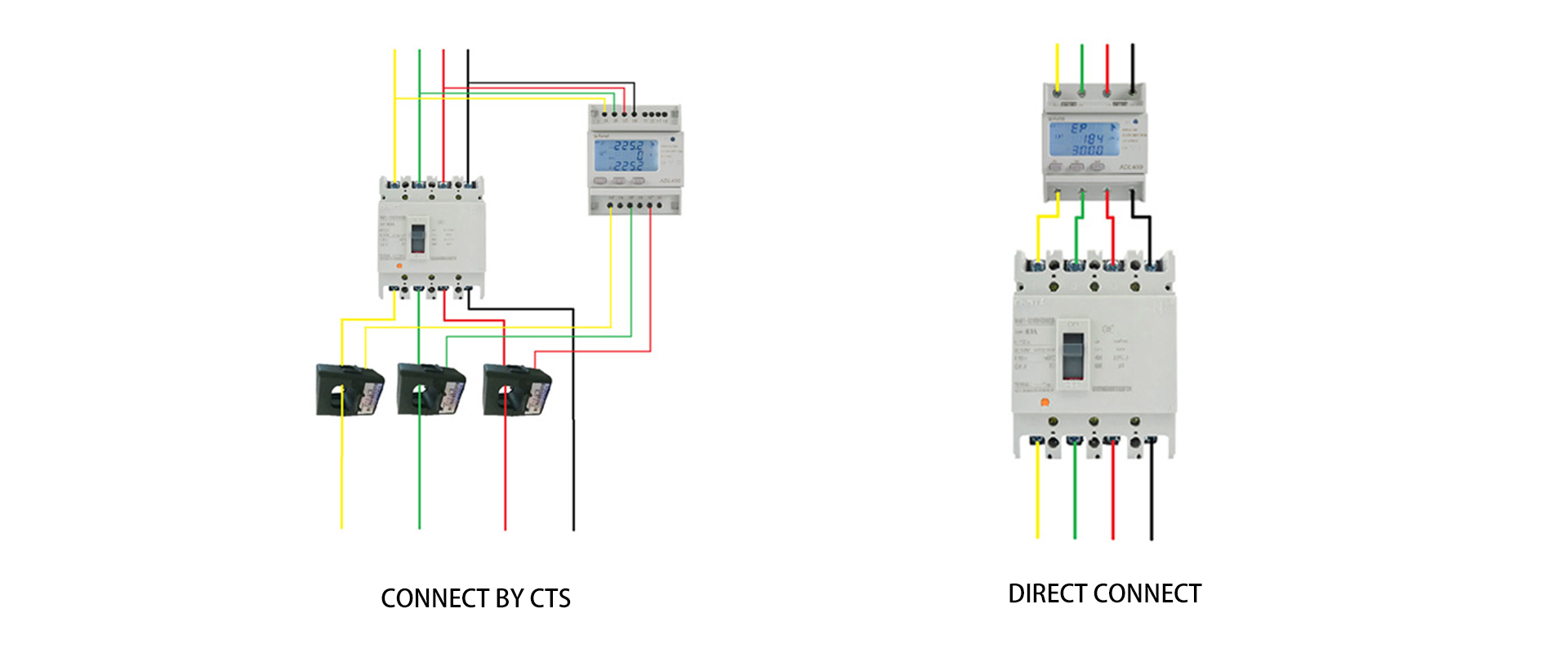

Wiring

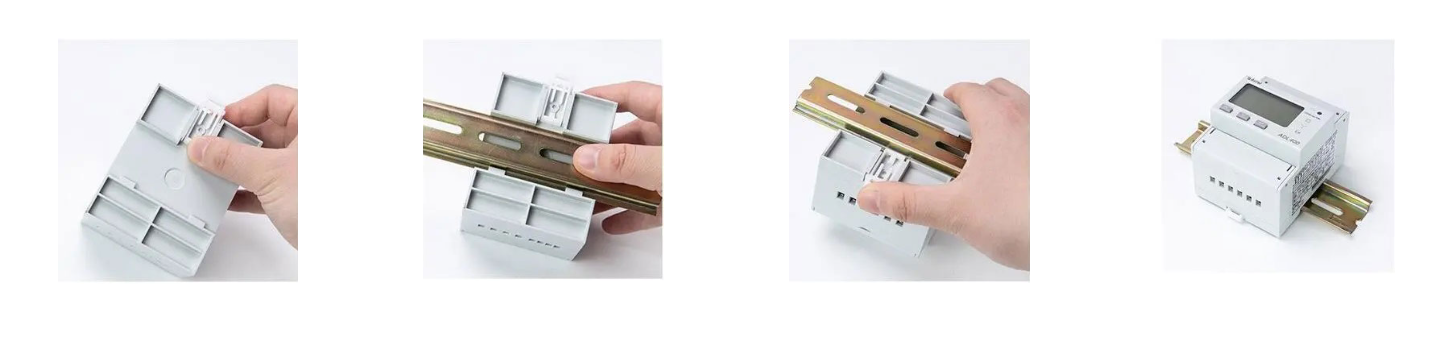

Installation

Network Structure

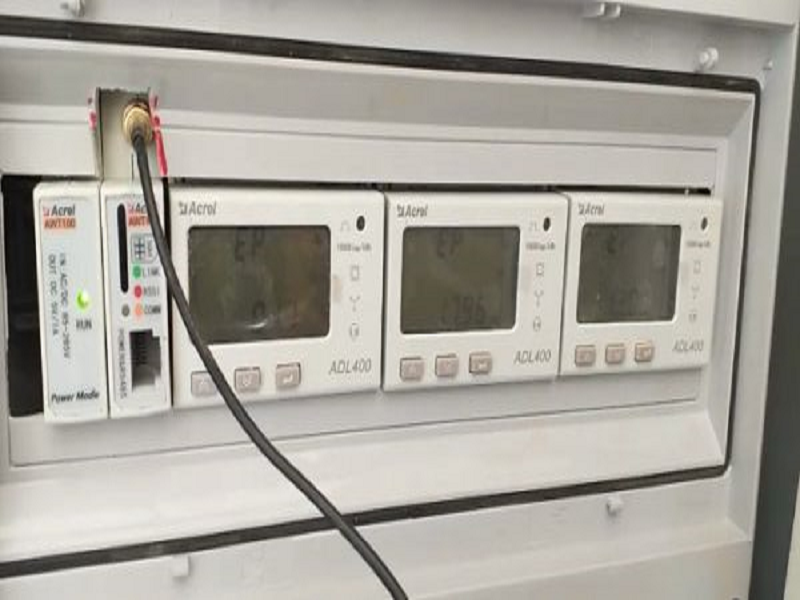

Installation On-Site

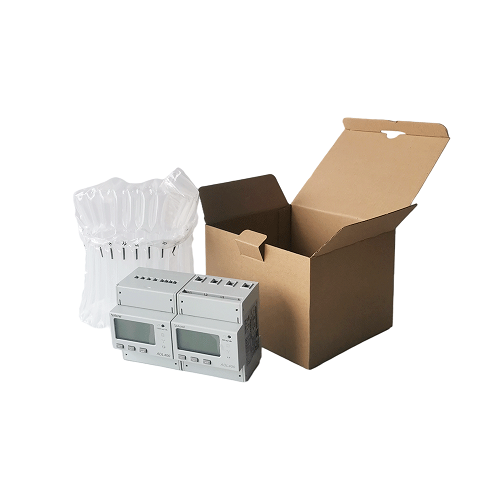

Package

MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg

WHOLE BOX PACKAGE

Package Dimension(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG

PRODUCT HS CODE

9028301400

Related Products

AKH-0.66/K-Φ Split Core Current Transformer For Cable

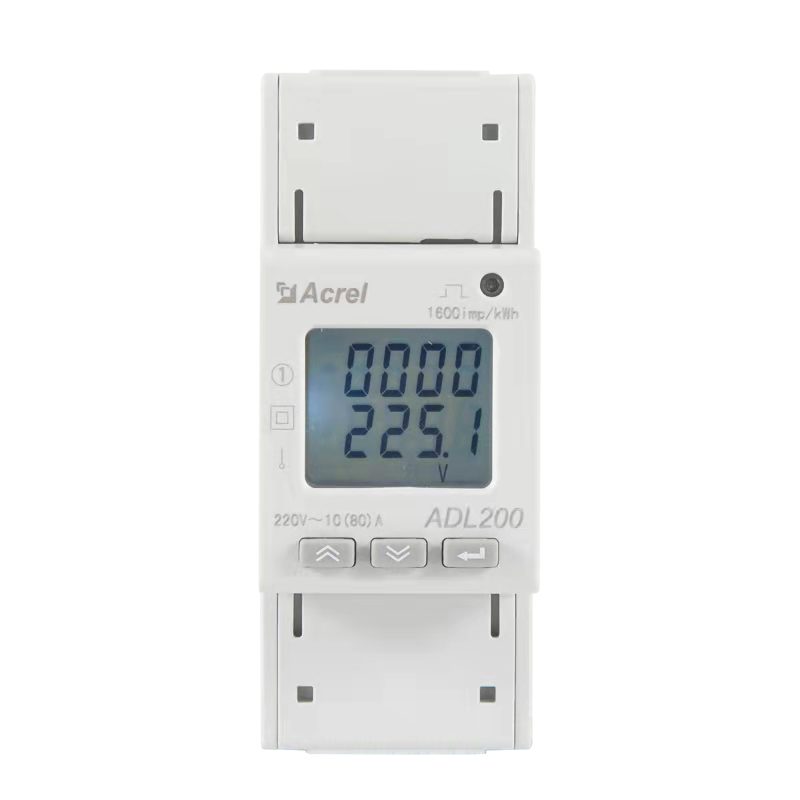

ADL200 Single Phase Din Rail Energy Meter
DTSD1352-C Din Rail Three Phase Energy Meter
ADL3000-E Three Phase Din Rail Energy Meter

Data Sheet

Function Description List

Function	Function description	Function provide
Measurement of kWh	Active kWh (positive and negative)	■
	Reactive kWh (positive and negative)	■
	A. B, C split phase positive active energy	■
Measurement of electrical parameters	U、I	■
Measurement of electrical parameters	P、Q、S、PF、F	■
Measurement of harmonics	2~31ST Voltage and current harmonic	■
LCD Display	12 bits section LCD display, background light	■
Key programming	3 keys to communication and set parameters	■
Pulse output	Active pulse output	■
Multi-tariff and functions	Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates	□
	Max demand and occurrence time	□
	Frozen data on last 48 months, last 90days	□
	Date, time	□
Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU	■

Technical Parameter Descriptions

Project			Performance parameter
Specification			3 phase 3 wires, 3 phase 4 wires
Measurement	Voltage	Reference voltage	3×100V\3×380Vac、3×57.7/100Vac、 3×220/380Vac (Can normally work under 1.2 times of rated voltage)
		Consumption	<10VA(Single phase)
		Impedance	>2MΩ
		Accuracy class	Error±0.2%
	Currnt	Input current	3×1(6)A， 3×10(80)A
		Consumption	<1VA Single phase rated current
		Accuracy class	Error±0.2%
	Power		Active, reactive, apparent power, error±0.5℅
	Frequency		45～65Hz，Error±0.2%
Metering	Energy		Active energy(Accuracy class: 0.5) reactive energy(Accuracy class 2)
	Clock		≤0.5s/d
Digit signal	Energy pulse output		1 active photocoupler output
Pulse	Width of pulse		80±20ms
	Pulse constant		400imp/kWh,10000imp/kWh(Correspond with the basic current)
Communication	Interface and communication protocol		RS485：Modbus RTU
	Range of Communication address		Modbus RTU:1~ 247；
	Baud rate		1200bps~19200bps
Environment	Working temperature		-25℃~+55℃
	Relative humidity		≤95℅(No condensation)
