ADL300-EYRF Three Phase IC Card Prepaid Energy Meter

Home > Products > Energy Management > ADL Series Prepaid Energy Meter > ADL300-EYRF Three Phase IC Card Prepaid Energy Meter

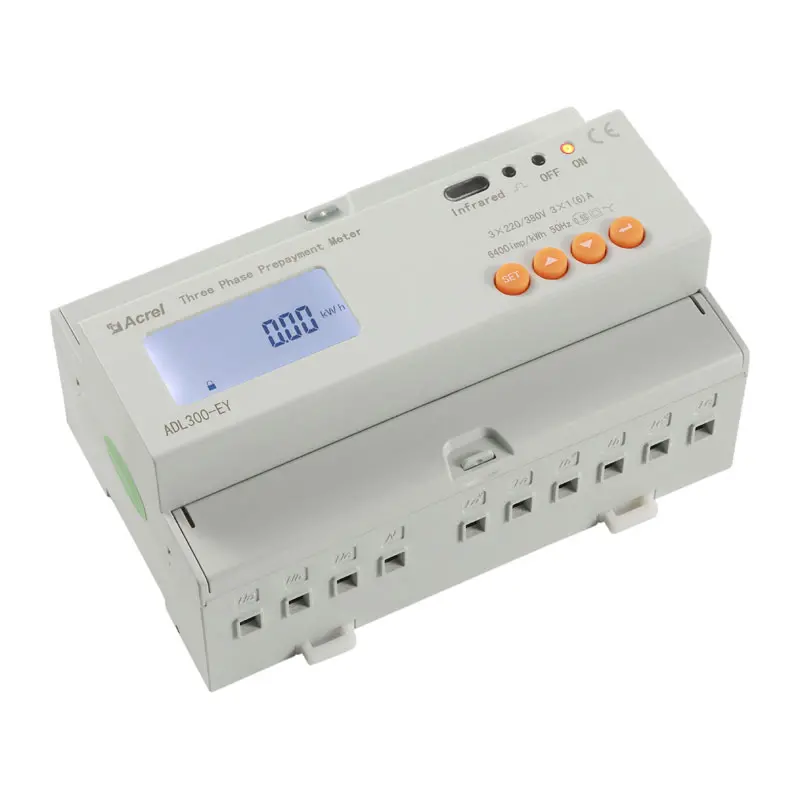

ADL300-EYRF Three Phase IC Card Prepaid Energy Meter

ADL300-EYRF three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Frequency:50/60Hz(Optional), Range: 45~65HZ
Auxiliary power supply(self supply):220Vac(L-N), range:154~264V AC
Real-time and maximum demand
Prepaid mode:prepaid recharge,data encryption
Measurement:U,I,P,Q,S,PF,Hz
LCD display
Accuracy of Active power: 0.5s
RS485/Modbus

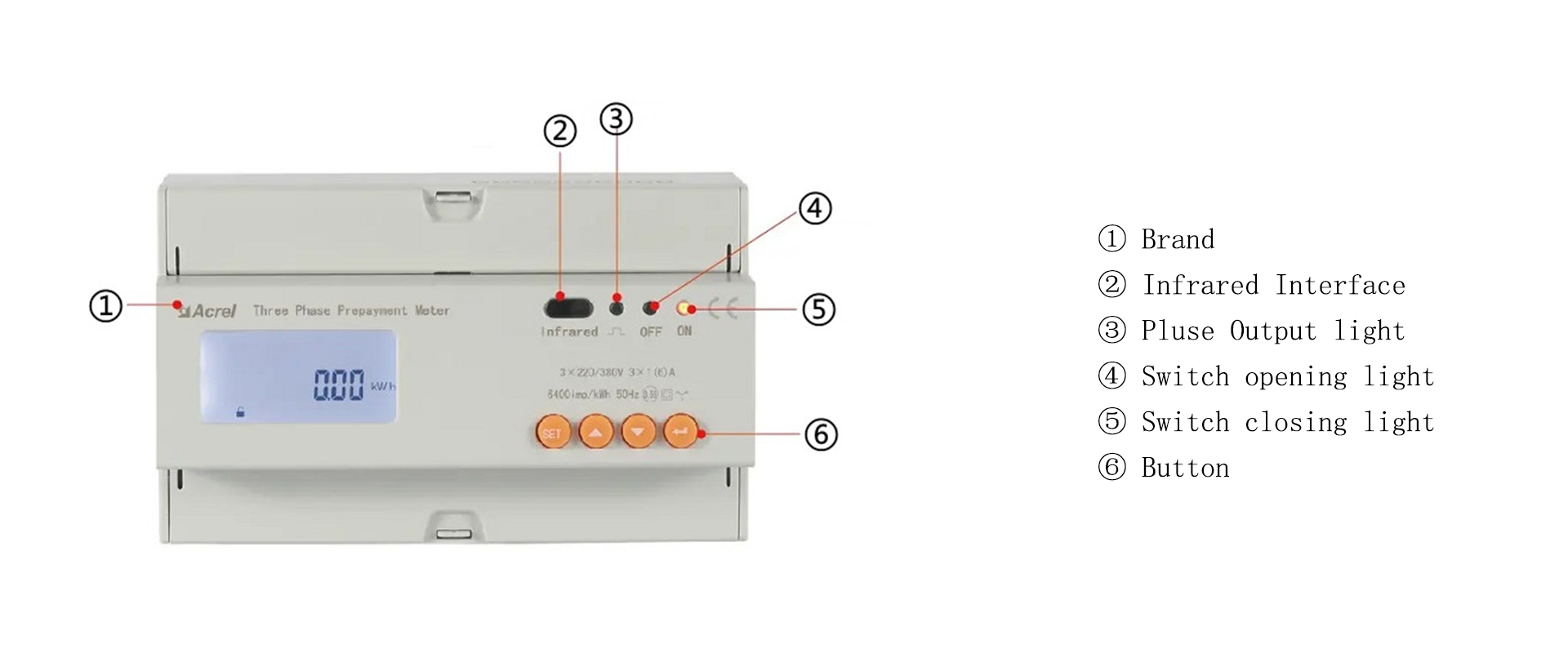

Panel Features

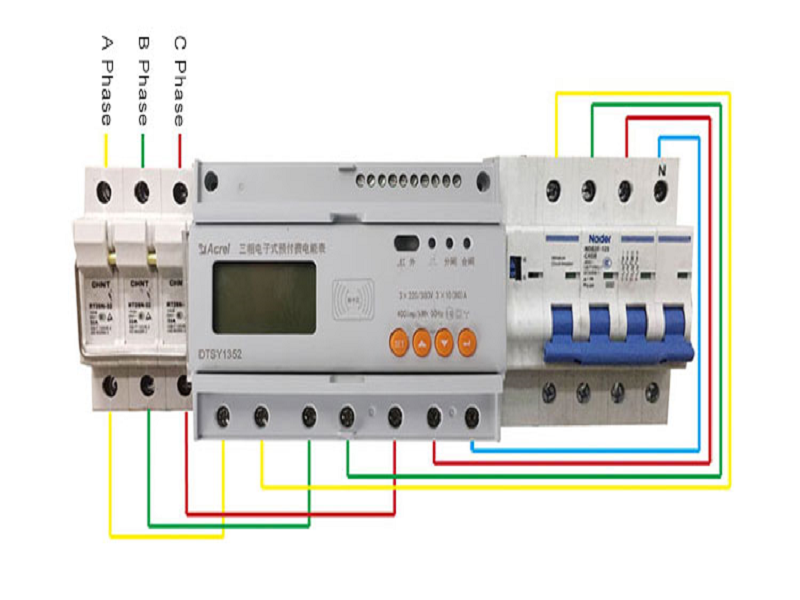

Wiring

Installation

Network Structure

Installation On-Site

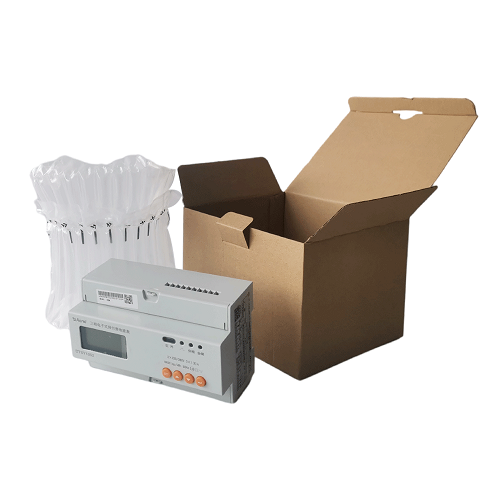

Package

MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.372Kg

WHOLE BOX PACKAGE

Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

14.5kG

PRODUCT HS CODE

9028301400

Related Products

ADL100-EYZ Three phase Prepaid Energy Meter
ADF400L-EY Multi Channel Prepaid Energy Meter
AMC96L-E4/KC Three Phase AC Multi-function Panel Energy Meter
AWT100-4G Wireless Communication Terminal

Data Sheet

Technical Parameters

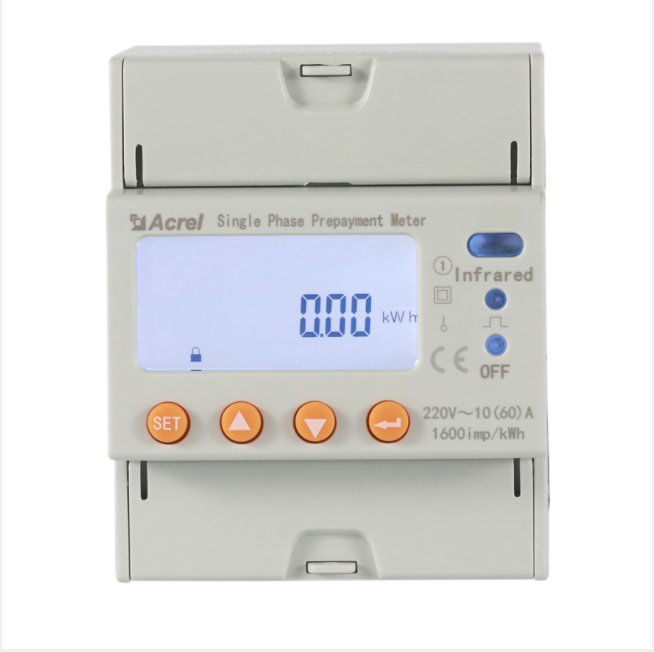

Technical parameters		ADL100-EY	ADL300-EY
Voltage	Nominal voltage	220V	3*220/380V
	Nominal frequency	50/60Hz
	Consumption	＜4VA(Each phase)
Current	Maximum current	60A	6A,80A
	Starting current	Connect directly:0.04A,connect via CT:0.002A
	Consumption	＜4VA(Maximum current)
Measurement performance	Accuracy	Class 1	Class 0.5s
Clock	Accuracy	Error ≤0.5
Active pulse	Width	80ms±20ms
	Constant	1600imp/kWh	6400imp/kWh
Communication	Interface	RS485
	Protocol	MODBUS-RTU
Temperature range	Operating	-25℃ ～55℃
	Storage	-40℃ ～70℃
Humidity		≤95%（No condensation）
Altitude		≤2000m
