ADL100-ET Din Rail Energy Meter With CT

Home  >  Products  >  Energy Management  >  ADL Series DIN Rail Energy Meter  >  ADL100-ET Din Rail Energy Meter With CT

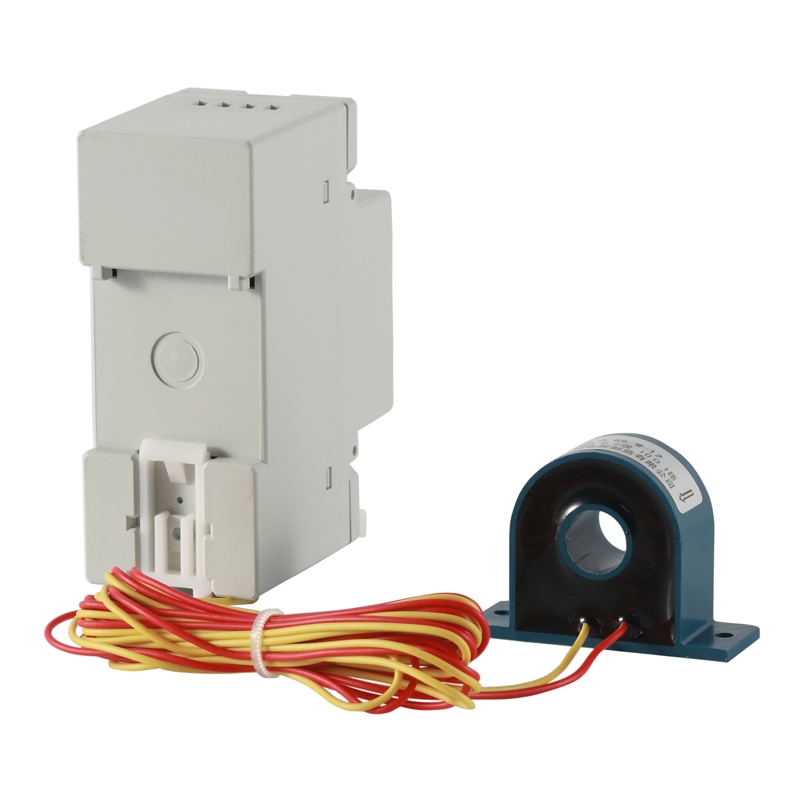

ADL100-ET Din Rail Energy Meter With CT

ADL100-ET din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Measurement of kWh,Single-phase active kWh (positive and negative)
  • Measurement of electrical parameters:U、I、P、Q、S、PF、Hz
  • Maximum current:60A directly connect, 100A with CTs
  • LCD Display,8 digits
  • Active Pulse:1600imp/kWh，LED
  • LCD display
  • Accuracy of Active power: class 1
  • RS485/Modbus-RTU

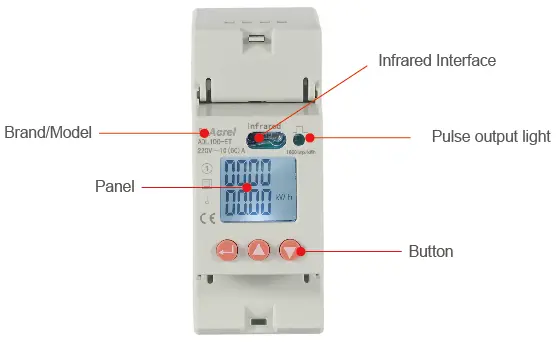

Panel Features

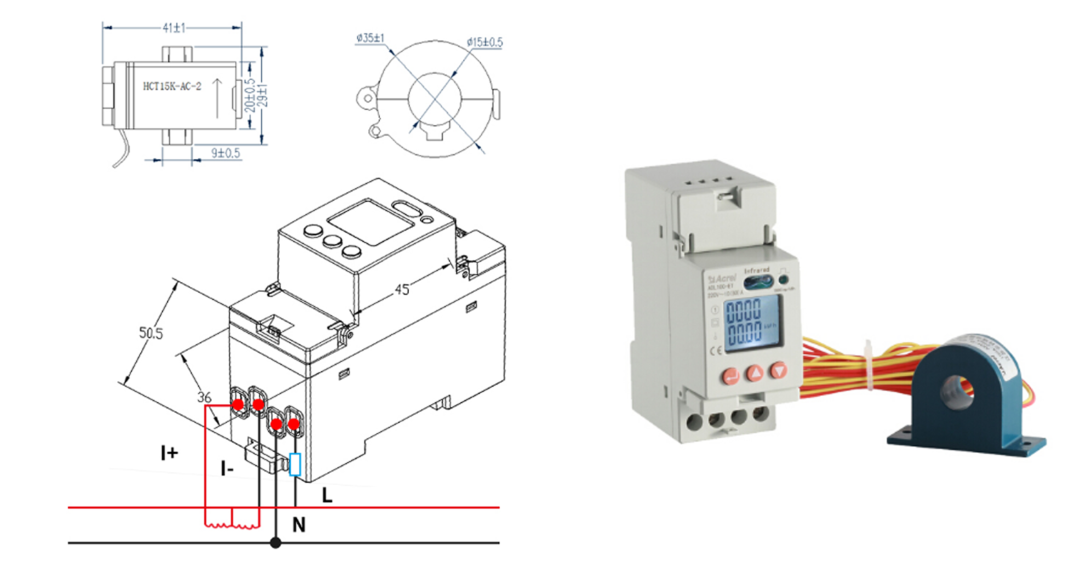

Wiring

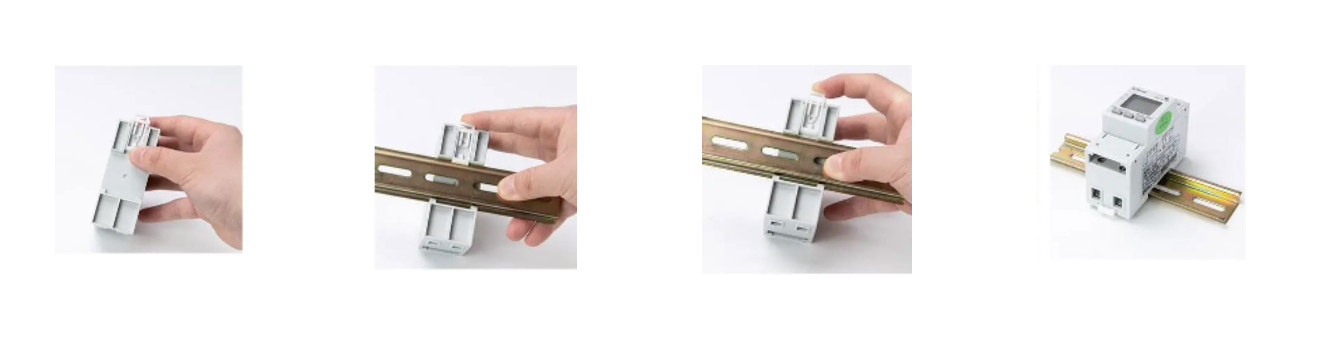

Installation

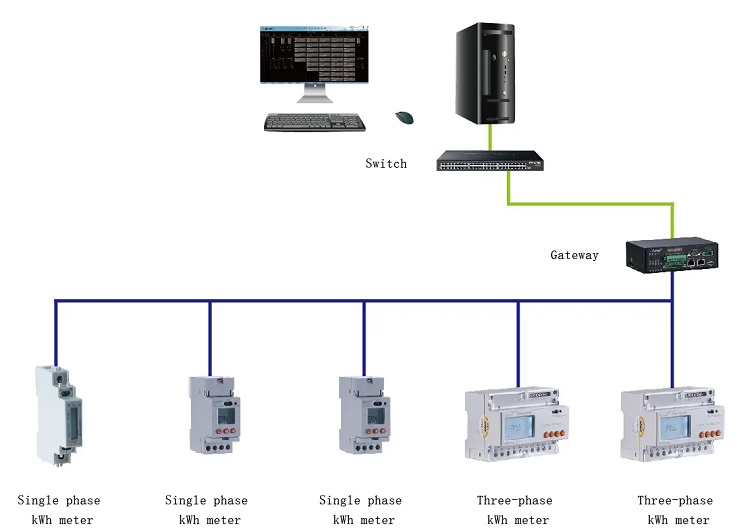

Network Structure




Installation On-Site

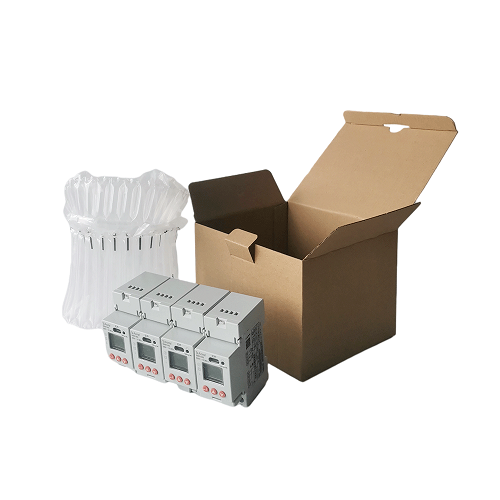

Package



MINIMUM PACKAGE





MINIMUM PACKAGE



Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.136Kg



WHOLE BOX PACKAGE



Package Dimension(36 PCS)

480*460*200mm

Package Weight(36 PCS)

2.304kG



PRODUCT HS CODE



 9028301400



Related Products
  • AKH-0.66/K-Φ Split Core Current Transformer For Cable
  • ADL200 Single Phase Din Rail Energy Meter
  • ADL400 Three Phase Din Rail Energy Meter
  • ADL3000-ET/CT Three Phase Energy Meter With CTs
  •
  •
  •
Data Sheet
Functions





Function

Function description

Function provide

Measurement of kWh

Single-phase active kWh (positive and negative)

■

Measurement of electrical parameters

Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency

■

LCD Display

8 bits section LCD display

■

Key programming

3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol

■

Pulse output

Active energy pulse output

■

Multi-tariff

Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates

□F

Communication

Communication interface: RS485, Communication protocol: MODBUS-RTU

□C

Infrared communication

■

( ■： means standard; □： means optional)



Techinical Parameter



Input voltage

Reference voltage

AC 220V

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A / 20A

Maximum current

60A / 100A

Starting current

4‰Ib

Consumption

<4VA (Maximum current)

Measurement performance

Accuracy of measuring

1class

Range of measuring

000000.00~99999999kWh

 Clock accuracy

Error≤0.5s/d

Active pulse

 Pulse width

80±20ms

 Pulse constant

1600imp/kWh，LED

Communication

Interface

RS485(A+、B-)

Connection mode

Shielded twisted pair conductors

Protocol

MODBUS-RTU



Temperature range

 Work temperature

-25℃~55℃

 Storage Temperature

-40℃~70℃

 Relative humidity

≤95%(No condensation)

 Altitude

<2000m
