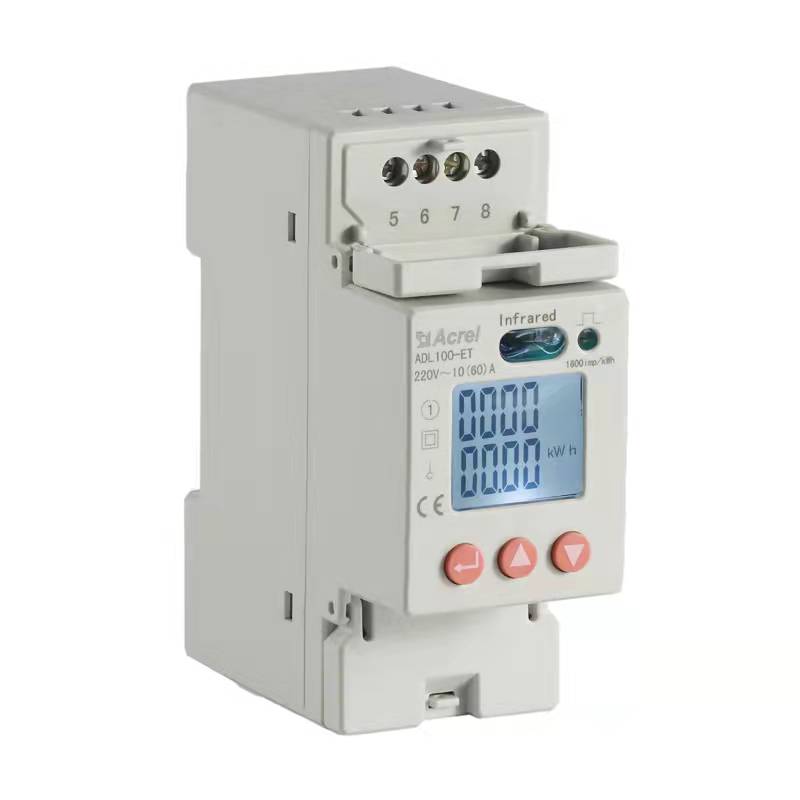

ADL10-E Single Phase Din Rail Energy Meter

Home  >  Products  >  Energy Management  >  ADL Series DIN Rail Energy Meter  >  ADL10-E Single Phase Din Rail Energy Meter

ADL10-E Single Phase Din Rail Energy Meter

ADL10 din rail energy meter can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.



8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Measurement of kWh,Single-phase active energy (positive and negative)
  • Measurement of electrical parameters:U、I、P、Q、S、PF、Hz
  • LCD display,8 digits
  • Nominal frequency:50/60HZ
  • Maximum current:60A
  • LCD display
  • Accuracy of Active power: Class 1
  • RS485/Modbus

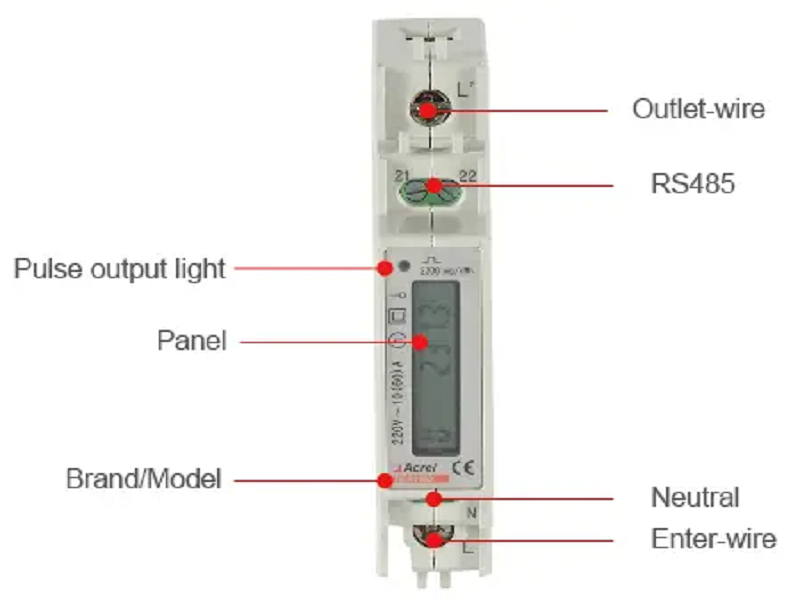

Panel Features

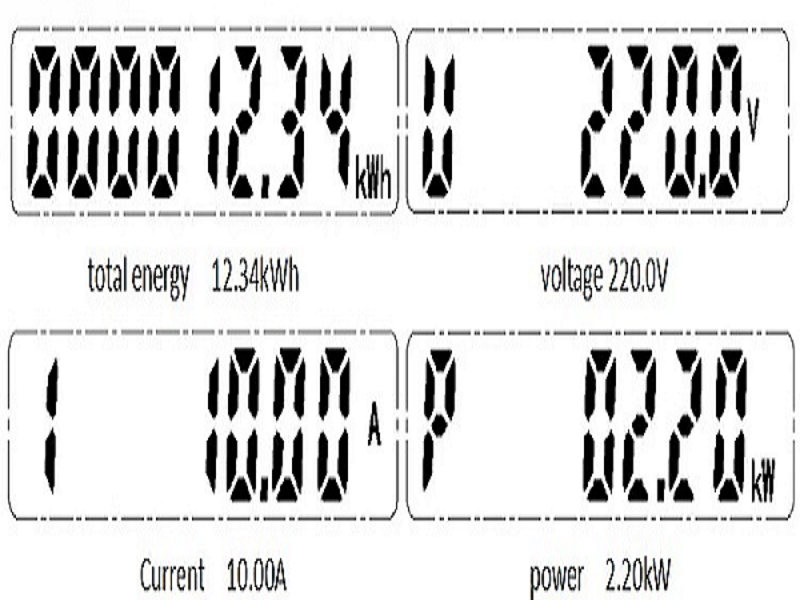

Display

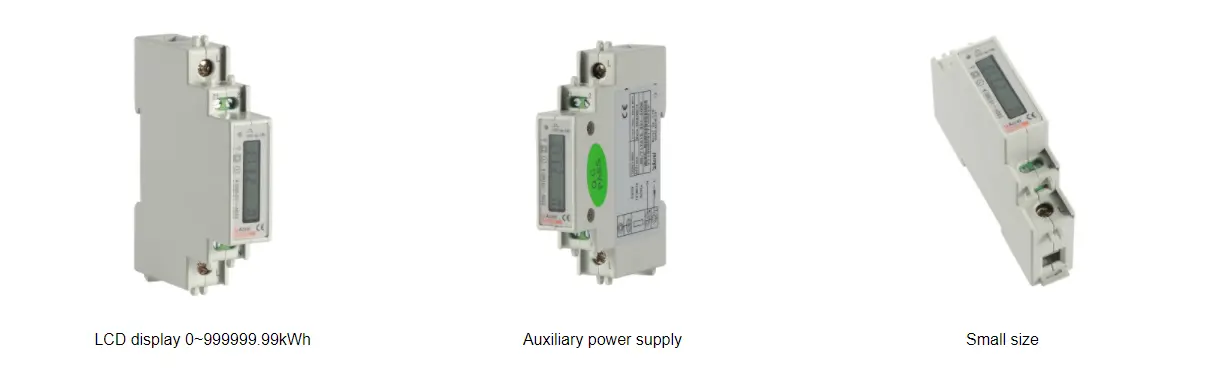

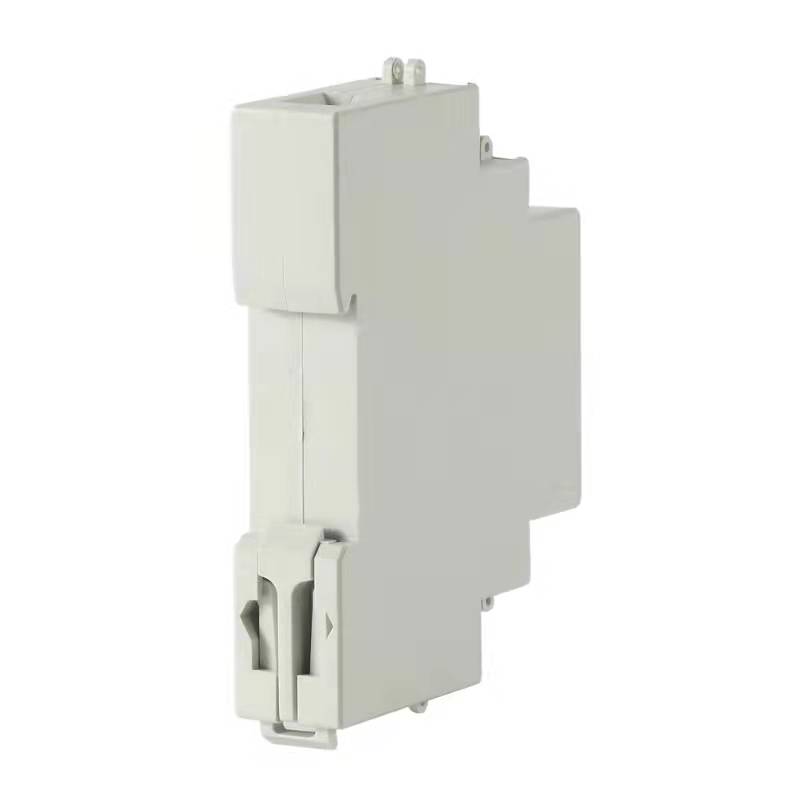

Appearance


Network Structure





Related Products
  • AKH-0.66/K-Φ Split Core Current Transformer For Cable
  • ADL200 Single Phase Din Rail Energy Meter
  • DDSD1352-C Single Phase Din Rail KWH Energy Meter
  • ADW300 IoT Wireless Energy Meter
  •
  •
  •
  •
Data Sheet
Main Functions



Function

Function description

Function provide

Measurement of kWh

Single-phase active kWh (positive and negative)

■

Measurement of electrical parameters

Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency

■

LCD Display

8 bits section LCD display

■

Communication

Communication interface: RS485, Communication protocol: MODBUS-RTU

□C



Technical Parameters



Input voltage

Reference voltage

AC220V

Reference frequency

50Hz

Power consumption

<10VA

Input current

Basic current

10A

Maximum current

60A

Starting current

0.004Ib

Consumption

<4VA  (Maximum current)

Measurement performance

Accuracy of measuring

1 Class

Range of measuring

000000.00~999999.99kWh

Communication

Interface

RS485(A+、B-)

Connection mode

Shielded twisted pair conductors

Protocol

MODBUS-RTU
