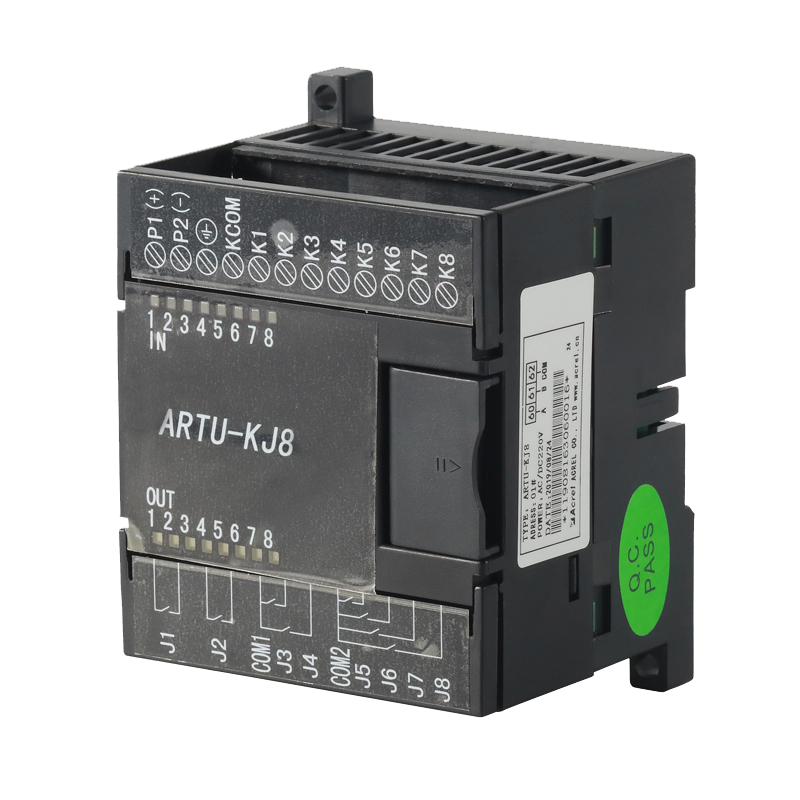

ARTU-KJ8 Remote Terminal Unit

Home  >  Products  >  Power Monitoring & Protection  >  ARTU-KJ8 Remote Terminal Unit

ARTU-KJ8 Remote Terminal Unit

ARTU-KJ8 remote communication& control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • RS485 (MODBUS -RTU)
  • Frequency：≤500HZ
  • Channel state indicator and communication state indicator
  • 24VDC (±10%); 220VAC, allow AC/DC 85~265V
  • Power consumption：24VDC(±10%); 220VAC, allow AC/DC 85~265V
  • Installation:Din rail 35mm
  • Switch Relay:Power relay

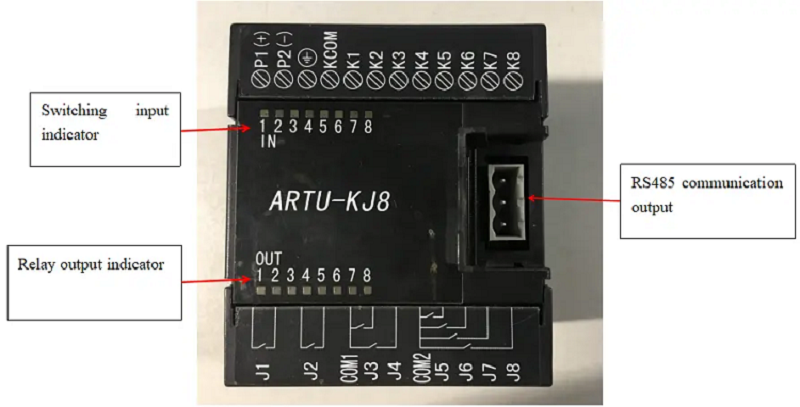

Panel Features





Wiring



Installation

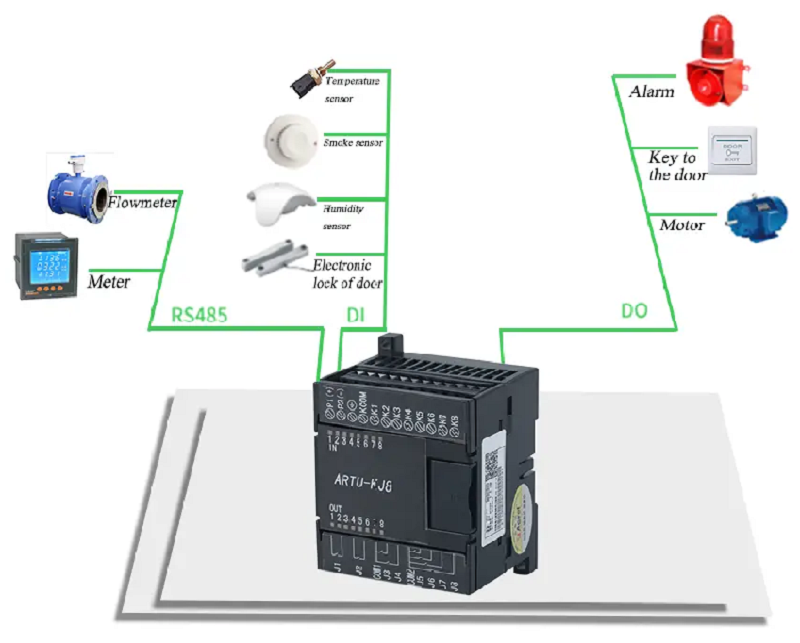

Network Structure



Installation On-Site





  •
Related Products
  • PZ72L-E4 Three phase Energy meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • APM830 Three Phase Power Quality Analyzer
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Major Characteristics

PQWER SUPPER

AC/DC 85-265V 、 DC48V

POWER CONSUMPTION

≤9W (excluding modules); ≤15W (including modules, up to 3 modules)

MODEL

ARTU100-K32

32-path DI (active/passive, optional)

ARTU100-K16

16-path DI (active/passive, optional)

ARTU100-KJ8

8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A;

COMUMICATION

485 communication

RS485 interface

2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps

OTHER

Dial switch

10 bits

Indicator light

20 indicator lights
