ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring Energy Meter

Home > Products > Photovoltaic Energy Meter > ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring Energy Meter

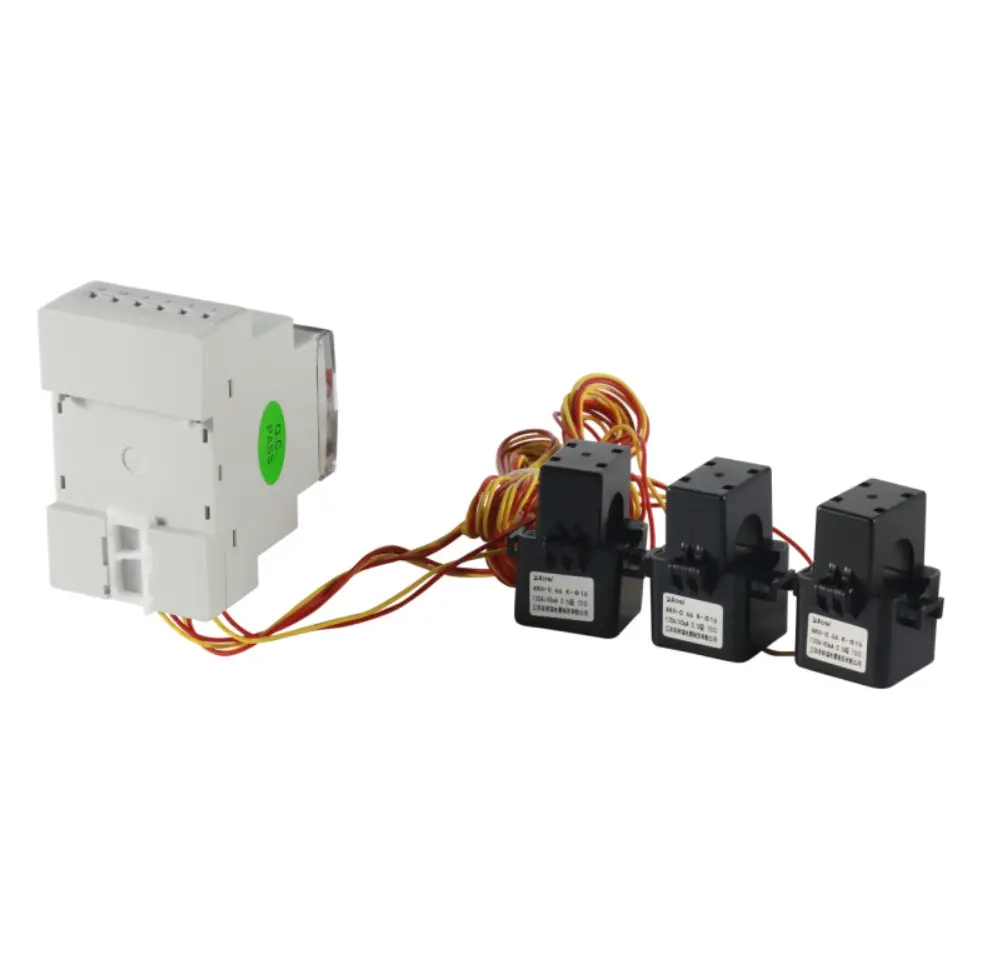

ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring Energy Meter

The guide-rail harmonic meter with external roche coil and open type mutual inductor is suitable for energy saving
renovation projects in high energy consumption industries such as smelting,steel,electric welding,semiconductor,etc.And
also for power monitoring of distributed photovoltaic grid-connected cabinet,power demand side management and other
applications.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Major Characteristics

Measurement:3-phase Active Power, Reactive Power, Current, Voltage and etc
Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
Application: Using in distributed Solar PV and Anti-reflux Inverter
Standard&Certificate:UL1741;TUV
Application: Using in distributed Solar PV and Anti-reflux Inverters
Communication:RS485 (MODBUS-RTU)
Power Supply: 85~265V AC or 100~350V DC

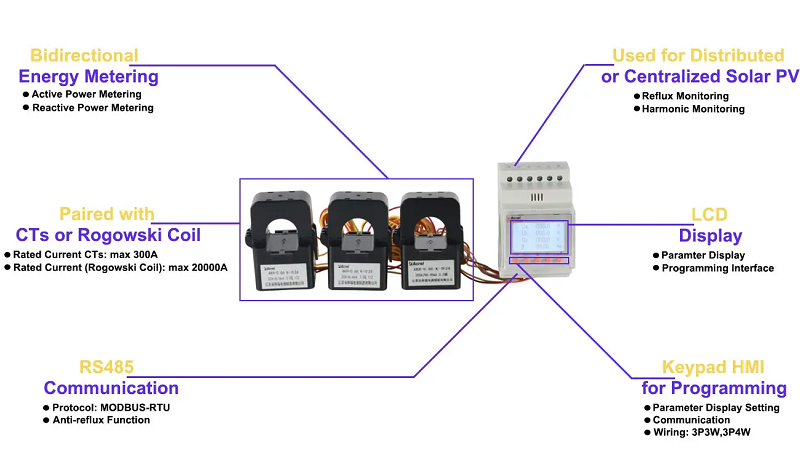

Panel Features

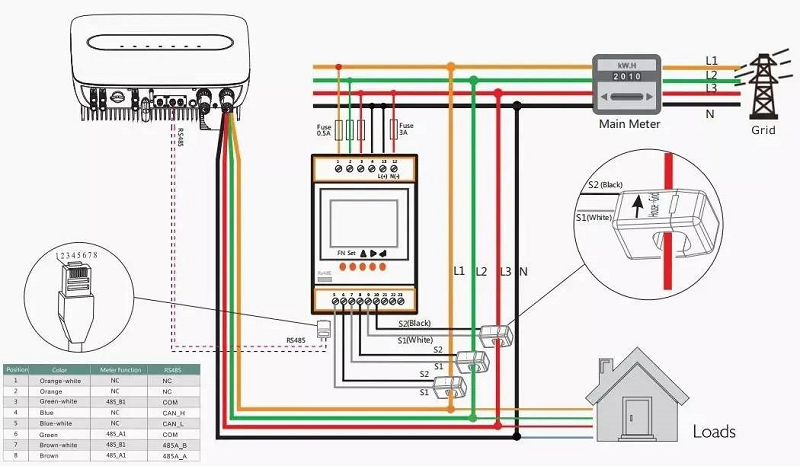

Wiring

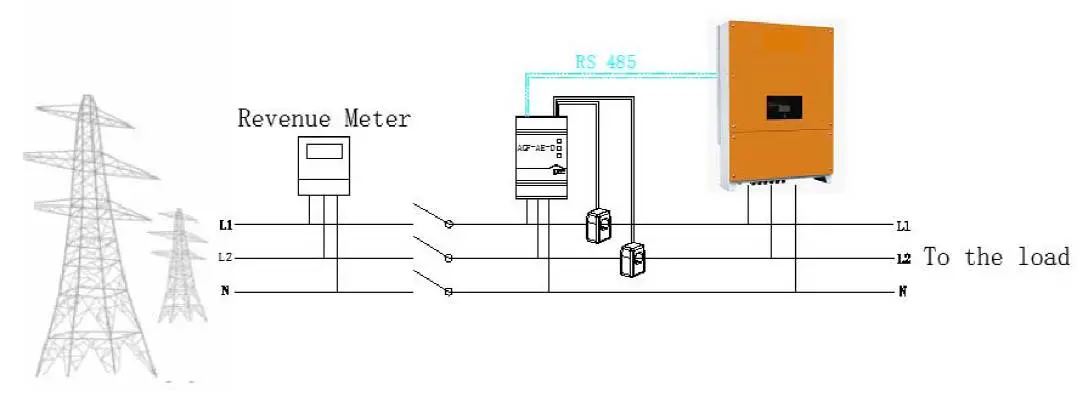

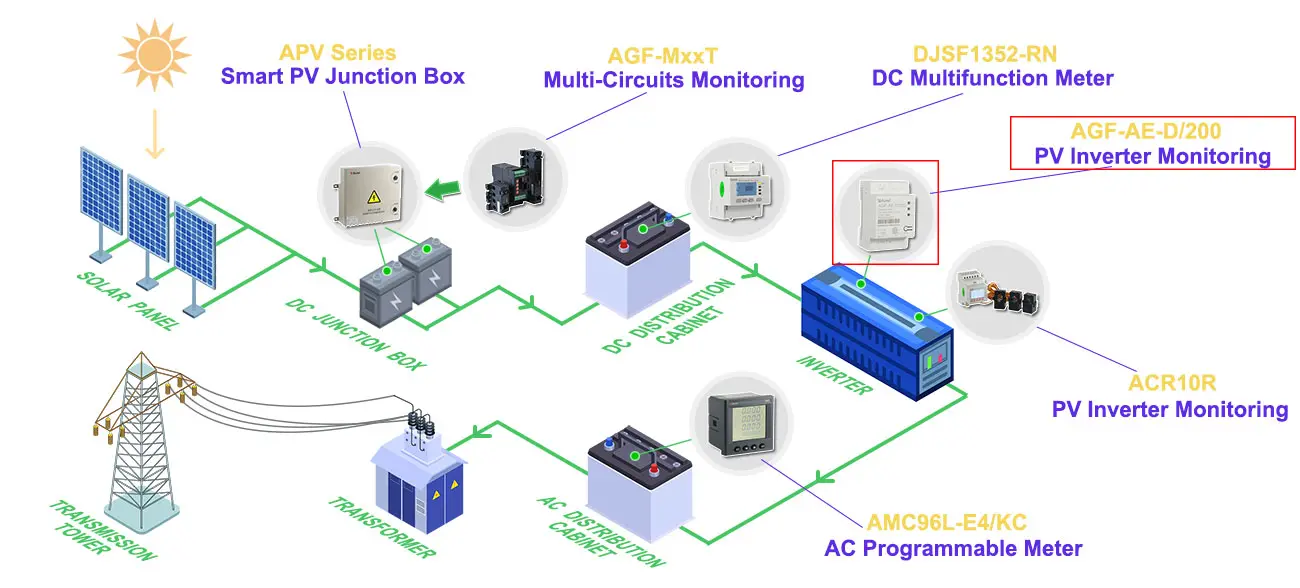

Application

Installation Sturcture

Related Products

PZ72L-E4 Three phase Energy meter
ADF400L-EY Multi Channel Prepaid Energy Meter
APM830 Three Phase Power Quality Analyzer
AWT100-4G Wireless Communication Terminal

Data Sheet

Major Characteristics

Function/Model		ACR10RH-DxxT(R)E4 ACR10RH-DxxT(R)E3
Display mode	LCD（Field LCD）	■
Measuring parameter	Current/voltage/frequency/power facto	■
	Active power/reactive power/apparent power	■
	Four quadrant electric energy measurement	■
	Maximum demand	□
	Multiple rate electric energy measurement	□
Power quality monitoring	Total harmonic content	■
Power quality monitoring	subharmonic（2-31 times）	■
Data logging	Incident record	□
Display mode	Alarm	□
Display mode	Built-in clock	□
Communication	RS485 interface	■
Optional function (choose one)	J（2DO）	A1+（B1 or C1） (4DI+2DO or 4DI+EP)*
	K（4DI）
	pulse（2channels）

Note:

1、“■”is standard allocation function，“□”is matching function，Above instrument stanfard 1 channel RS485 communication；

2、Terminal connection mode corresponding to A1/B1/C1 and so on in selection function；

3、Pulse output and relay output can not be selected at the same time;

4、When you select an event loggong feature,you must configure the DI or DO

Technical Parameters

Technical parameters			Indicators
Input	Net work		3-phase 3-wire,3-phase 4 wire
	Frequency		45～65Hz
	Voltage		Rating：AC 57.7V/100V(100V)、220V/380V(400V)
			Overload:1.2-fold rating(continuous);2-fold rating/1second
			Consumption:<0.2VA
	Current		Rating： 80A，120A，200A .etc（See specific product specifications,special parameters can be customized）
			Overload:1.2-fold rating(continuous);10-fold rating/1 second
			Consumption:＜ 0.2VA
Output	Electric energy		Output mode:Open-collector photocoupler pulse,two way output
			Three-phase	Pulse constant:4000、8000imp/kWh
	Communication		RS485 interface,Modbus-RTU Protocol
	Display mode		LCD
Function	Switching	Input	Four way dry contact input
		Output	Output mode: two way relay nO contact output
			Contact capacity：AC 250V/3A、DC 30V/3A
Measuring accuracy			Frequency0.05Hz、reactive electric energy1class、other 0.5class
Power supply			AC85～265V or DC100～350V；DC24V（±10%）；DC48V（±10%） Consumption≤10VA
Safety	Insulation resistance		Input,Output terminal to housing>100MΩ
Environment			Working temperature：-10℃～+55℃；Storage temperature：-20℃～+70℃ Relative humidity：5%～95% No condensation；Altitude：≤2500m
