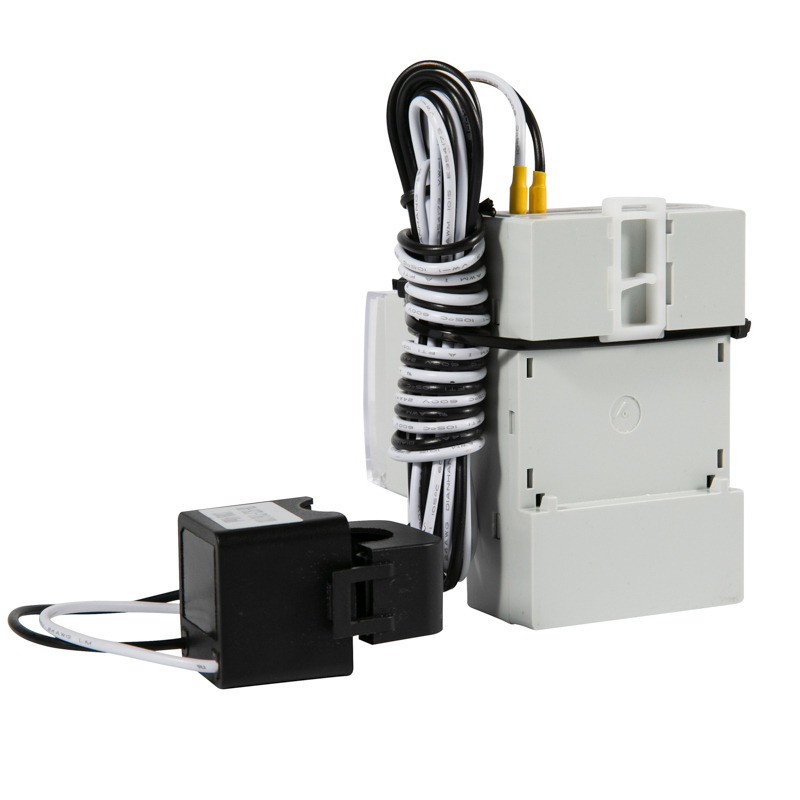

ACR10R-D16TE PV Inverter Energy Meter

The guide-rail harmonic meter with external roche coil and open type mutual inductor is suitable for energy saving renovation projects in high energy consumption industries such as smelting,steel,electric welding,semiconductor,etc.

8618761593924

Lukas.lu@email.acrel.cn

8618761593924

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Major Characteristics
  • Single phase three wire
  • Rated voltage: AC 120V/208V，240V(88%~110%)
  • Rated voltage: AC 100V or 400V
  • Rated current:AC 80A
  • Application: Using in distributed Solar PV and Anti-reflux Inverters
  • Communication:RS485 (MODBUS-RTU)

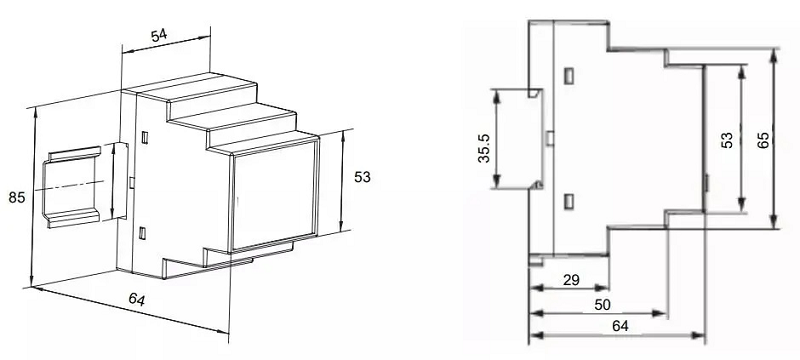

Dimension

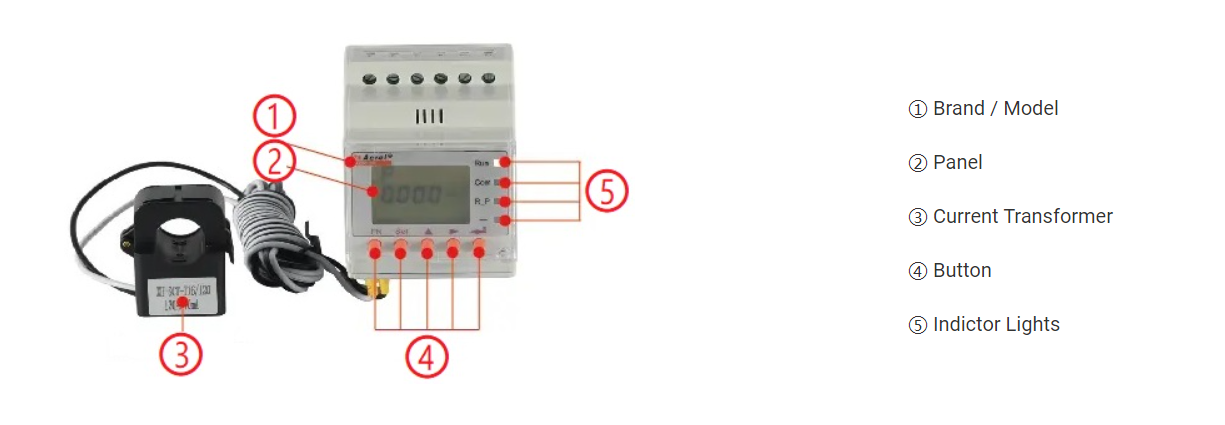

Panel Features



Wiring


Application




Installation Sturcture





Related Products
  • PZ72L-E4 Three phase Energy meter
  • ADF400L-EY Multi Channel Prepaid Energy Meter
  • APM830 Three Phase Power Quality Analyzer
  • AWT100-4G Wireless Communication Terminal
  •
  •
  •
Data Sheet
Major Characteristics



Technical parameters

Indicators

Input

Grid

Single-phase

Frequency

45～65Hz

Voltage

Rated voltage: AC 100V, 400V

Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second

Power consumption: less then 0.2VA

Current

Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)

Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second

Power consumption: less then 0.2VA





Output

Communication

RS485 interface, Modbus-RTU

Display

LCD

Measurement precision

Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level

Power supply

AC85～265V or DC100～350V; power consumption ≤10VA







Safety

Power frequency withstand voltage

AC2kV 1 min between power supply // current input//voltage input and communication

AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.

Insulating resistor

Input,output terminal to housing >100MΩ

Environment

Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃

Relative humidity:5%～95%，non-condensing; altitude:≤2500m
